CYLINDER HEAD
SP600 1985 (F) USA (E03)

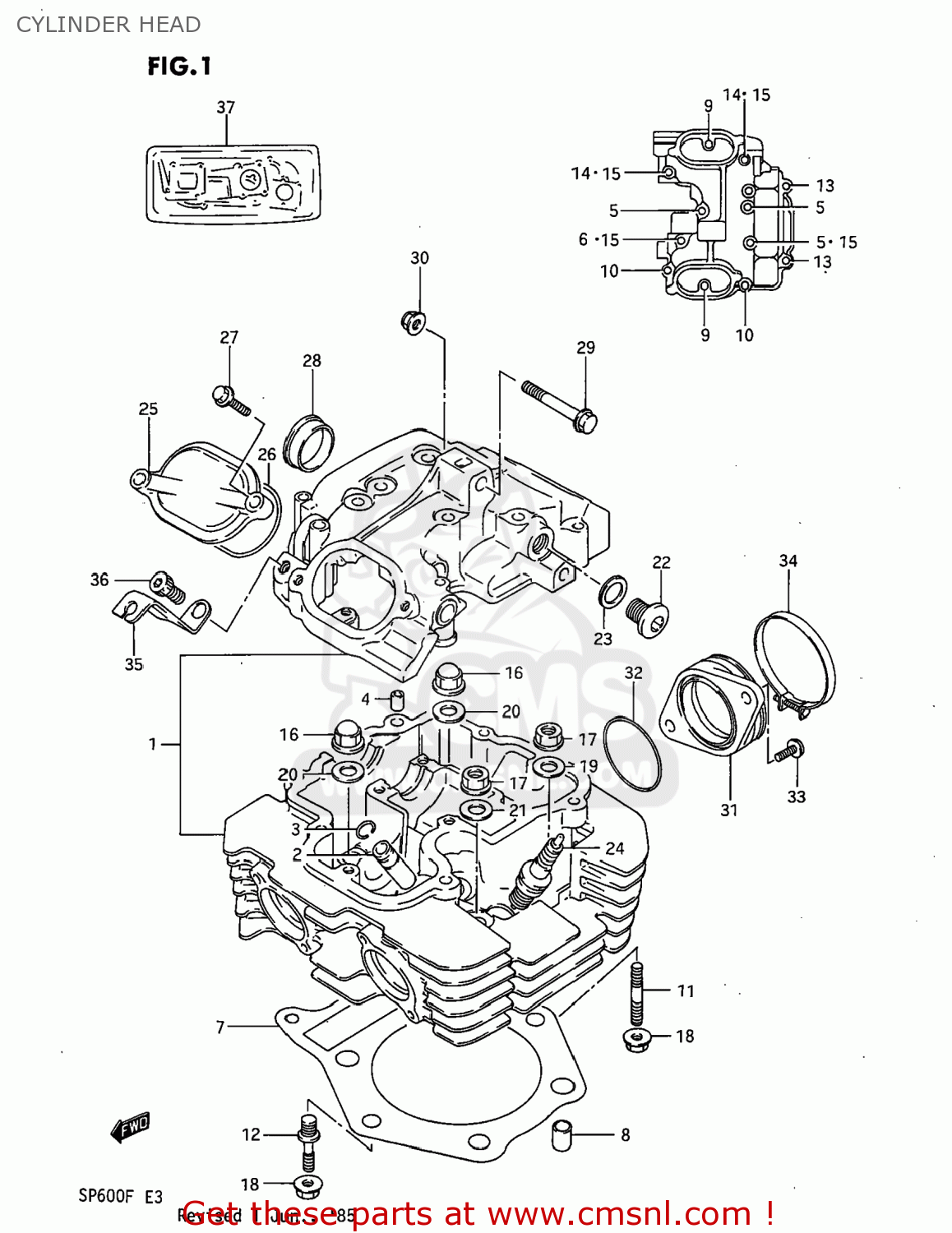

Cylinder head diagram SP600 1985 (F) USA (E03)
CYLINDER HEAD SP600 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110014A01
ref: 1
11100-14A03
HEAD ASSEMBLY,CYLINDER
€ 804.50
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706608
ref: 5
01550-06607
BOLT (6X60)
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
€ 7.00
7
1114114A01
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 48.00
8
0920613001
ref: 8
04211-13189
PIN
€ 2.50
9
0151706254
ref: 9
01550-0625A
BOLT
€ 2.50
10
0151706404
ref: 10
01550-0640A
BOLT
€ 2.00
11
0910808161
ref: 11
09108-08220
STUD
€ 3.50
12
0910808162
ref: 12
STUD
€ 12.50
13
0910306085
ref: 13
BOLT(6X130)
€ 4.50
14
0151706608
ref: 14
01550-06607
BOLT (6X60)
€ 2.50
15
0916806015
ref: 15
09168-06023
WASHER
€ 2.00
16
0915910026
ref: 16
NUT
€ 6.00
17
0831616105
ref: 17
08316-1010B
NUT
€ 2.00
18
0831616085
ref: 18
08316-1008B
NUT 8MM
€ 3.00
19
0916010039
ref: 19
WASHER(10.5X22X2.3)
€ 2.50
20
0916810017
ref: 20
GASKET(10.5X22X2) (NAS)
€ 3.50
21-1
0916010039
ref: 21-1
WASHER(10.5X22X2.3)
€ 2.50
21-2
0916010093
ref: 21-2
WASHER(10.5X24X2.3)
€ 2.00
22
0924814004
ref: 22
09248-14010
PLUG
€ 5.00
23
0916814004
ref: 23
GASKET(14X19.2X2) (NAS)
€ 2.50
24-1
0948200328
ref: 24-1
09482-00330
SPARK PLUG DP9EA-9
€ 4.00
24-2
0948200329111
ref: 24-2
SPARK PLUG X27EP-U9
€ 4.00
25
1117514A00
ref: 25
11175-12D10
CAP,INSPECTION
€ 16.00
26
0928060004
ref: 26
O RING(D:2.4,ID:23)
€ 4.50
27
0151706254
ref: 27
01550-0625A
BOLT
€ 2.50
28
0924130004
ref: 28
PLUG(OD:30)
€ 6.50
29
0910308082
ref: 29
09103-08395
BOLT 8X50
€ 7.00
30
0831931085
ref: 30
08319-3108A
NUT
€ 2.50
31
1311014A11
ref: 31
13101-14A10
PIPE,INTAKE
€ 38.50
32
0928046002
ref: 32
O RING(D:2.4,ID:45.7)
€ 9.50
33
0215206205
ref: 33
02112-0620A
SCREW
€ 2.00
34
0940258208
ref: 34
CLAMP
€ 5.50
35
1294414A00
ref: 35
LEVER,DECOMP SHAFT RH
€ 6.50
36
0711008165
ref: 36
07130-0816A
BOLT
€ 3.00
37
1140114820
ref: 37
11401-14828
GASKET SET
€ 123.00
