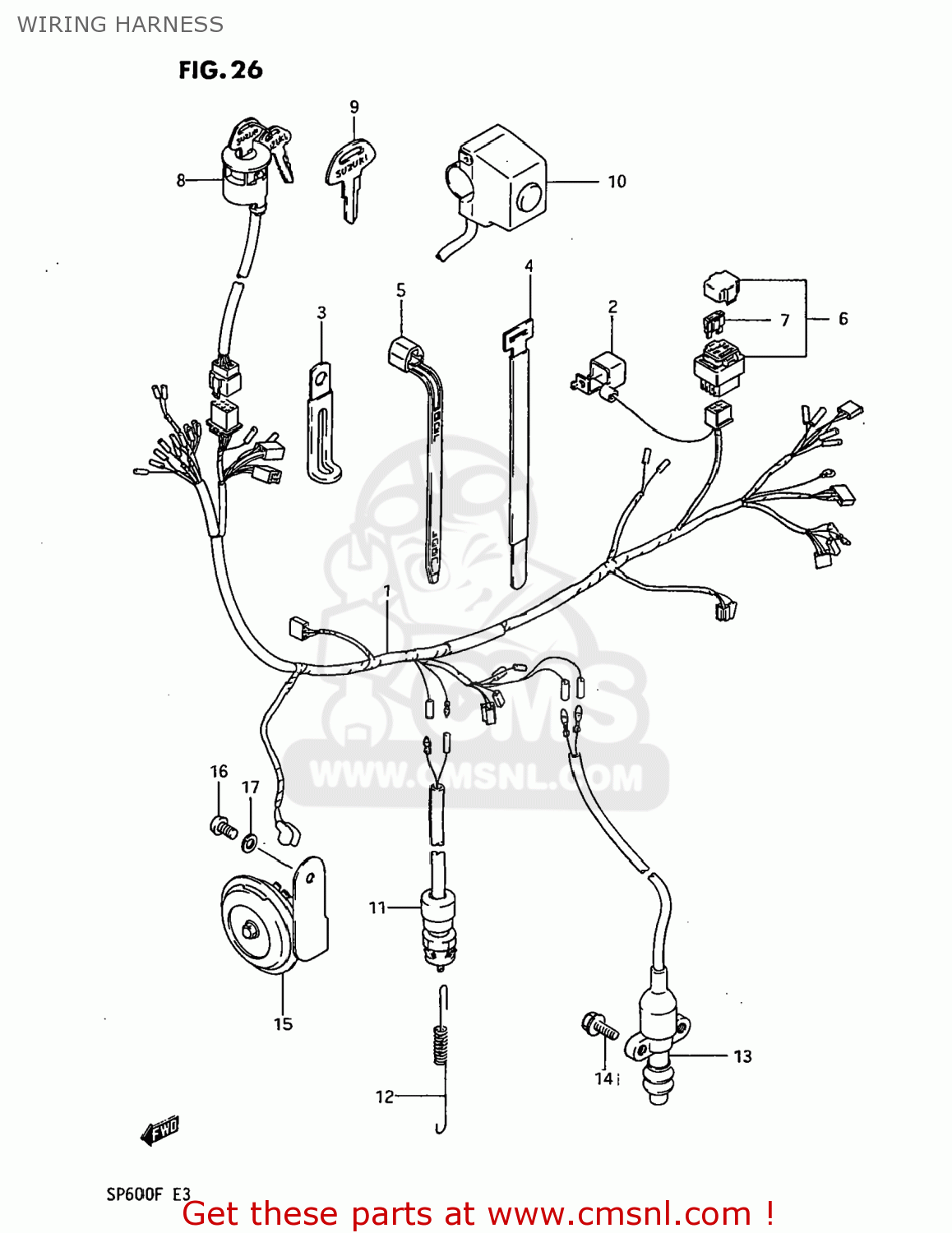

WIRING HARNESS

ref

part #

description

quantity

1

3661014A00
ref: 1

HARNESS,WIRING

€ 0.00

2

3362414A00
ref: 2

CAP,BATTERY PLUS TERMINAL

€ 0.00

3-1

0940406401
ref: 3-1
09404-06432

CLAMP L:35

€ 2.50

3-2

0940408402
ref: 3-2
09404-08420

CLAMP

€ 3.50

3-3

0940408413
ref: 3-3
09404-08420

CLAMP

€ 3.50

3-4

0940406422
ref: 3-4
09404-06429

CLAMP

€ 2.50

4

0940718301
ref: 4

CLAMP

€ 6.00

5-1

0940711401
ref: 5-1

CLAMP(L:95)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6

3674004700
ref: 6
36740-04701

BOX ASSEMBLY,FUSE

€ 16.00

7

0948115101
ref: 7

FUSE(15A)

€ 1.50

8

3711013A00
ref: 8
37110-13A30

SWITCH ASSEMBLY,IGNITION

€ 70.00

9

3714502400
ref: 9
37146-49300

KEY,BLANK

€ 13.00

10

3783013A00
ref: 10

SWITCH ASSY,ENGINE STOP

€ 43.00

11

3774014A00
ref: 11
37740-04A10

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

12

0944306058
ref: 12
09443-06088

SPRING

€ 18.00

13

3784014A01
ref: 13

SWITCH ASSY,SIDE STAND WARN

€ 75.00

14

0151405105
ref: 14

BOLT

€ 2.50

15

3850014A10
ref: 15

HORN ASSY

€ 42.00

16

0211206125
ref: 16
02112-0612A

SCREW

€ 1.50

17

0832121064
ref: 17
08321-0106A

WASHER,LOCK

€ 2.00
