KICK STARTER
SP600 1985 (F) USA (E03)

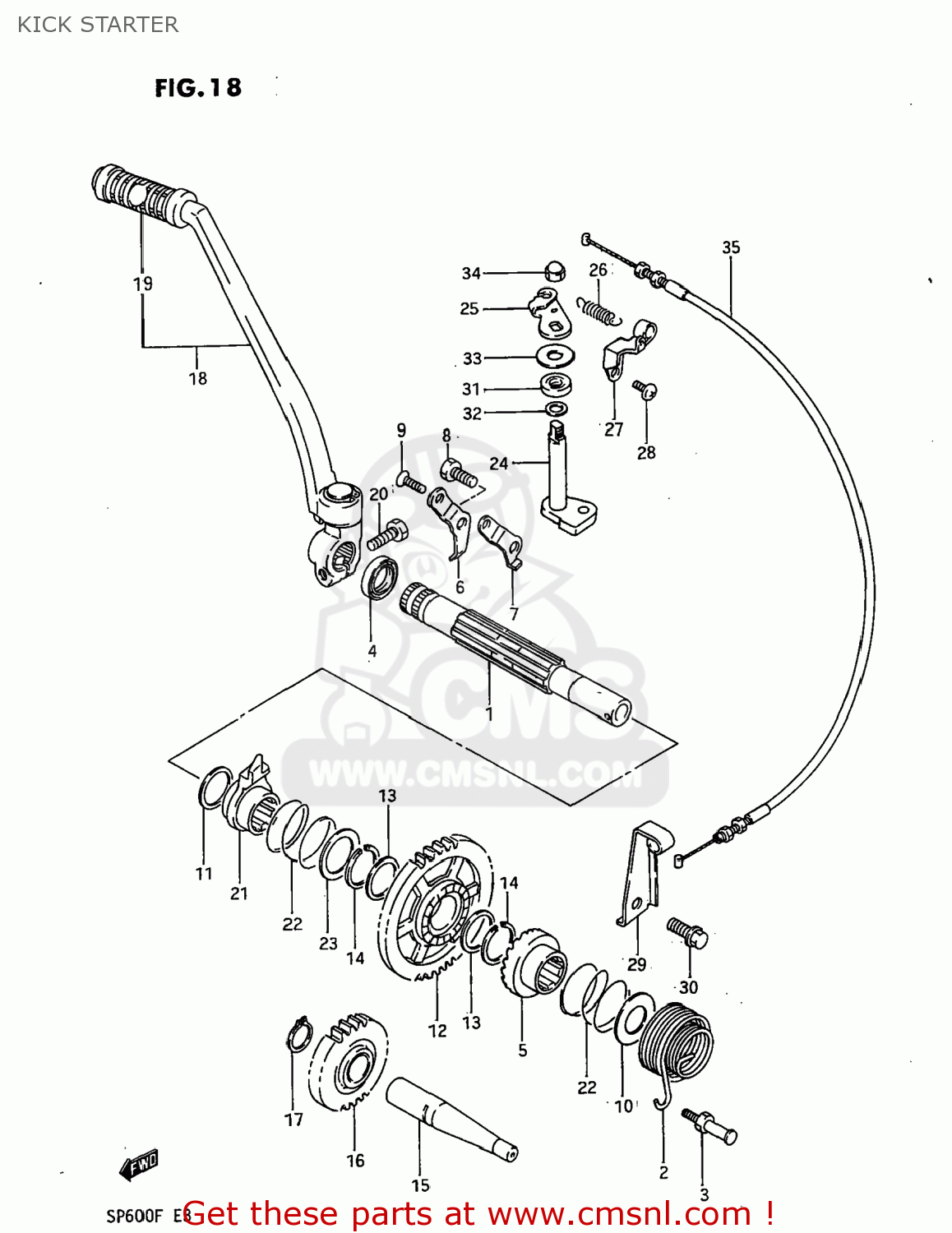

Kick starter diagram SP600 1985 (F) USA (E03)
KICK STARTER SP600 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2621114A00
ref: 1-1
26211-14A02
SHAFT,KICK STARTER
€ 63.00
1-2
2621114A01
ref: 1-2
26211-14A02
SHAFT,KICK STARTER
€ 63.00
2
0944841003
ref: 2
SPRING
€ 17.00
3
2623714500
ref: 3
BOLT,KICK SHAFT SPRING
€ 3.50
4
0928320044
ref: 4
SEAL,OIL(20X27X6)
€ 8.00
5
2623138201
ref: 5
26231-38202
STARTER,KICK
€ 25.50
6
2623214A00
ref: 6
GUIDE,KICK STARTER
€ 8.00
7
2623314A01
ref: 7
STOPPER,KICK STARTER
€ 6.00
8
0110708208
ref: 8
01500-08207
BOLT
€ 3.00
9
0212206166
ref: 9
02122-0616A
SCREW M6X1X16
€ 2.00
10
0821117341
ref: 10
WASHER
€ 2.00
11
0821120281
ref: 11
09181-20167
WASHER,THRUST
€ 2.50
12
2624014A00
ref: 12
GEAR,KICK STARTER DRIVE
€ 52.50
13
0821122281
ref: 13
09181-22139
SHIM
€ 4.00
14
0938022006
ref: 14
CIRCLIP
€ 3.00
15
2622314A00
ref: 15
26223-14A01
SHAFT,KICK STARTER IDLE
€ 16.50
16
2626037400
ref: 16
GEAR,KICK STARTER IDLE
€ 36.00
17
0938017001
ref: 17
CIRCLIP
€ 2.00
18
2630014A00
ref: 18
26300-14A03
LEVER ASSEMBLY,KICK STARTER
€ 282.00
19
2635216401
ref: 19
RUBBER,KICK STARTER PEDAL
€ 4.00
20
0910008194
ref: 20
BOLT 8X25
€ 2.00
21
2681114A04
ref: 21
CAM,DECOMPRESSION
€ 35.50
22
0944032006
ref: 22
SPRING
€ 1.50
23
0821122341
ref: 23
WASHER
€ 3.00
24
2682014A05
ref: 24
SHAFT,DECOMP CAM FOLLOWER
€ 167.50
25
2682414A03
ref: 25
ARM,DECOMPRESSION SHAFT
€ 6.50
26
0944306061
ref: 26
SPRING
€ 2.50
27
2684114A01
ref: 27
HOLDER,DECOMPRESSION CABLE NO
€ 6.50
28
0211206106
ref: 28
02112-0610B
SCREW
€ 1.50
29-1
2684214A01
ref: 29-1
26842-14A02
HOLDER,DECOMPRESSION CABLE NO
€ 6.00
29-2
2684214A02
ref: 29-2
HOLDER,DECOMP CABLE NO.2
€ 6.00
30
0151708165
ref: 30
01550-0816A
BOLT, LOWER
€ 3.00
31
0928210007
ref: 31
09282-10012
OIL SEAL
€ 7.50
32
0821110151
ref: 32
WASHER
€ 2.00
33
0916010020
ref: 33
WASHER(10.5X24X1)
€ 2.00
34
0831311085
ref: 34
08313-10083
NUT,M8X1.25X12
€ 2.00
35-1
2683014A04
ref: 35-1
26830-14A05
CABLE,KICK STARTER DECOMPRESSION
€ 19.00
35-2
2683014A05
ref: 35-2
CABLE,KICK STARTER DECOMP
€ 19.00
36
0940406401
ref: 36
09404-06432
CLAMP L:35
€ 2.50
