ELECTRICAL
SP600 1985 (F) USA (E03)

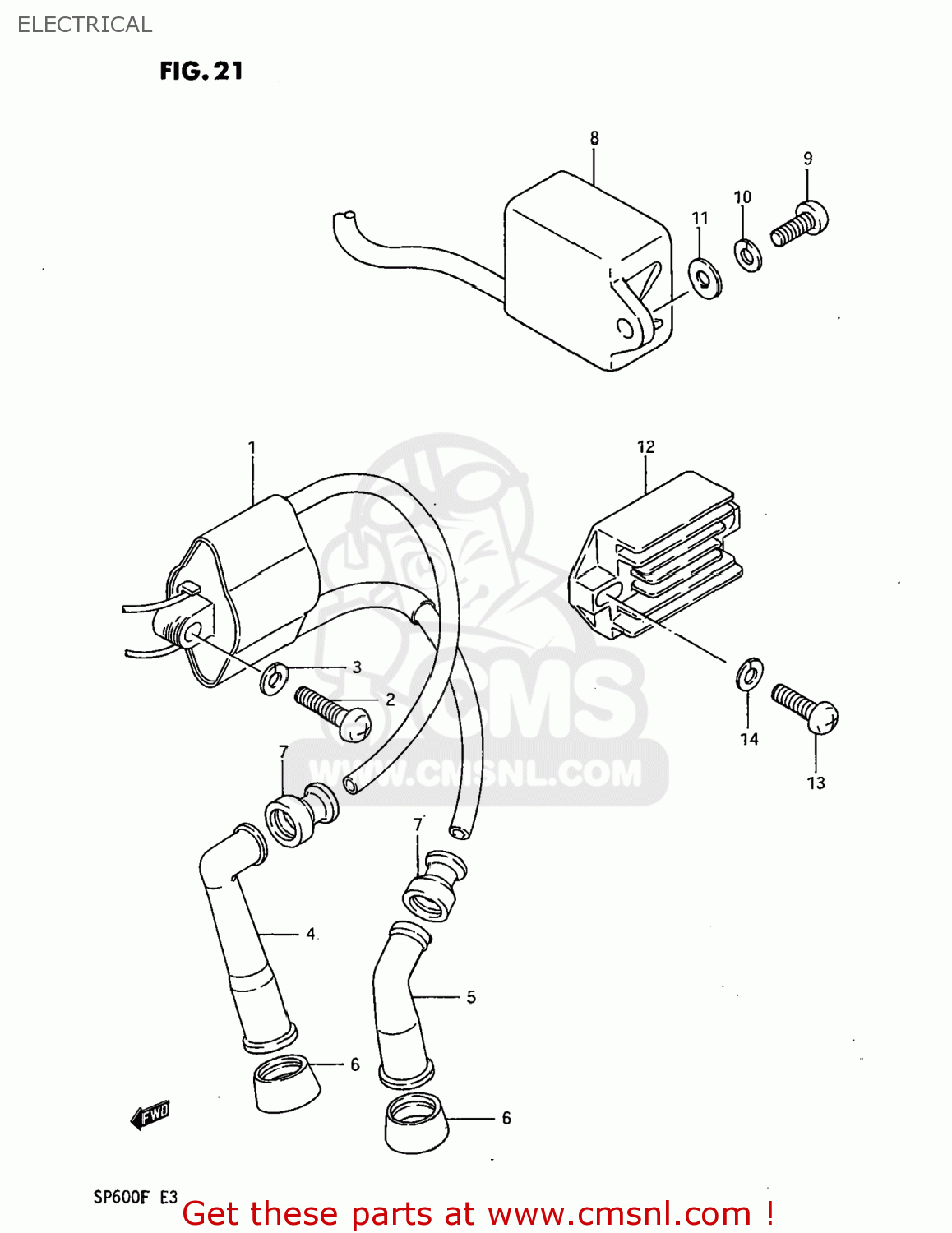

Electrical diagram SP600 1985 (F) USA (E03)
ELECTRICAL SP600 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341014A00
ref: 1
33410-12D00
COIL ASSEMBLY,IGNITION
€ 161.50
2
0211206256
ref: 2
02112-0625A
SCREW
€ 1.50
3
0832221066
ref: 3
08322-0106B
WASHER, LOWER
€ 2.00
4
3351045010
ref: 4
CAP ASSY,SPARK PLUG
€ 23.00
5
3351043010
ref: 5
CAP,SPARK PLUG
€ 11.50
6
3354124510
ref: 6
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
7
3354298000
ref: 7
33542-38B00
SEAL,SPARK PLU
€ 4.50
8
3290014A00
ref: 8
CDI UNIT
€ 252.00
9
0211206166
ref: 9
02112-0616A
SCREW
€ 2.00
10
0832121066
ref: 10
08321-0106A
WASHER,LOCK
€ 2.00
11
0832221066
ref: 11
08322-0106B
WASHER, LOWER
€ 2.00
12
3280009300
ref: 12
32800-09301
RECTIFIER ASSEMBLY
€ 306.50
13
0211206206
ref: 13
02112-0620A
SCREW
€ 2.00
14
0832121066
ref: 14
08321-0106A
WASHER,LOCK
€ 2.00
