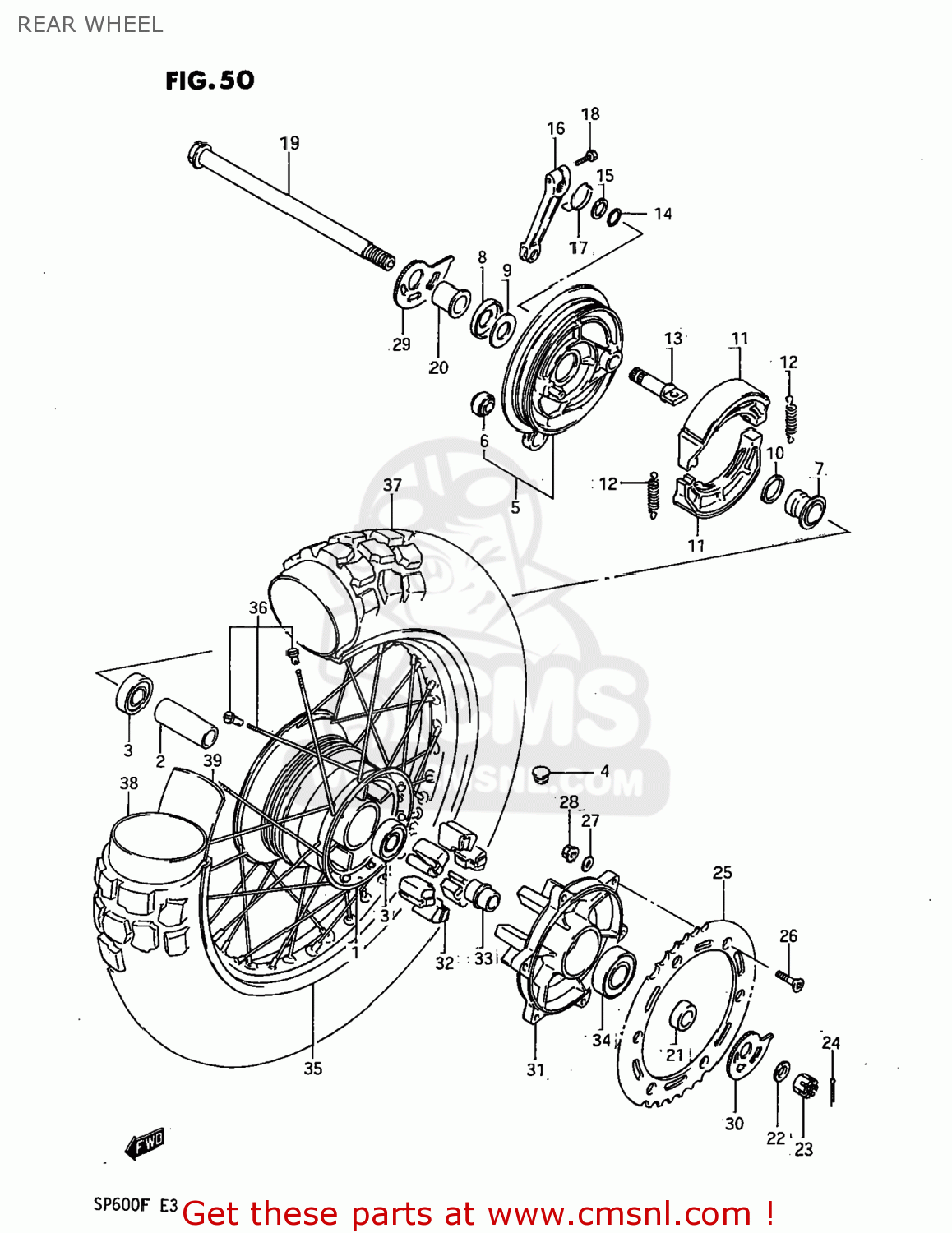

REAR WHEEL

ref

part #

description

quantity

1

6411014A00
ref: 1

DRUM,REAR HUB

€ 307.00

2

0918017078
ref: 2

SPACER (17.5X25X90)

€ 12.00

3

0812362037
ref: 3
08133-62037

BEARING

€ 24.50

4

0925008013
ref: 4

CAP(OD:12)

€ 2.00

5

6420014870
ref: 5
64200-14871

PANEL SET,REAR HUB

€ 62.50

6

6435240401
ref: 6

SPHERICAL BRNG,TORQUE LINK

€ 69.50

7

6421314A00
ref: 7

SPACER,REAR BRAKE ANCHOR

€ 22.00

8

6484537200
ref: 8

CVR,RR BRAKE AHR PNL DUST SEAL

€ 12.00

9

0821117361
ref: 9

WASHER

€ 2.00

10

0928524001
ref: 10

SEAL,OIL(24X31X5)

€ 4.50

11

5441007003
ref: 11
54401-07810

SHOE,BRAKE

€ 35.00

12

0944307001
ref: 12
09443-07025

SPRING(L:34)

€ 2.50

13

6444114A00
ref: 13

CAM,REAR BRAKE

€ 12.00

14

0928014003
ref: 14
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

15

0916014001
ref: 15
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

16

6445114A00
ref: 16

LEVER,RR BRAKE CAM

€ 33.00

17

0944830006
ref: 17

SPRING

€ 4.00

18

0110706258
ref: 18
01500-06257

BOLT

€ 2.00

19

6471114A01
ref: 19

AXLE,RR

€ 51.00

20

6474114A00
ref: 20
64741-14A01

SPACER,REAR AXLE

€ 10.50

21

0918017079
ref: 21

SPACER (17X33X11)

€ 12.00

22

0832211168
ref: 22
08322-01167

WASHER

€ 2.00

23

0831431168
ref: 23
08314-3116A

NUT 16MM

€ 4.00

24

0411140308
ref: 24
04111-4030A

PIN,COTTER

€ 1.50

25

6451114A00
ref: 25
64511-14A01

SPROCKET,REAR

€ 99.00

26

0912008010
ref: 26

BOLT(8X30.5)

€ 2.50

27

0832211088
ref: 27
08322-01087

WASHER

€ 2.00

28

0831931088
ref: 28
08319-3108A

NUT

€ 2.50

29

6141114A00
ref: 29

ADJUSTER,CHAIN RH

€ 13.00

30

6142114A00
ref: 30

ADJUSTER,CHAIN LH

€ 13.00

31

6461114A00
ref: 31

DRUM,RR SPROCKET MOUNTING

€ 468.50

32

6465114A00
ref: 32
64651-22D00

CUSHION,REAR DRUM

€ 11.50

33

6473314A00
ref: 33

RETAINER,RR SPROCKET DRUM

€ 19.00

34

0812362057
ref: 34
09262-25061

BEARING

€ 27.50

35

6531114A10
ref: 35

RIM,REAR WHEEL (2.50-17)(

€ 312.00

36

6532014A00
ref: 36

SPOKE SET,REAR WHEEL

€ 51.50

37

6510014A10
ref: 37
65110-31D00

TIRE

€ 133.00

38

6520044300
ref: 38
65200-49030

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

39

6526129500
ref: 39
65261-49010

PROTECTOR,WHEEL,INNER

€ 2.00
