CYLINDER

SP600 1985 (F) USA (E03)

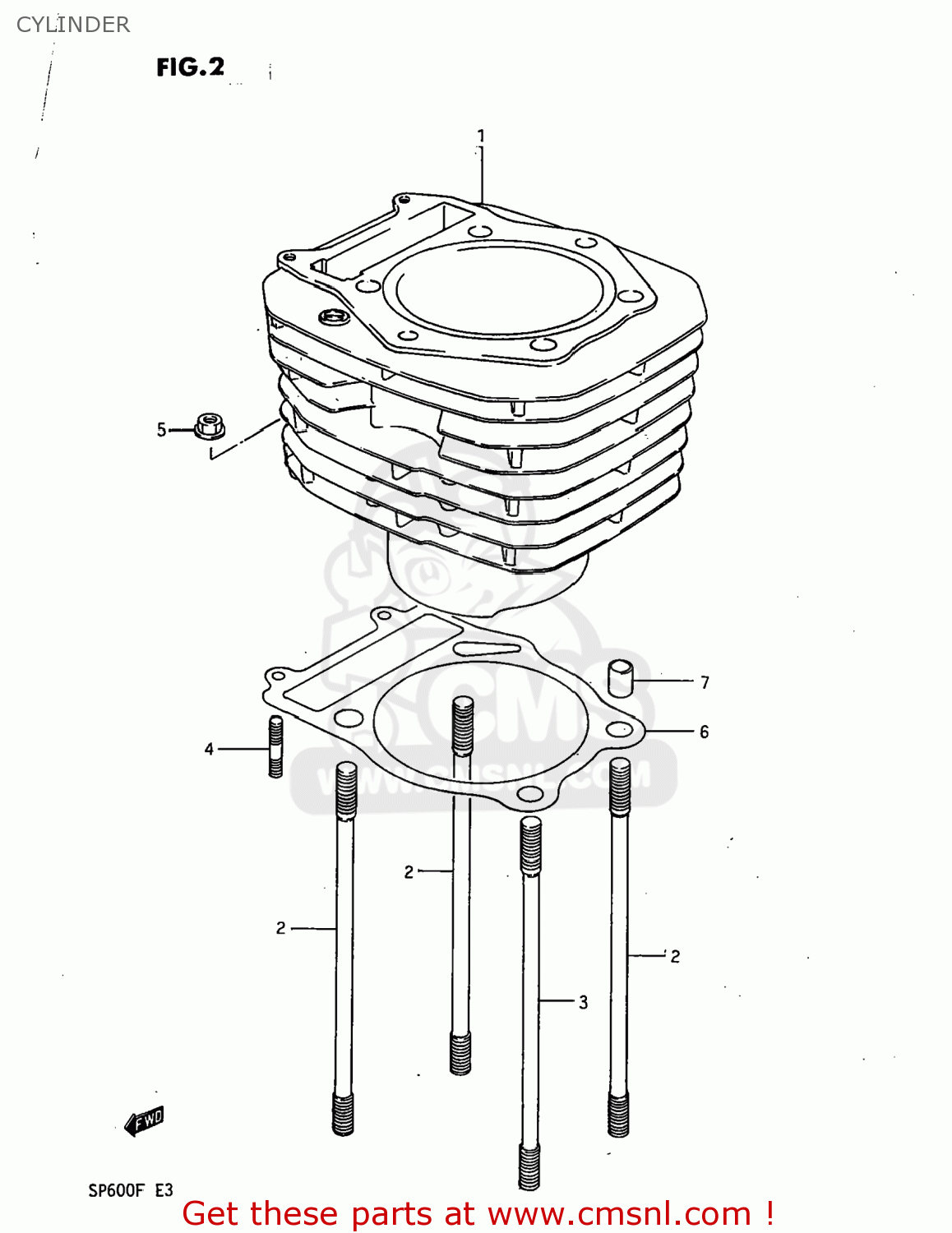

Cylinder diagram SP600 1985 (F) USA (E03)

CYLINDER SP600 1985 (F) USA (E03)

CYLINDER SP600 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121014A02
ref: 1

CYLINDER

€ 594.00

2

0910810039
ref: 2
09108-10041

STUD

€ 9.00

3

0910810075
ref: 3

STUD

€ 8.50

4

0142106205
ref: 4
01421-0620A

STUD BOLT L:20

€ 2.50

5

0831616064
ref: 5
08316-1006B

NUT 6MM

€ 2.50

6

1124114A01
ref: 6
11241-14A03-H17

GASKET,CYLINDER (MCA)

€ 27.00

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50
