16 GEAR SHIFTING
ST400V TEMPTER NK43A

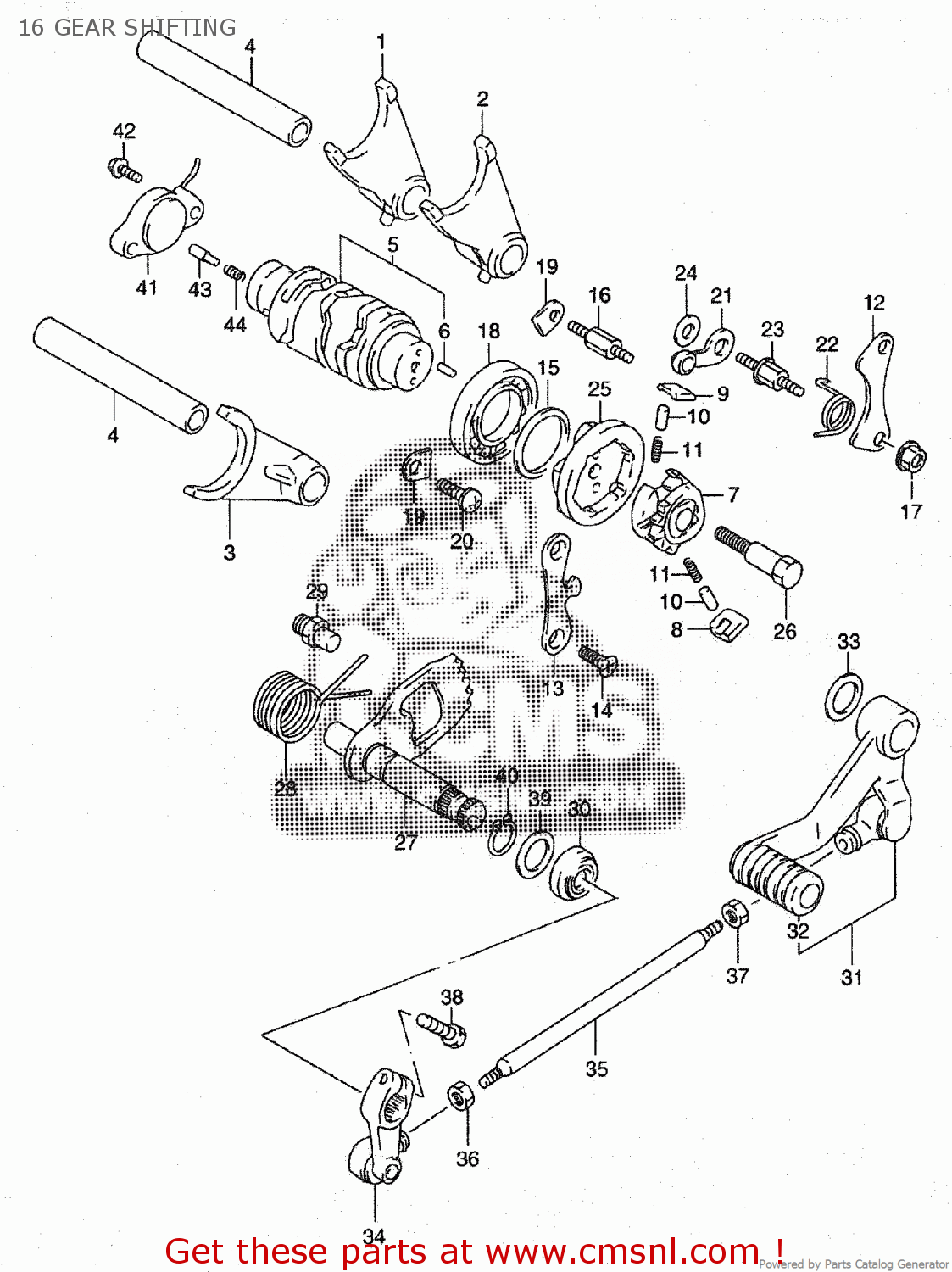

16 gear shifting diagram ST400V TEMPTER NK43A
16 GEAR SHIFTING ST400V TEMPTER NK43A
×
prices are in EUR
ref
part #
description
quantity
1
2521124B10
ref: 1
FORK,GEAR SHIFT NO.1
€ 72.00
2
2522124B10
ref: 2
FORK,GEAR SHIFT NO.2
€ 63.50
3
2523124B10
ref: 3
FORK,GEAR SHIFT NO.3
€ 59.50
4
2541124B00
ref: 4
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531024B11
ref: 5
CAM,GEAR SHIFT
€ 114.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2532231310
ref: 7
25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533138A00
ref: 12
LIFTER,GEAR SHIFT POLE
€ 4.50
13
2534138A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 6.00
14
0212206123
ref: 14
SCREW
€ 3.00
15
0916025059
ref: 15
WASHER(25X32X3)
€ 5.00
16
2533224B00
ref: 16
BOSS,SHIFT PAWL LIFTER
€ 7.50
17
0831610063
ref: 17
NUT
€ 2.50
18
0926225006
ref: 18
BEARING(25X47X8)
€ 24.00
19
2474121A00
ref: 19
RETAINER
€ 2.00
20
0211206123
ref: 20
SCREW
€ 1.50
21
2535024B00
ref: 21
STOPPER,GEAR SHIFT CAM
€ 8.00
22
2535507F00
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
€ 9.50
24
0821106141
ref: 24
WASHER
€ 2.50
25
2538007F00
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
2531238A00
ref: 26
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
27
2551024B01
ref: 27
SHAFT,GEAR SHIFT
€ 66.00
28
0944426013
ref: 28
SPRING
€ 3.50
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0928512002
ref: 30
OIL SEAL
€ 7.00
31
2560007F00
ref: 31
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33
0916118003
ref: 33
WASHER(18.2X27X1)
€ 3.00
34
2552022A00
ref: 34
ARM,GEAR SHIFT LINK
€ 46.50
35
2552547D21
ref: 35
ROD GEAR SHIFT LINK
€ 22.00
36
0914006011
ref: 36
NUT
€ 1.50
37
0831000067
ref: 37
NUT
€ 2.50
38
0150006207
ref: 38
BOLT
€ 2.00
39
0821212201
ref: 39
WASHER
€ 1.50
40
0833131126
ref: 40
CIRCLIP,12 MM
€ 2.00
41
3772024B30
ref: 41
BASE ASSY,NEUTRAL SW TERMINAL
€ 49.00
42
0211275163
ref: 42
SCREW
€ 2.50
43
0920905011
ref: 43
PIN(5X15.5)
€ 2.00
44
0944004010
ref: 44
SPRING
€ 1.50
