36 HANDLE LEVER
ST400V TEMPTER NK43A

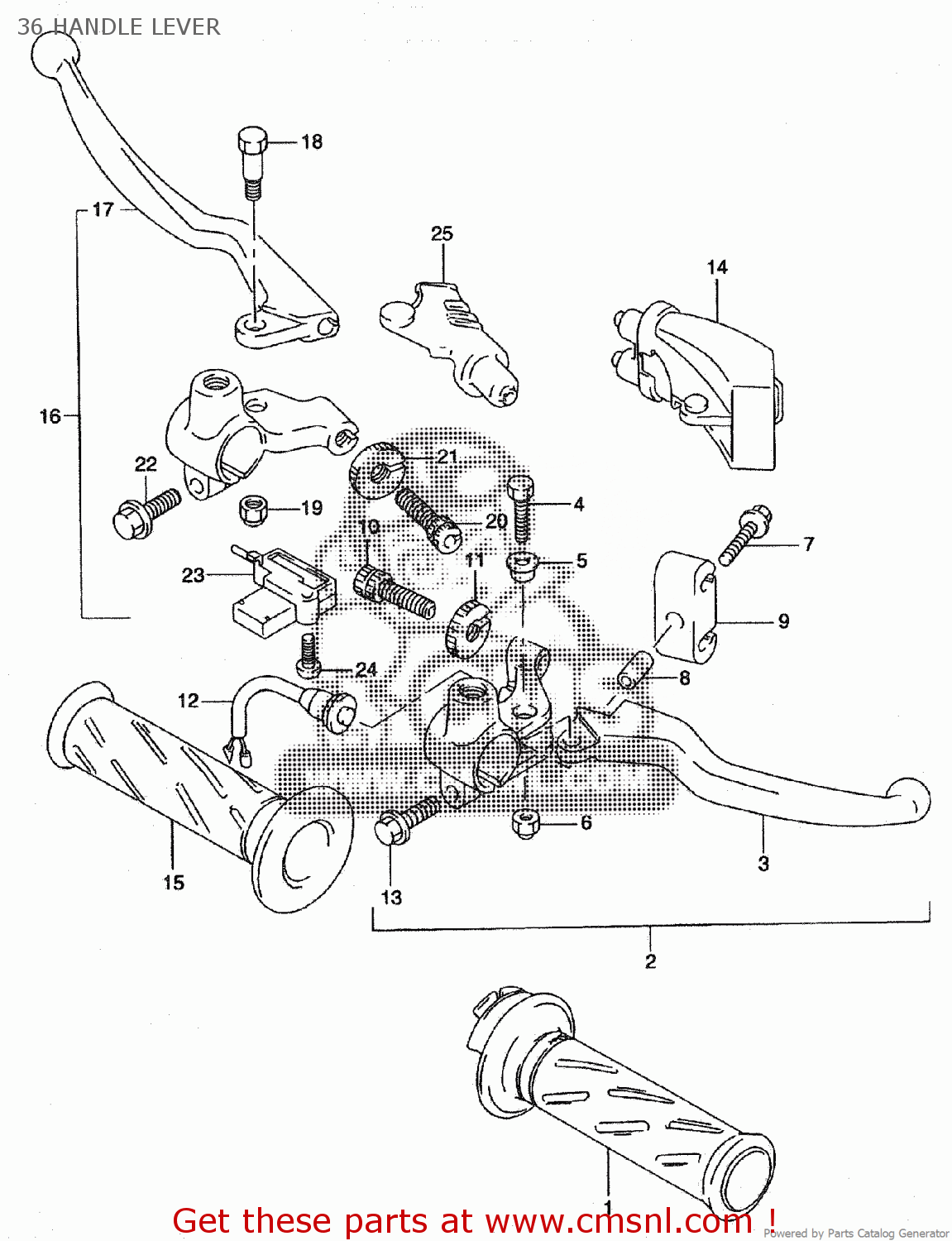

36 handle lever diagram ST400V TEMPTER NK43A
36 HANDLE LEVER ST400V TEMPTER NK43A
×
prices are in EUR
ref
part #
description
quantity
1
5711046E01
ref: 1
GRIP,THROTTLE
€ 26.00
2
5730007F00
ref: 2
LEVER ASSY,BRAKE
€ 91.50
3
5731107F00
ref: 3
LEVER,BRAKE
€ 26.50
4
5743107F00
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
5762324B00
ref: 5
SPACER,CLUTCH LEVER PIVOT
€ 6.50
6
0831931063
ref: 6
NUT
€ 2.50
7
0158006303
ref: 7
BOLT
€ 2.50
8
5762324B00
ref: 8
SPACER,CLUTCH LEVER PIVOT
€ 6.50
9
5731302C00
ref: 9
EQUALIZER
€ 15.50
10
5744145C00
ref: 10
ADJUSTER,WIRE
€ 8.50
11
5744245C00
ref: 11
NUT,LOCK
€ 7.50
12
5746007F00
ref: 12
SWITCH ASSY,STOP
€ 0.00
13
0154706203
ref: 13
SCREW
€ 2.50
14
5734107F00
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
5721122D01
ref: 15
GRIP,LEFT
€ 11.50
16
5750025D00
ref: 16
LEVER ASSY,CLUTCH
€ 46.50
17
5762133E00
ref: 17
LEVER,CLUTCH
€ 24.00
18
5743145C00
ref: 18
BOLT,LEVER SET
€ 10.50
19
0831921063
ref: 19
NUT
€ 2.50
20
5744145C00
ref: 20
ADJUSTER,WIRE
€ 8.50
21
5744245C00
ref: 21
NUT,LOCK
€ 7.50
22
0154706203
ref: 22
SCREW
€ 2.50
23
5756005A00
ref: 23
SWITCH,CLUTCH
€ 11.00
24
0212203208
ref: 24
SCREW
€ 2.00
25
5766133E00
ref: 25
COVER,CLUTCH LEVER
€ 7.50
