29 STAND

ST400V TEMPTER NK43A

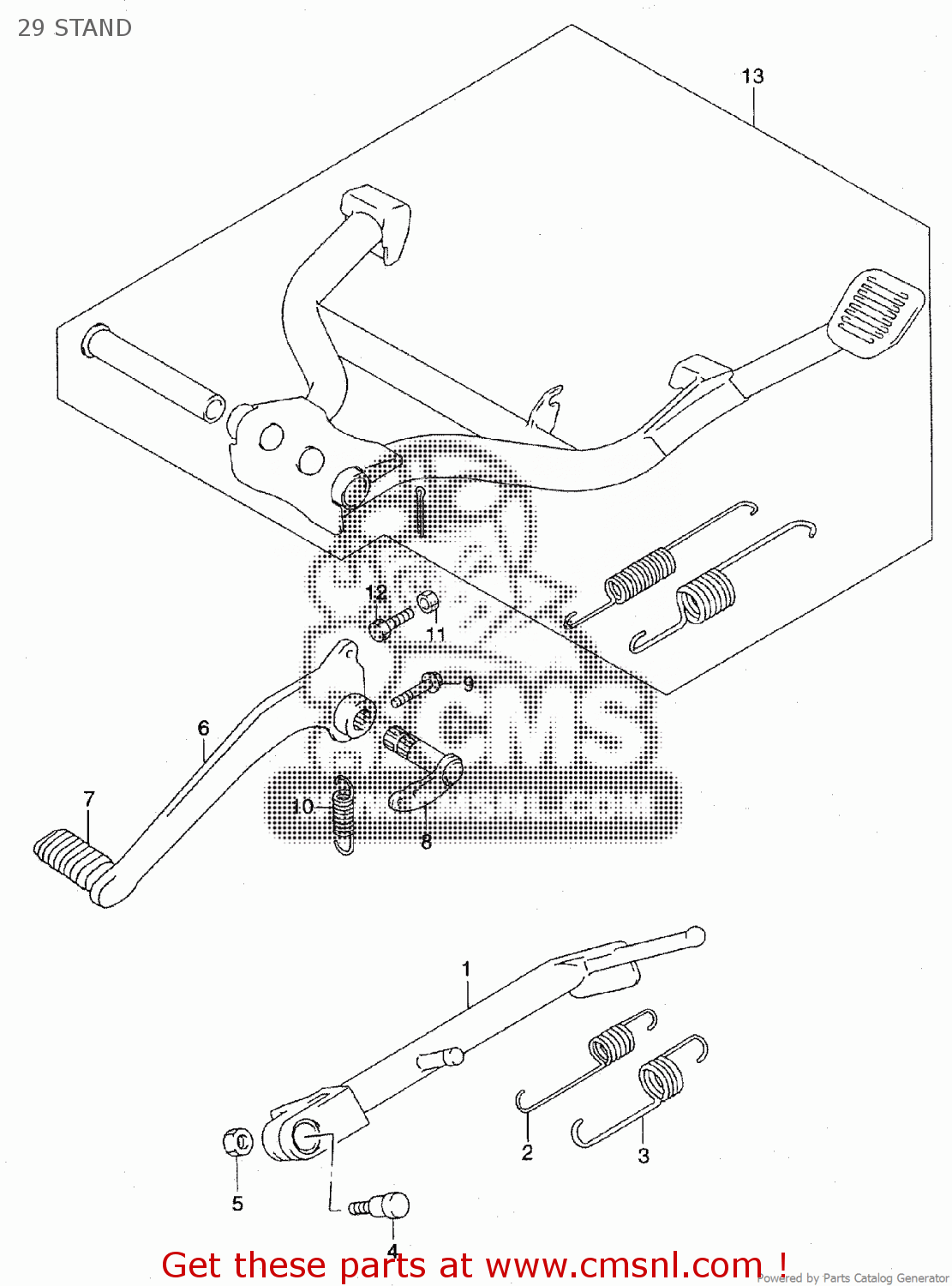

29 stand diagram ST400V TEMPTER NK43A

29 STAND ST400V TEMPTER NK43A

29 STAND ST400V TEMPTER NK43A

prices are in EUR

ref

part #

description

quantity

1

4231007F00
ref: 1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

0944314066
ref: 2

SPRING

€ 5.00

3

0944319012
ref: 3

SPRING

€ 5.50

4

0911110027
ref: 4

BOLT(10X34)

€ 3.50

5

0831921103
ref: 5

NUT

€ 2.00

6

4311007F00
ref: 6

PEDAL,BRAKE

€ 65.50

7

2565249300
ref: 7

RUBBER,PEDAL

€ 5.50

8

4312007F00
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

0155006257
ref: 9

BOLT

€ 2.50

10

0944312019
ref: 10

SPRING

€ 6.00

11

0831000063
ref: 11

NUT 6MM

€ 2.00

12

0910006009
ref: 12

BOLT(6X23)

€ 1.50

13

4210007850
ref: 13
OPT

STAND SET,CTR

€ 145.50
