7 STARTER CLUTCH

ST400V TEMPTER NK43A

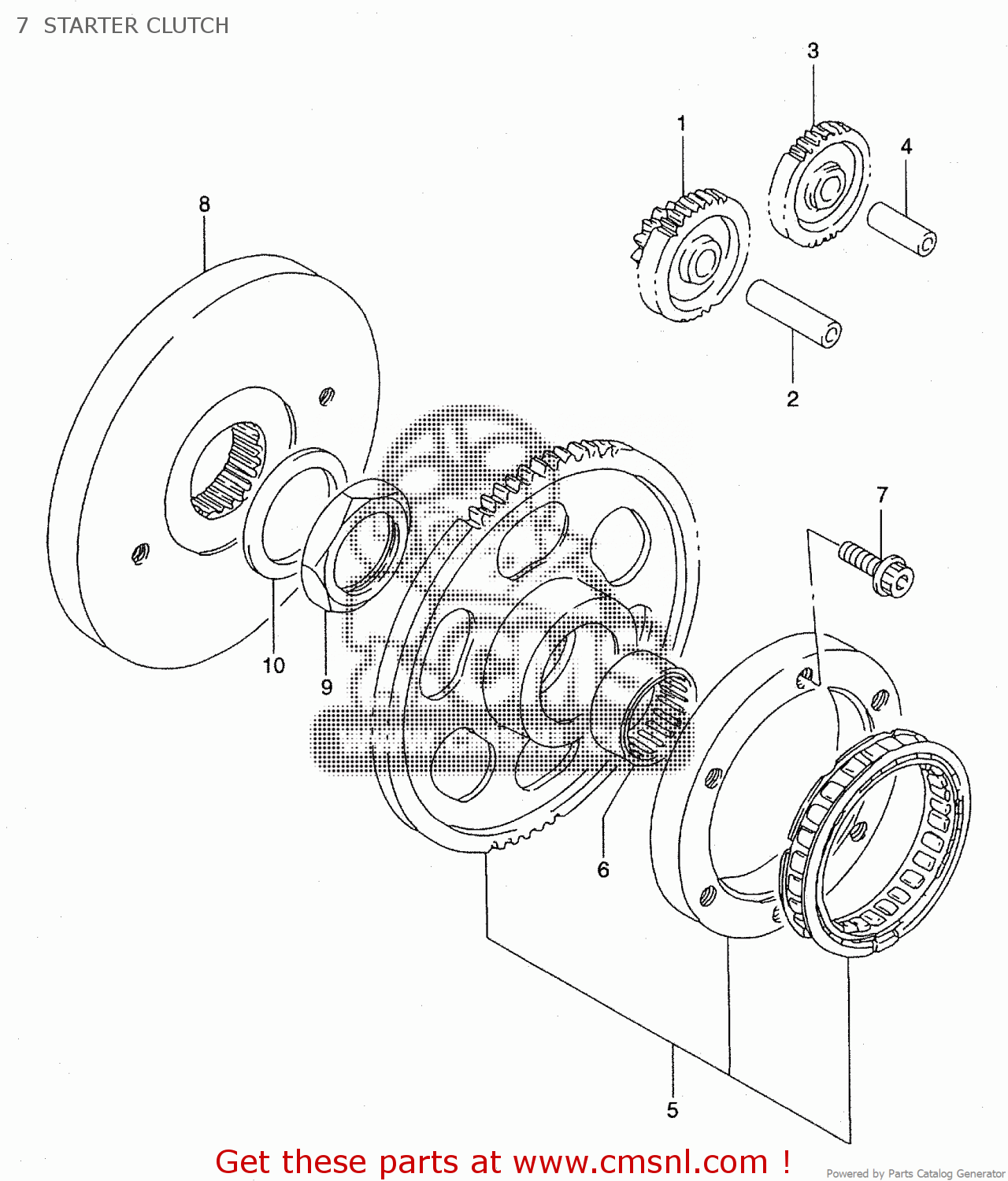

7 starter clutch diagram ST400V TEMPTER NK43A

7 STARTER CLUTCH ST400V TEMPTER NK43A

7 STARTER CLUTCH ST400V TEMPTER NK43A

prices are in EUR

ref

part #

description

quantity

1

1261124B02
ref: 1
NT:11/37

GEAR,STARTER IDLE NO.1

€ 79.50

2

0920210008
ref: 2

PIN,10X43

€ 9.00

3

1261224B03
ref: 3
NT:34

GEAR,STARTER IDLE NO.2

€ 44.50

4

0920210011
ref: 4

PIN(10X30)

€ 7.00

5

1260024831
ref: 5

CLUTCH SET,STARTER

€ 306.00

6

0926331009
ref: 6

BEARING(31X39X17.8)

€ 25.50

7

0713008163
ref: 7

BOLT

€ 3.00

8

1265624B02
ref: 8

FLYWHEEL

€ 92.00

9

1266424B01
ref: 9

NUT,FLYWHEEL

€ 9.50

10

0916435002
ref: 10

WASHER

€ 5.00
