32 FUEL COCK

ST400V TEMPTER NK43A

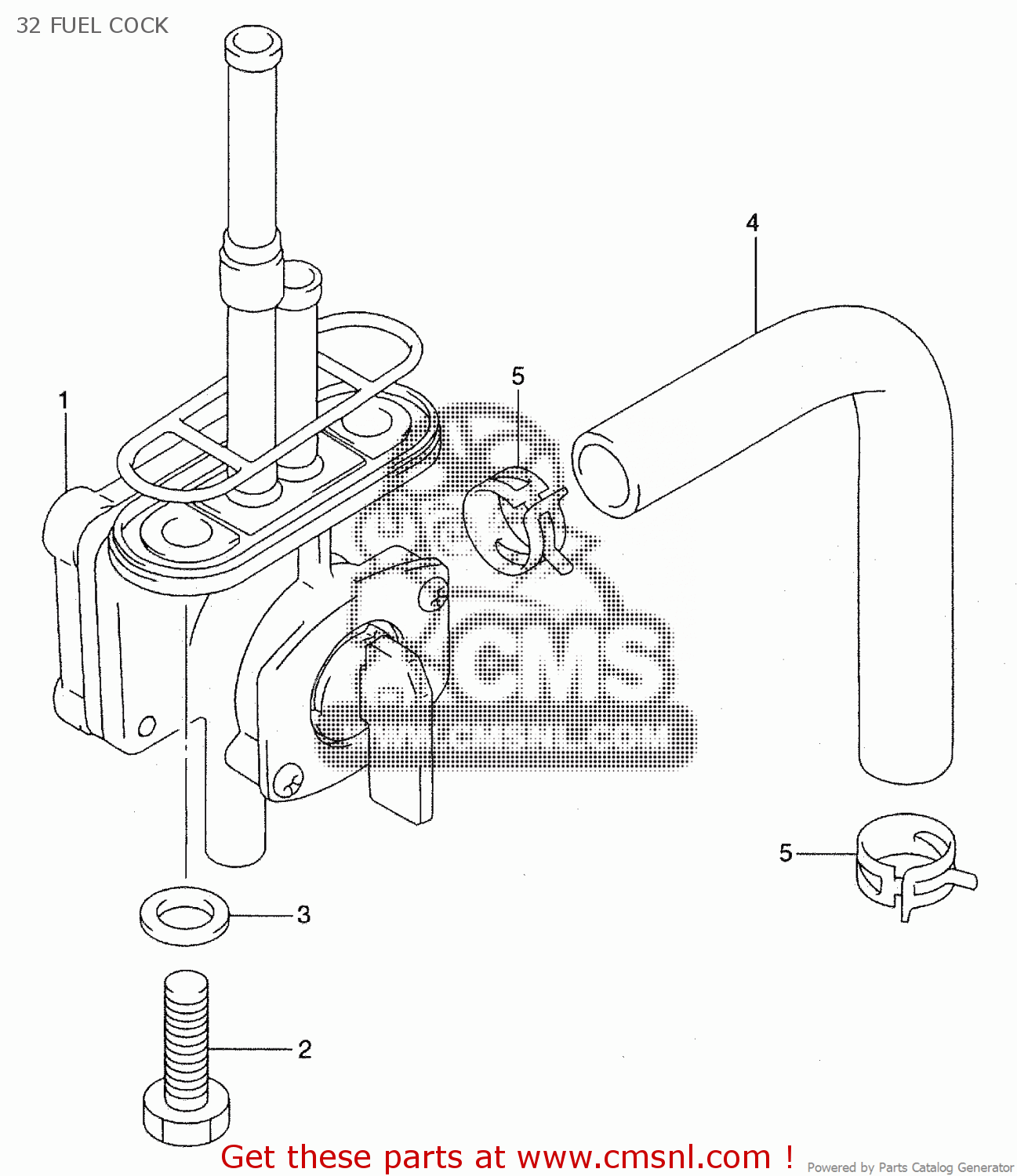

32 fuel cock diagram ST400V TEMPTER NK43A

32 FUEL COCK ST400V TEMPTER NK43A

32 FUEL COCK ST400V TEMPTER NK43A

prices are in EUR

ref

part #

description

quantity

1

4430007F00
ref: 1

COCK ASSY,FUEL

€ 0.00

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

0935570125600
ref: 4
L:600-180

HOSE(7X12X600)

€ 26.00

5

0940111407
ref: 5

CLIP

€ 2.50
