20 ELECTRICAL
ST400V TEMPTER NK43A

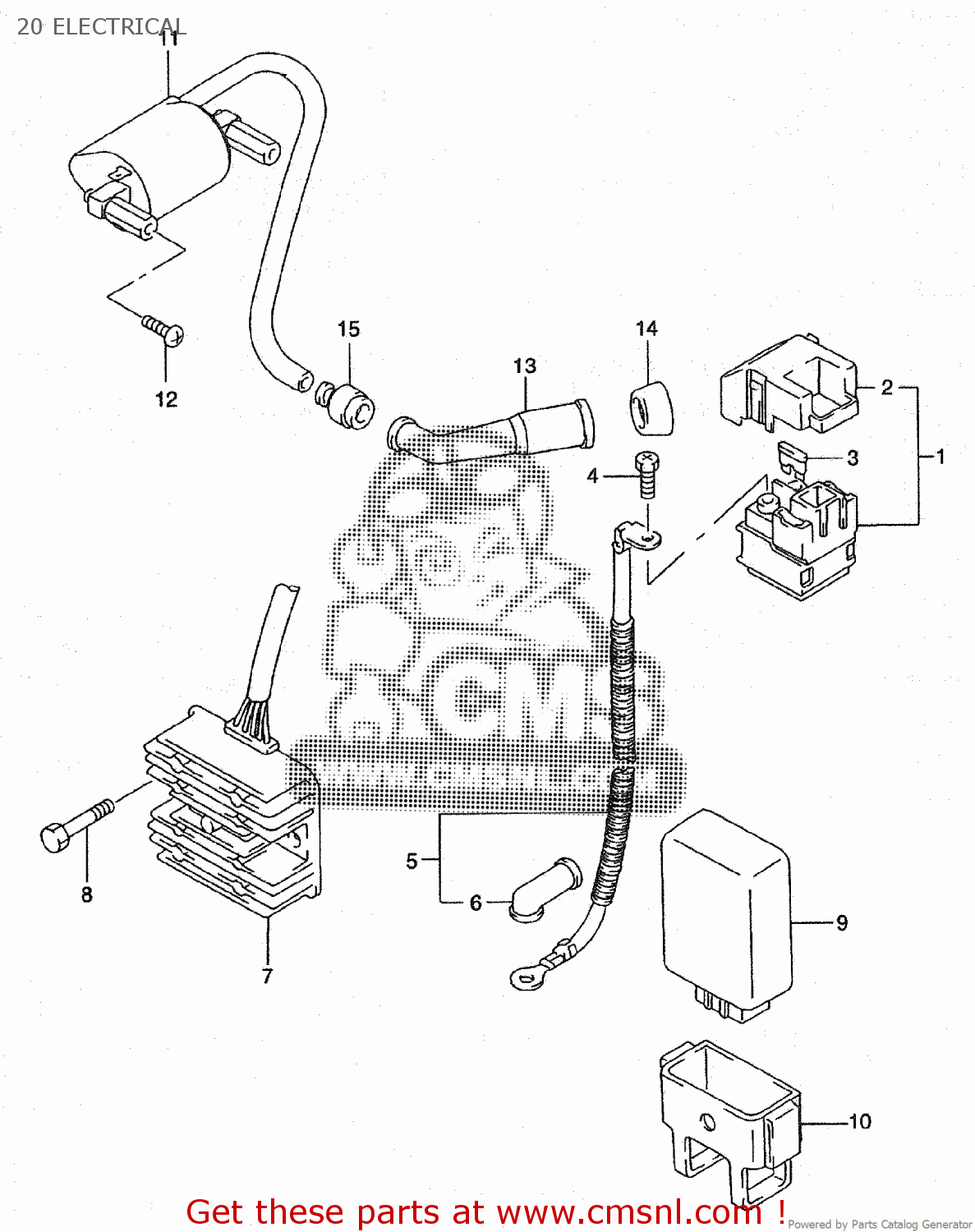

20 electrical diagram ST400V TEMPTER NK43A
20 ELECTRICAL ST400V TEMPTER NK43A
×
prices are in EUR
ref
part #
description
quantity
1
3180047E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 95.00
2
3186147E00
ref: 2
COVER
€ 10.50
3
0948120102
ref: 3
FUSE(20A)
€ 2.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3381027E00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 30.50
6
3186148B10
ref: 6
CAP,STARTER MOTOR LEAD
€ 4.50
7
3280045C01
ref: 7
RECTIFIER ASSY
€ 268.50
8
0713006163
ref: 8
BOLT,OIL FILLE
€ 3.00
9
3290007F00
ref: 9
IGNITOR ASSY
€ 354.50
10
3298007F00
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
3341024B00
ref: 11
COIL ASSY,IGNITION
€ 121.50
12
0214205123
ref: 12
SCREW 5X12
€ 1.50
13
3351045010
ref: 13
CAP ASSY,SPARK PLUG
€ 23.00
14
3354124510
ref: 14
SEAL,SPARK PLUG CAP
€ 7.00
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
€ 4.50
