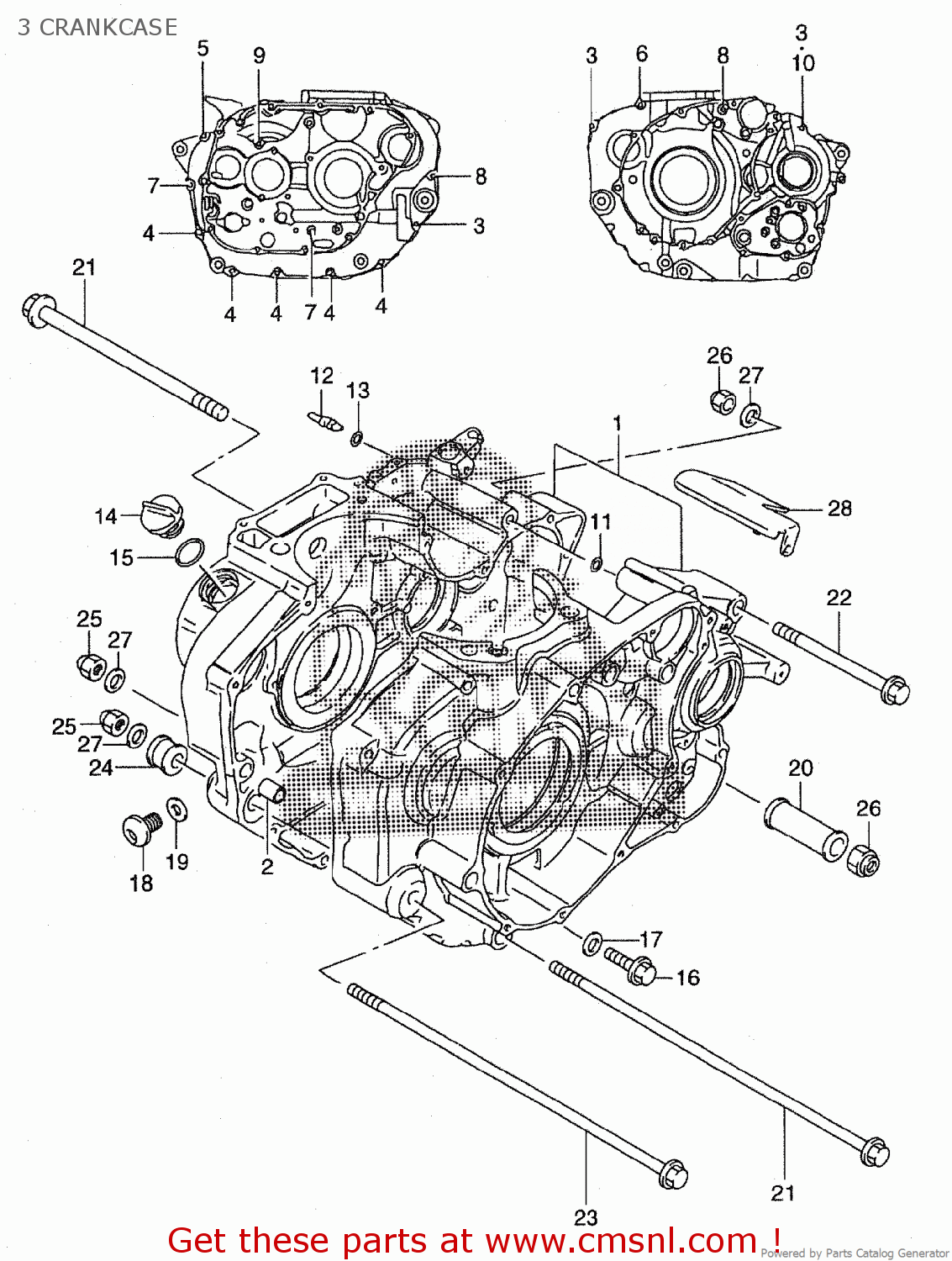

3 CRANKCASE

ref

part #

description

quantity

1

1130124812
ref: 1

CRANKCASE SET

€ 1,352.00

2

0920611017
ref: 2

PIN(8.4X11X20)

€ 6.50

3

0154706407
ref: 3

BOLT

€ 2.50

4

0154706457
ref: 4

BOLT

€ 2.50

5

0154706557
ref: 5

BOLT

€ 2.50

6

0154706607
ref: 6

BOLT

€ 2.50

7

0154706657
ref: 7

BOLT

€ 2.00

8

0154706707
ref: 8

BOLT

€ 2.50

8

0154706703
ref: 8

BOLT

€ 3.00

9

0154706753
ref: 9

BOLT

€ 2.00

10

0916806024
ref: 10

GASKET(5.8X11X1.2) (NAS)

€ 2.00

11

0928010013
ref: 11

O RING(D:2.4,ID:9.6)

€ 5.50

12

0949336004
ref: 12

JET,OIL GALLERY(18)

€ 8.00

13

0928004004
ref: 13

O RING(D:1.2,ID:4)

€ 2.00

14

0925920007
ref: 14

PLUG(20X10)

€ 6.50

15

0928017003
ref: 15

O RING(D:3.1,ID:16.8)

€ 2.00

16

0924712106
ref: 16

PLUG,12X20

€ 2.50

17

0916812002
ref: 17

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

18

0924714026
ref: 18

PLUG(14X12)

€ 3.50

19

0916814002
ref: 19

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20

1161029B10
ref: 20

SPACER,ENGINE MOUNT NO

€ 0.00

21

0910310238
ref: 21

BOLT 10X230

€ 17.00

22

0910310087
ref: 22

BOLT(10X105)

€ 6.50

23

0910310190
ref: 23

BOLT (10X215)

€ 9.50

24

1161038400
ref: 24

SPACER,ENGINE MOUNT(L20)

€ 9.00

25

0915910093
ref: 25

NUT

€ 8.50

26

0831931103
ref: 26

NUT

€ 3.00

27

0832201103
ref: 27

WASHER

€ 2.50

28

1138407F00
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
