22 HEADLAMP

ST400V TEMPTER NK43A

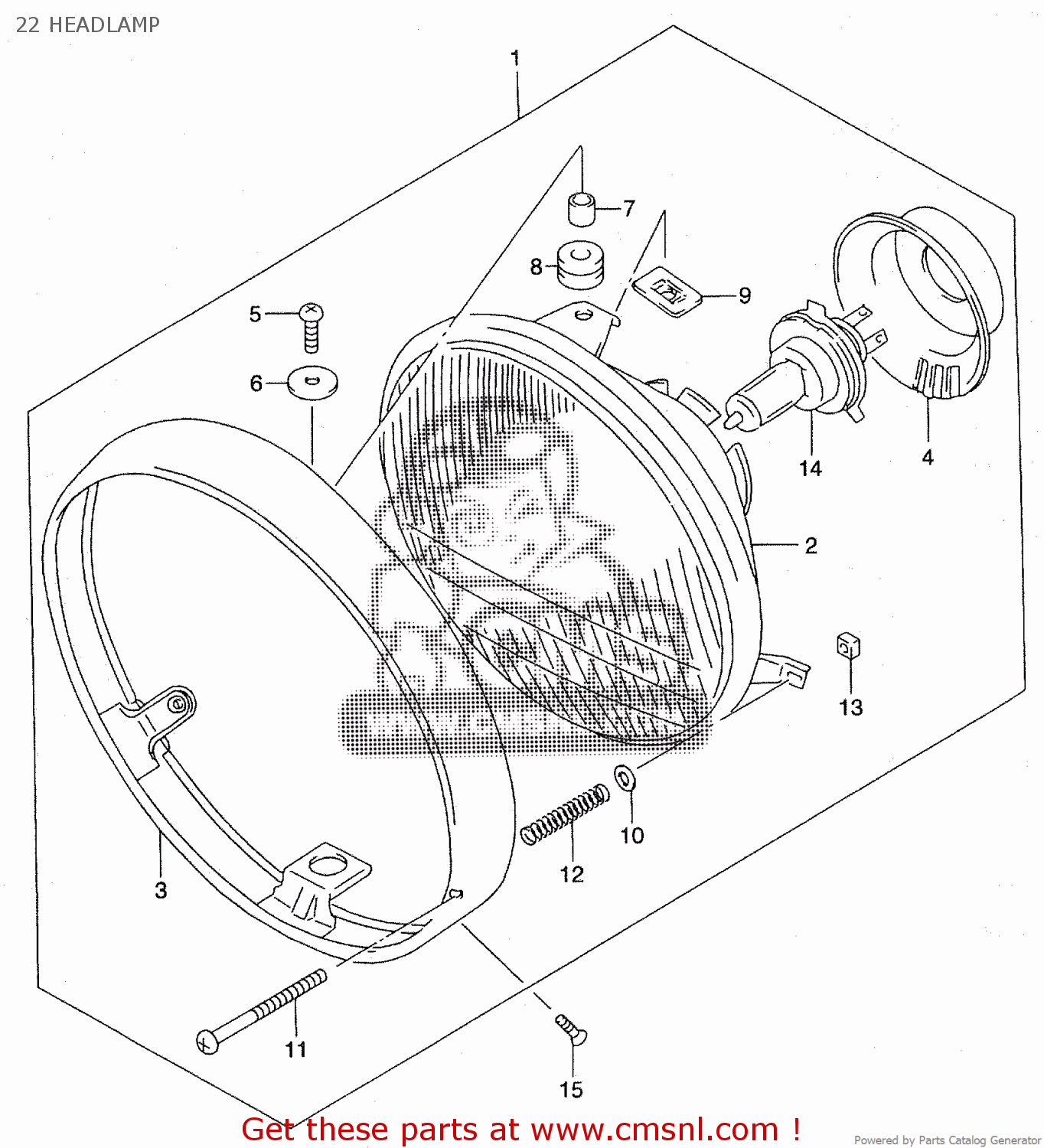

22 headlamp diagram ST400V TEMPTER NK43A

22 HEADLAMP ST400V TEMPTER NK43A

22 HEADLAMP ST400V TEMPTER NK43A

prices are in EUR

ref

part #

description

quantity

1

3510005A30999
ref: 1

HEADLAMP ASSY

€ 237.00

2

3512105A30
ref: 2

LAMP UNIT

€ 205.50

3

3511115530
ref: 3

RIM,HEAD LAMP

€ 56.50

4

3517345200
ref: 4

COVER,SOCKET

€ 14.00

5

0912505102
ref: 5

SCREW(5X14)

€ 2.50

6

0916005045
ref: 6

WASHER(5.5X18X1)

€ 2.00

7

3513345230
ref: 7

SPACER

€ 2.00

8

3513945230
ref: 8

CUSHION

€ 1.50

9

3515548510
ref: 9

NUT

€ 2.00

10

3515727630
ref: 10

WASHER

€ 2.50

11

0912504020
ref: 11

SCREW(4X50)

€ 3.00

12

3515427630
ref: 12

SPRING,HEADLAMP ADJUST

€ 3.50

13

3513545600
ref: 13

NUT

€ 3.00

14

0947112144
ref: 14

BULB(12V60/55W ,YELLOW)

€ 0.00

15

0912605003
ref: 15

SCREW(5X12)

€ 2.50
