AIR CLEANER
SV650A 2008 (K8) USA (E03)

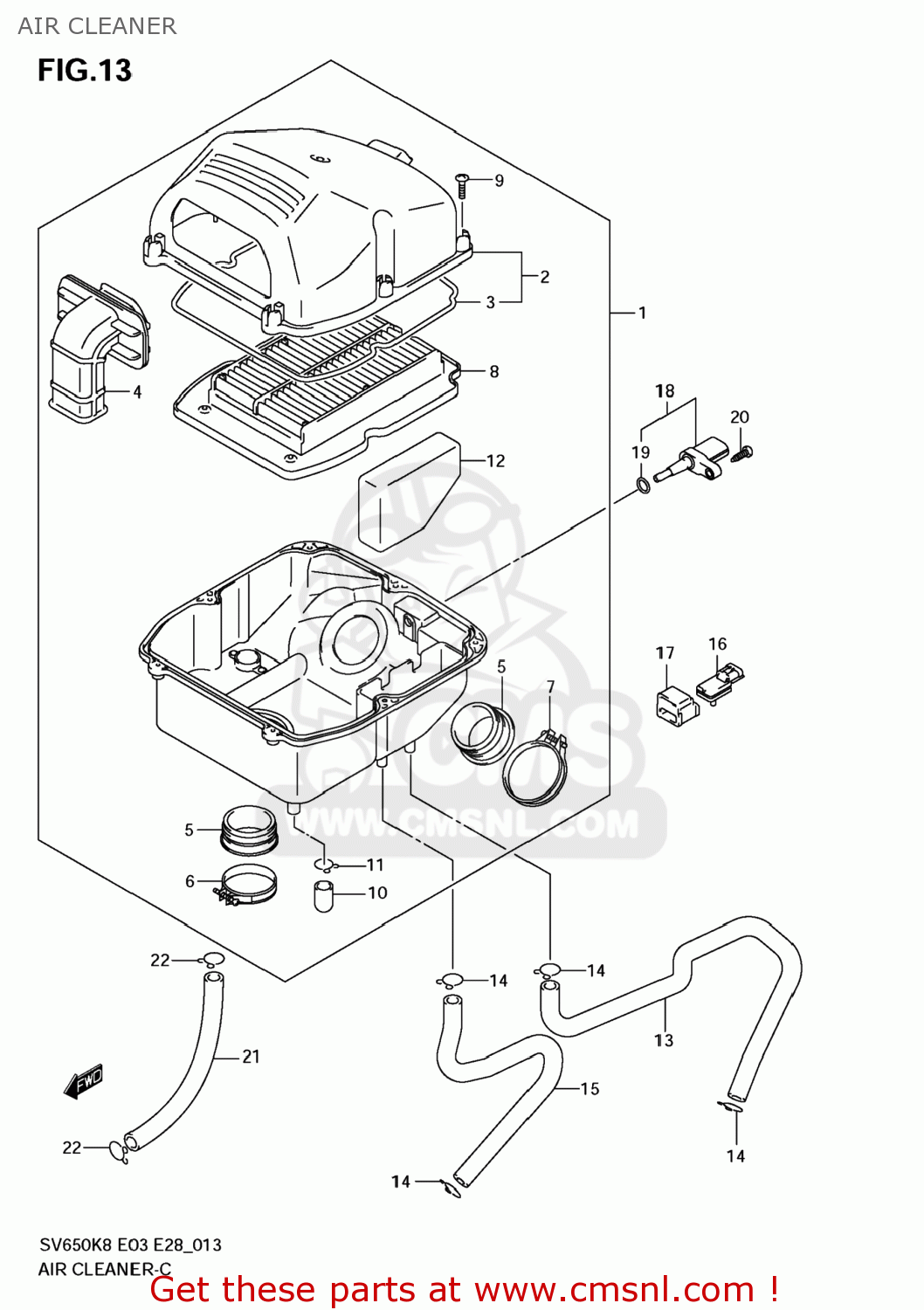

Air cleaner diagram SV650A 2008 (K8) USA (E03)
AIR CLEANER SV650A 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370017G10
ref: 1
CLEANER ASSY,AIR
€ 182.00
2
1374016G00
ref: 2
CAP,AIR CLEANER
€ 33.00
3
1374616G00
ref: 3
GASKET (NAS)
€ 8.50
4
1389117G00
ref: 4
TUBE,INLET
€ 30.50
5
1388117G00
ref: 5
TUBE,OUTLET
€ 14.00
6
1382617G00
ref: 6
CLAMP
€ 6.00
7
1382617G00
ref: 7
CLAMP
€ 6.00
8
1378016G00
ref: 8
FILTER
€ 28.00
9
035410520B
ref: 9
SCREW
€ 2.50
10
1385941B10
ref: 10
PLUG
€ 5.50
11
0940114301
ref: 11
CLIP
€ 2.00
12
1378817G00
ref: 12
FILTER,BREATHER
€ 14.50
13
1385117G00
ref: 13
TUBE,BREATHER CRANKCASE
€ 19.50
14
0940115101
ref: 14
CLIP
€ 2.00
15
1385117G10
ref: 15
TUBE,BREATHER CYLINDER
€ 15.50
16
1859141F00
ref: 16
SENSOR,PRESSURE
€ 360.00
17
1859541F00
ref: 17
HOLDER,SENSOR
€ 14.50
18
1365041F10
ref: 18
SENSOR,AIR TEMP
€ 41.50
19
1365541F10
ref: 19
O RING
€ 7.00
20
035110516A
ref: 20
SCREW
€ 2.50
21
1386517G00
ref: 21
HOSE,ISC CLNR
€ 18.00
22
0940115101
ref: 22
CLIP
€ 2.00
