REAR CALIPER (SV650K8/SK8/K9/SK9)
SV650A 2008 (K8) USA (E03)

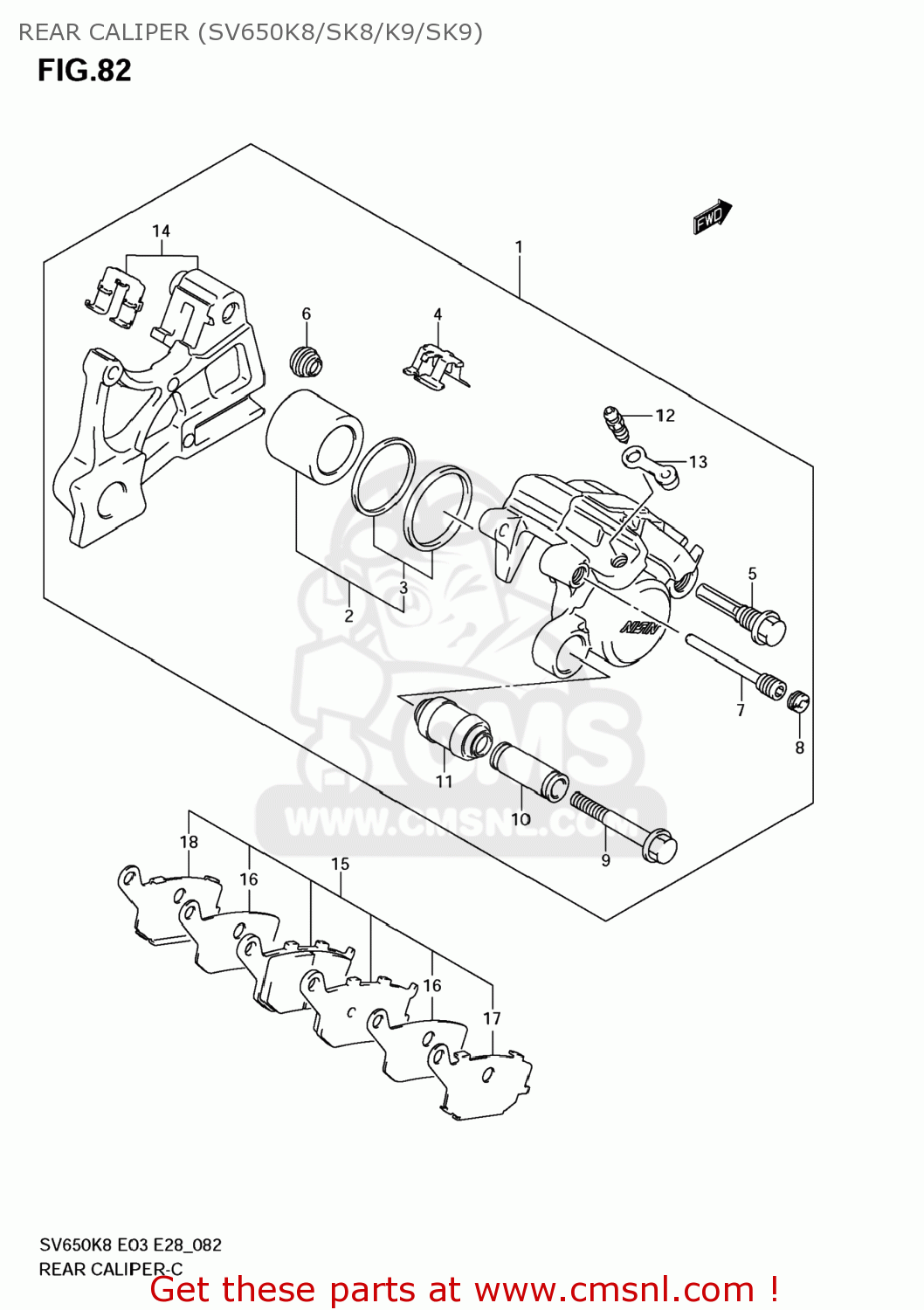

Rear caliper (sv650k8/sk8/k9/sk9) diagram SV650A 2008 (K8) USA (E03)
REAR CALIPER (SV650K8/SK8/K9/SK9) SV650A 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6910017G00999
ref: 1
69100-17G01-999
CALIPER ASSY, REAR
€ 235.00
2
6910004810
ref: 2
PISTON SET
€ 65.50
3
6910004820
ref: 3
SEAL SET,PISTON
€ 12.50
4
6911506G00
ref: 4
SPRING,PAD
€ 7.50
5
6910504F00
ref: 5
BOLT
€ 11.50
6
5930314500
ref: 6
BOOT
€ 5.50
7
6914140F00
ref: 7
PIN,PAD
€ 17.50
8
5914621E10
ref: 8
PLUG,PIN
€ 6.50
9
6918204F00
ref: 9
BOLT
€ 7.50
10
6918504F00
ref: 10
SLEEVE
€ 12.50
11
6918604F00
ref: 11
BOOT,SLEEVE
€ 11.00
12
5912101A00
ref: 12
BLEEDER
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
€ 4.50
14
6915017G00
ref: 14
BRACKET
€ 131.50
15
6910016851
ref: 15
69100-16852
PAD & RETAINER
€ 62.00
16
6913206G00
ref: 16
INSULATOR
€ 13.50
17
6913316G00
ref: 17
RETAINER
€ 10.50
18
6913416G00
ref: 18
RETAINER
€ 10.50
