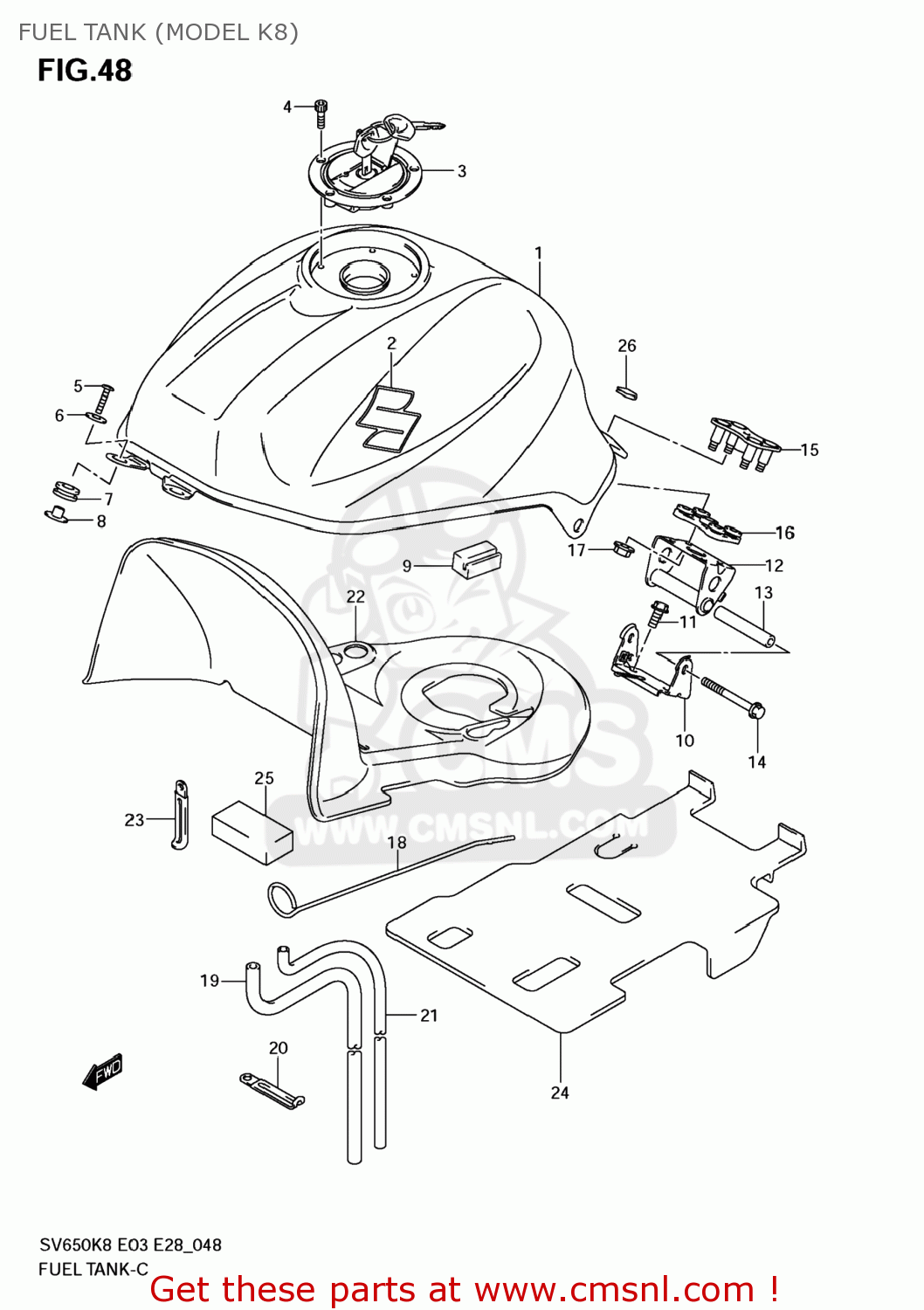

FUEL TANK (MODEL K8)

ref

part #

description

quantity

1-1

4410016G60YAY
ref: 1-1

TANK ASSY, FUEL (BLACK)

€ 736.50

1-2

4410016G60YKZ
ref: 1-2

TANK ASSY,FUEL

€ 747.50

1-3

4410016G60YLF
ref: 1-3

TANK ASSY,FUEL(GRAY)

€ 747.50

1-4

4410016G60YPA
ref: 1-4

TANK ASSY,FUEL(WHITE)

€ 468.00

1-5

4410016G81YAY
ref: 1-5

TANK ASSY, FUEL (BLACK)

€ 736.50

1-6

4410016G81YKZ
ref: 1-6

TANK ASSY,FUEL(BLUE)

€ 747.50

1-7

4410016G81YLF
ref: 1-7
44100-16G82-YLF

TANK ASSY,FUEL(GRAY)

€ 736.50

1-8

4410016G81YPA
ref: 1-8

TANK ASSY,FUEL(WHITE)

€ 0.00

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3-1

4420016850
ref: 3-1

CAP SET,FUEL TANK

€ 155.50

3-2

4420016860
ref: 3-2

CAP SET,FUEL TANK

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

0913906029
ref: 5

SCREW(6X25)

€ 5.00

6

0916006054
ref: 6

WASHER(6.5X22X1.6)

€ 2.00

7

4451116G00
ref: 7

CUSHION,FUEL TANK FR

€ 4.00

8

4451216G00
ref: 8

SPACER,FUEL TANK FR

€ 6.50

9

4454116G00
ref: 9

CUSHION,FUEL TANK SIDE

€ 9.00

10

4455016G00
ref: 10

BRACKET,FUEL TANK NO.2

€ 13.50

11

015500820B
ref: 11

BOLT

€ 3.00

12

4453016G00
ref: 12

BRACKET,FUEL TANK NO.1

€ 28.50

13

4456135F00
ref: 13

SPACER,FUEL TANK RR

€ 10.50

14

0910306060
ref: 14

BOLT(6X100)

€ 2.50

15

4457016G00
ref: 15

BRACKET,FUEL TANK RR UP

€ 12.50

16

4454216G00
ref: 16

CUSHION,FUEL TANK RR

€ 11.50

17

083193106B
ref: 17

NUT

€ 2.50

18

4457416G00
ref: 18

STAY,FUEL TANK

€ 11.50

19

4442317G00
ref: 19

HOSE,WATER DRAIN

€ 13.50

20

0940406433
ref: 20

CLAMP(L:80)

€ 3.00

21

4442416G00
ref: 21
44424-18G00

HOSE,FUEL TANK

€ 13.50

22

4419116G00
ref: 22

SHIELD,FUEL TANK HEAT

€ 179.00

23

0940406433
ref: 23

CLAMP(L:80)

€ 3.00

24-1

4427116G10
ref: 24-1

SHEET,HEAT SHIELD RUBBER

€ 50.50

24-2

4427117G00
ref: 24-2

SHEET,HEAT SHIELD RUBBER

€ 47.50

25

4454516G00
ref: 25

CUSHION,FUEL TANK

€ 6.00

26

6824116G00
ref: 26

MOLDING

€ 4.50
