Buy Suzuki SV Parts Online


MAGNETO

SV650A 2008 (K8) USA (E03)

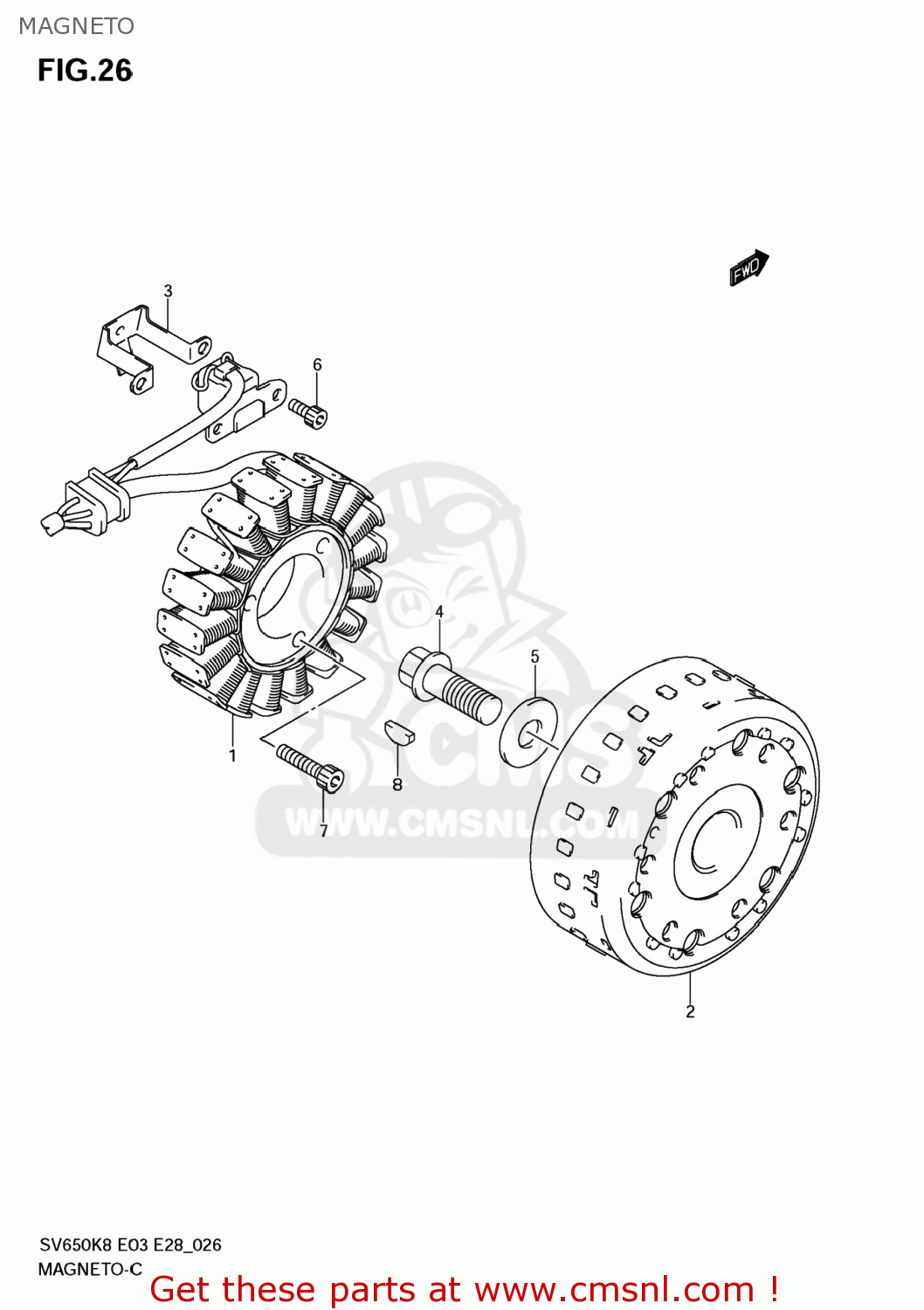

Magneto diagram SV650A 2008 (K8) USA (E03)

MAGNETO SV650A 2008 (K8) USA (E03)
MAGNETO SV650A 2008 (K8) USA (E03)
MAGNETO SV650A 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3210117G00
ref: 1
STATOR ASSY
3210117G00
€ 503.00
2
3210217G01
ref: 2
ROTOR ASSY
3210217G01
€ 326.50
3
3237119F00
ref: 3
CLAMP,MAGNETO LEAD
€ 6.00
4
0910312004
ref: 4
BOLT(12X40)
0910312004
€ 3.00
5
0916012036
ref: 5
WASHER(12X30X3)
0916012036
€ 3.00
6
071300512B
ref: 6
BOLT
071300512B
€ 2.50
7
071300630B
ref: 7
BOLT
071300630B
€ 3.00
8
0942004008
ref: 8
KEY
0942004008
€ 3.50
