WATER PUMP
SV650A 2008 (K8) USA (E03)

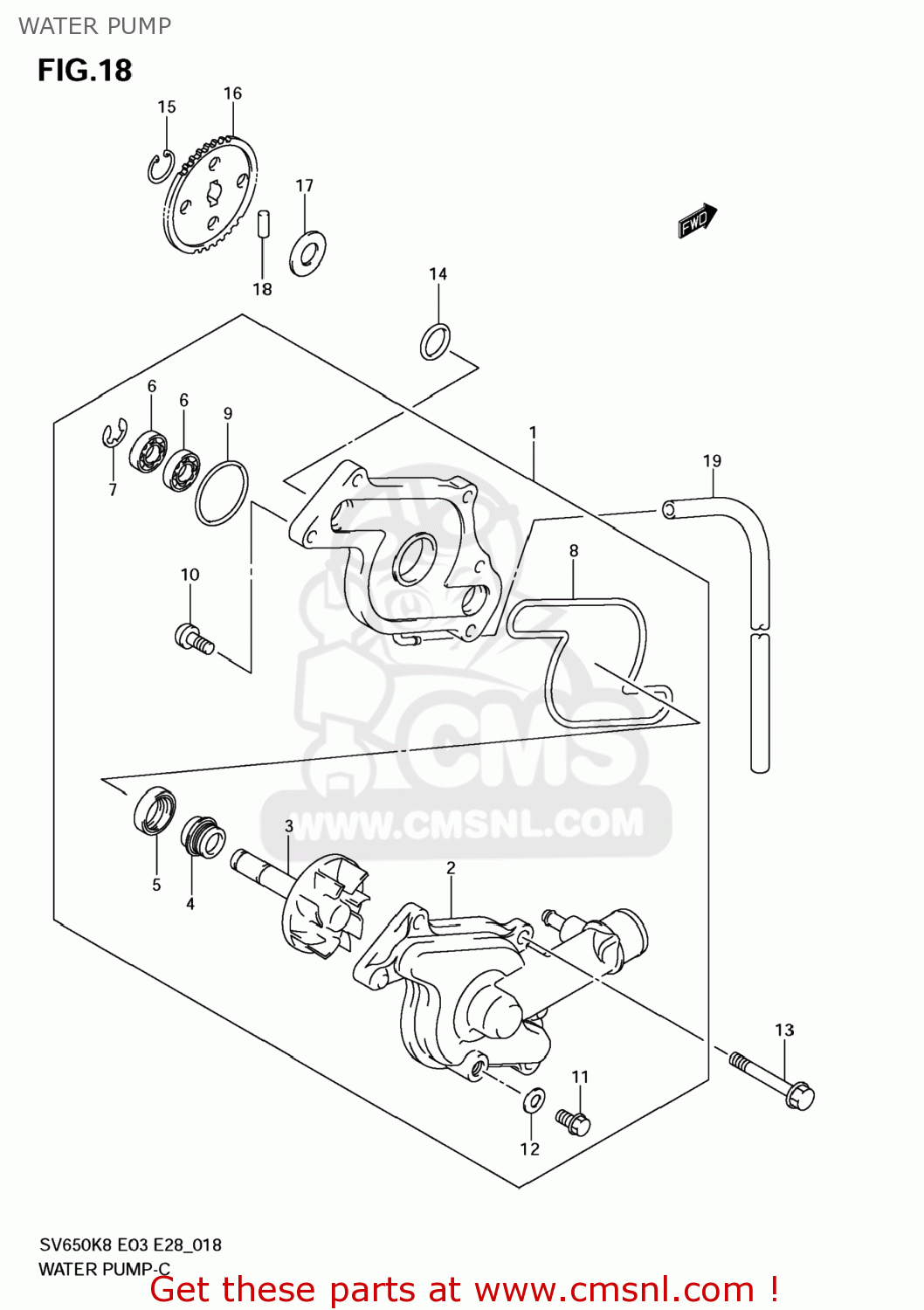

Water pump diagram SV650A 2008 (K8) USA (E03)
WATER PUMP SV650A 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740019F50
ref: 1
PUMP ASSY,WATER
€ 393.50
2
1741119F50
ref: 2
CASE,WATER PUMP
€ 120.50
3
1749119F40
ref: 3
IMPELLER/SHAFT
€ 31.50
4
1747002F10
ref: 4
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
0811069000
ref: 6
BEARING
€ 18.50
7
0833211086
ref: 7
08332-1108A
E RING
€ 2.00
8
1741819F00
ref: 8
O RING
€ 6.00
9
1743533400
ref: 9
O RING,WATER PUMP HOLDER
€ 13.00
10
0211206163
ref: 10
02112-0616A
SCREW 6X16
€ 2.00
11
1741520920
ref: 11
BOLT,DRAIN
€ 5.00
12
0916808016
ref: 12
GASKET(8.2X14X1) (NAS)
€ 1.00
13
0910306216
ref: 13
BOLT(6X55)
€ 2.50
14
0928022001
ref: 14
O RING(D:2.4,ID:21.8)
€ 2.00
15
0833131106
ref: 15
08331-3110A
CIRCLIP,10MM
€ 2.00
16
1746119F00
ref: 16
GEAR,WATER PUMP DRIVEN
€ 37.50
17
0918110158
ref: 17
SHIM(10X18X0.5)
€ 2.50
18
0926104002
ref: 18
ROLLER(4X13.8)
€ 1.50
19
0935235653600
ref: 19
HOSE(3.5X6.5X600)
€ 12.50
