ELECTRICAL

SV650A 2008 (K8) USA (E03)

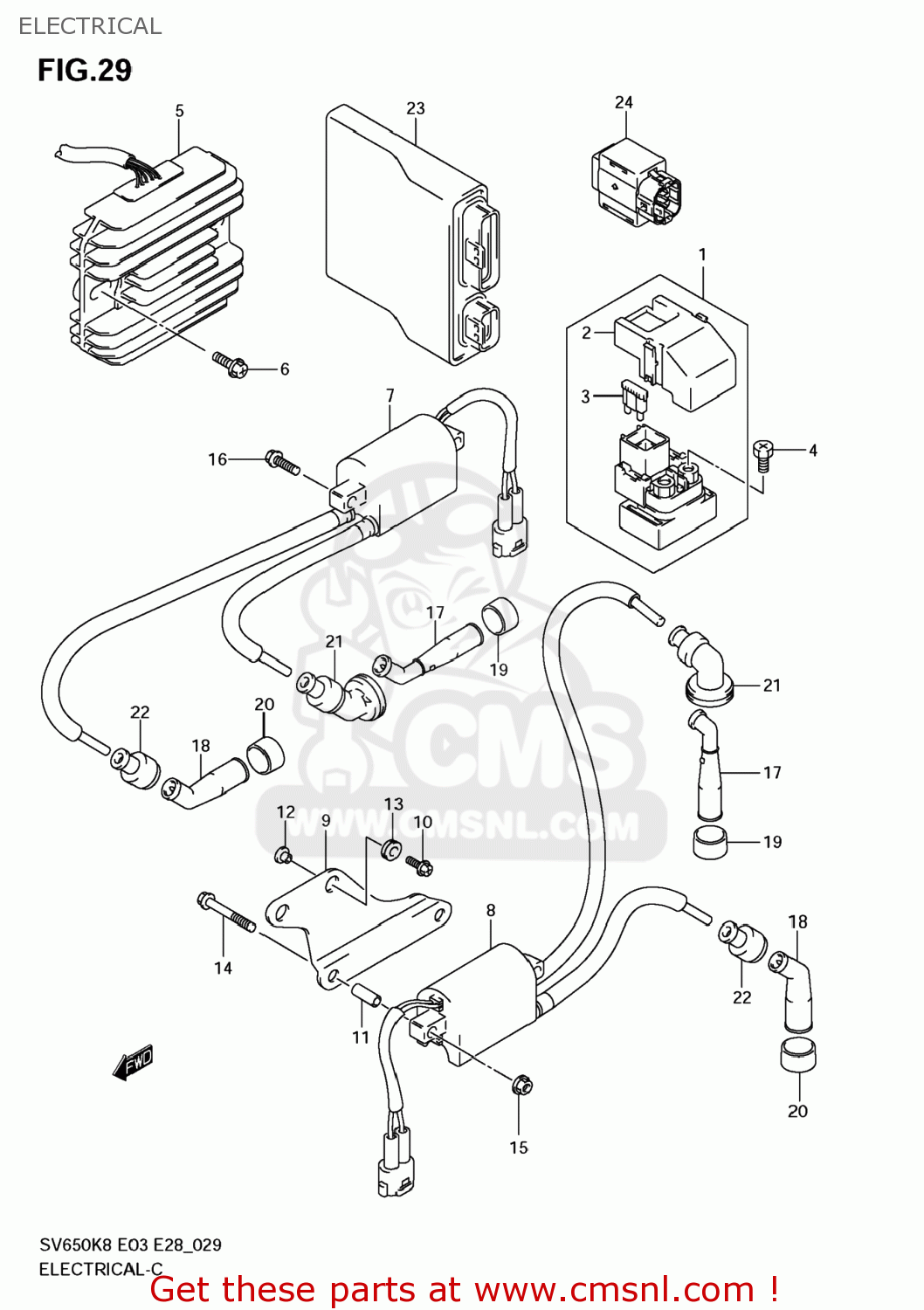

Electrical diagram SV650A 2008 (K8) USA (E03)

ELECTRICAL SV650A 2008 (K8) USA (E03)
ELECTRICAL SV650A 2008 (K8) USA (E03)
ELECTRICAL SV650A 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
3180006G00
€ 78.50
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280016G00
ref: 5
32800-16G01
RECTIFIER ASSY
€ 301.00
6
021620620B
ref: 6
SCREW
€ 2.00
7
3341017GA0
ref: 7
COIL ASSY,IGNITION FR
3341017GA0
€ 142.50
8
3342017GA0
ref: 8
COIL ASSY,IGNITION RR
€ 138.50
9
3342417GA0
ref: 9
BRACKET,IGNITION COIL RR
€ 9.50
10
0911606130
ref: 10
BOLT(6X16)
0911606130
€ 2.00
11
0918006195
ref: 11
SPACER(6.4X10X18)
0918006195
€ 3.50
12
0918006325
ref: 12
SPACER(6.2X8.4X6.9)
0918006325
€ 3.00
13
0932006017
ref: 13
CUSHION
0932006017
€ 3.00
14
015470640A
ref: 14
BOLT
015470640A
€ 2.50
15
083161006A
ref: 15
NUT
083161006A
€ 2.50
16
015470625A
ref: 16
BOLT
015470625A
€ 2.50
17
3351017G00
ref: 17
CAP ASSY,SPARK PLUG
3351017G00
€ 28.50
18
3351020E00
ref: 18
CAP ASSY,SPARK PLUG
3351020E00
€ 22.50
19
3354123E10
ref: 19
SEAL,SPARK PLUG
3354123E10
€ 5.00
20
3354147D00
ref: 20
SEAL,SPARK PLUG
3354147D00
€ 7.00
21
3354217G01
ref: 21
SEAL,HIGH TENSION CORD CTR
3354217G01
€ 5.50
22
3354238B00
ref: 22
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
23-1
3292017GC0
ref: 23-1
32920-17GC1
CONTROL UNIT, FI
€ 882.00
23-2
3292017GD0
ref: 23-2
CONTROL UNIT,FI
€ 882.00
24
3396006G10
ref: 24
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
