REAR WHEEL (SV650AK8/SAK8/AK9/SAK9)

SV650A 2008 (K8) USA (E03)

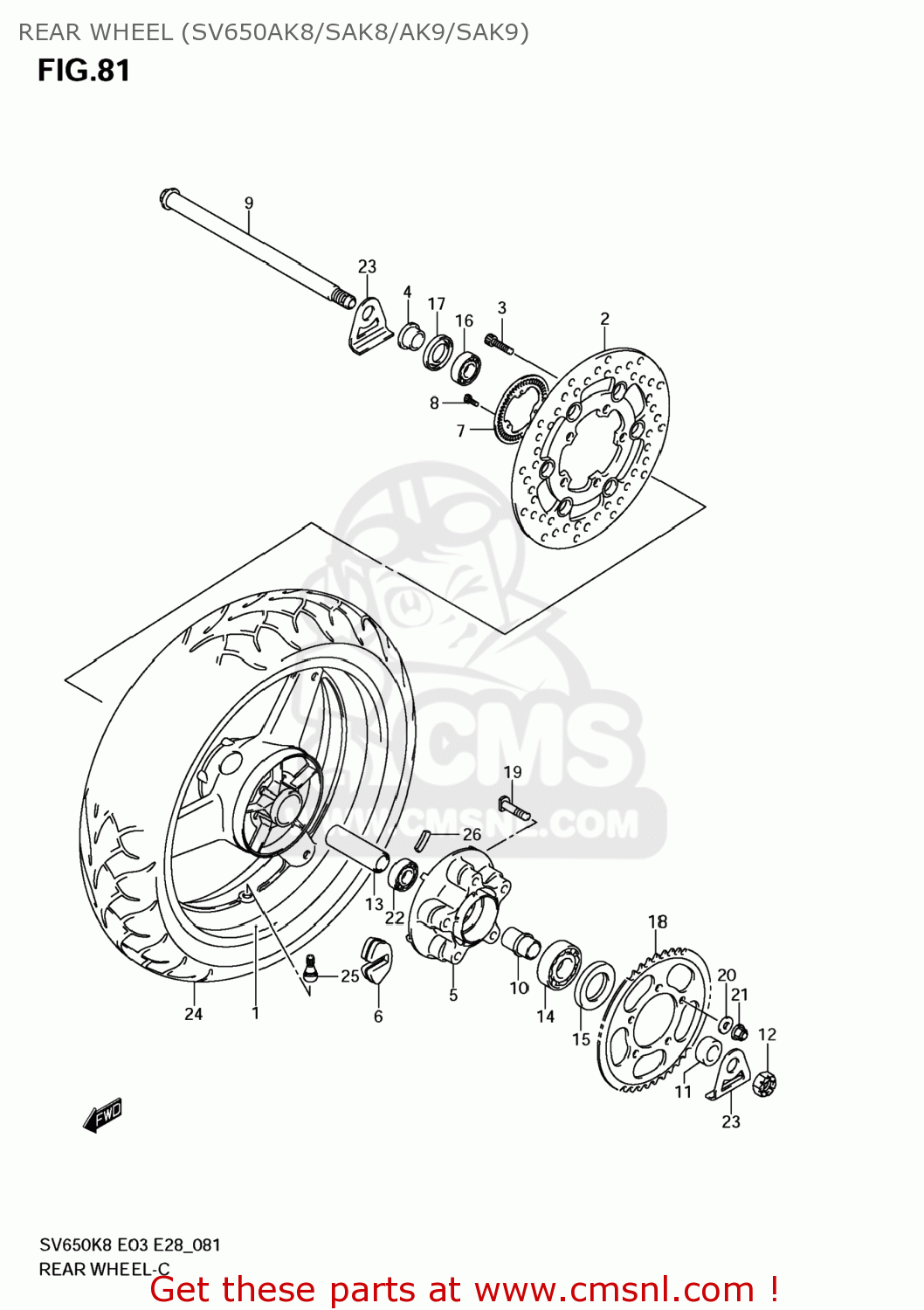

Rear wheel (sv650ak8/sak8/ak9/sak9) diagram SV650A 2008 (K8) USA (E03)

REAR WHEEL (SV650AK8/SAK8/AK9/SAK9) SV650A 2008 (K8) USA (E03)

REAR WHEEL (SV650AK8/SAK8/AK9/SAK9) SV650A 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6411108F40YMY
ref: 1-1

WHEEL,RR(17M/CXMT4.50)

€ 779.00

1-1

6411108F40YMY
ref: 1-1

WHEEL,RR(17M/CXMT4.50)

€ 779.00

1-2

6411108F40019
ref: 1-2

WHEEL,RR(17M/CXMT4.50)

€ 1,059.00

1-2

6411108F40019
ref: 1-2

WHEEL,RR(17M/CXMT4.50)

€ 1,059.00

2

6921138G00
ref: 2

DISC,RR BRAKE

€ 129.50

3

0910608148
ref: 3

BOLT(8X33)

€ 6.00

4

6474122D00
ref: 4

SPACER,RR AXLE,R

€ 9.50

5

6461119F00
ref: 5

DRUM,RR SPROCKET MOUNTING

€ 140.00

6

6465127A01
ref: 6

ABSORBER,RR HUB SHOCK

€ 6.00

7

6416217G00
ref: 7

RING,SPEED SENSOR RR(50T)

€ 14.00

8

0713005127
ref: 8

BOLT

€ 2.50

9

6471117G00
ref: 9

AXLE,RR

€ 108.00

10

6473327A00
ref: 10

RETAINER,RR HUB BEARING

€ 18.50

11

6475126E00
ref: 11

SPACER,RR AXLE,L

€ 20.50

12

083193118A
ref: 12

NUT

€ 17.50

13

0918020062
ref: 13

SPACER(20.5X28X88)

€ 11.50

14

0926220042
ref: 14

BEARING(20X47X14)

€ 21.00

15

0928528001
ref: 15

SEAL,OIL(28X47X7)

€ 11.50

16

0926225073
ref: 16

BEARING(25X62X17)

€ 21.50

17

0928535001
ref: 17

SEAL,OIL(35X62X8)

€ 9.00

18

6451132C00
ref: 18

SPROCKET,RR(NT:45-525)

€ 95.50

19

0911910043
ref: 19

BOLT(10X47)

€ 4.50

20

0916010039
ref: 20

WASHER(10.5X22X2.3)

€ 2.50

21

083193110A
ref: 21

NUT

€ 3.00

22

0812362047
ref: 22

BEARING

€ 17.00

23

6144517G00
ref: 23

WASHER,CHAIN ADJUSTER

€ 9.00

24

6511017G00
ref: 24

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

24

6511017G00
ref: 24

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

25

4313024A00
ref: 25

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

26-1

5541139G00
ref: 26-1

BALANCER,WHEEL(10G)

€ 5.50

26-2

5541239G00
ref: 26-2

BALANCER,WHEEL(20G)

€ 5.50

26-3

5541339G00
ref: 26-3

BALANCER,WHEEL(30G)

€ 6.00
