RADIATOR
SV650A 2008 (K8) USA (E03)

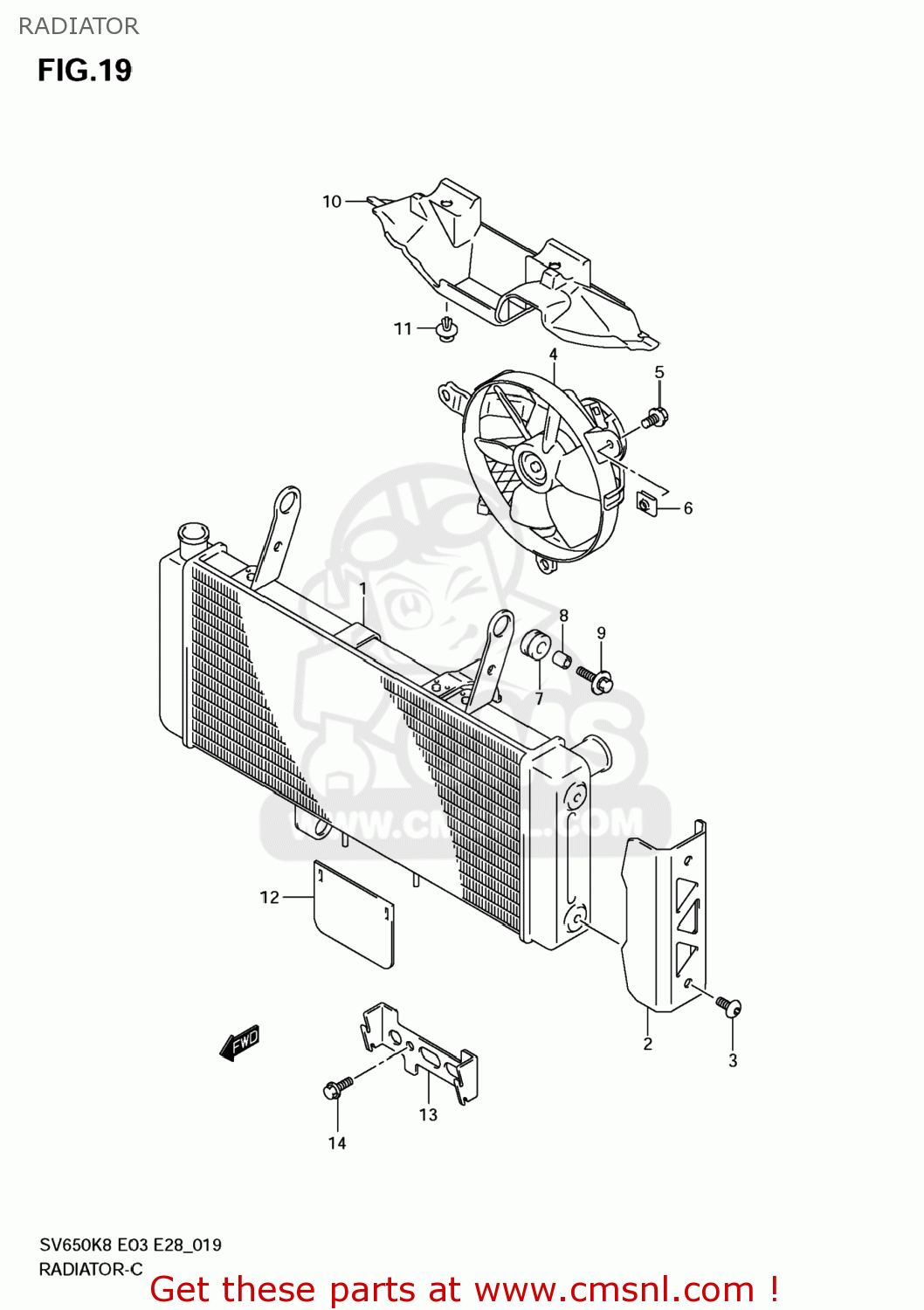

Radiator diagram SV650A 2008 (K8) USA (E03)
RADIATOR SV650A 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771017G40
ref: 1
RADIATOR ASSY,WATER
€ 864.50
2
1776117G00
ref: 2
COVER,RADIATOR
€ 32.00
3
0913906027
ref: 3
SCREW(6X12)
€ 3.00
4
1780017G40
ref: 4
FAN ASSY,RADIATOR
€ 674.50
5
015500610B
ref: 5
BOLT
€ 2.50
6
1771240F00
ref: 6
NUT,FAN ASSY
€ 3.50
7
0932010051
ref: 7
CUSHION
€ 3.50
8
0918006290
ref: 8
SPACER(6.5X10X12)
€ 2.50
9
0911806097
ref: 9
BOLT(6X25)
€ 2.50
10
1777117G11
ref: 10
SHIELD,RADIATOR HEAT
€ 15.00
11
0940906313
ref: 11
CLIP
€ 2.50
12
1778117G00
ref: 12
RUBBER,RADIATOR UNDER
€ 6.50
13
1774117G00
ref: 13
BRACKET,RADIATOR UNDER RUBBER
€ 3.50
14
015500610B
ref: 14
BOLT
€ 2.50
