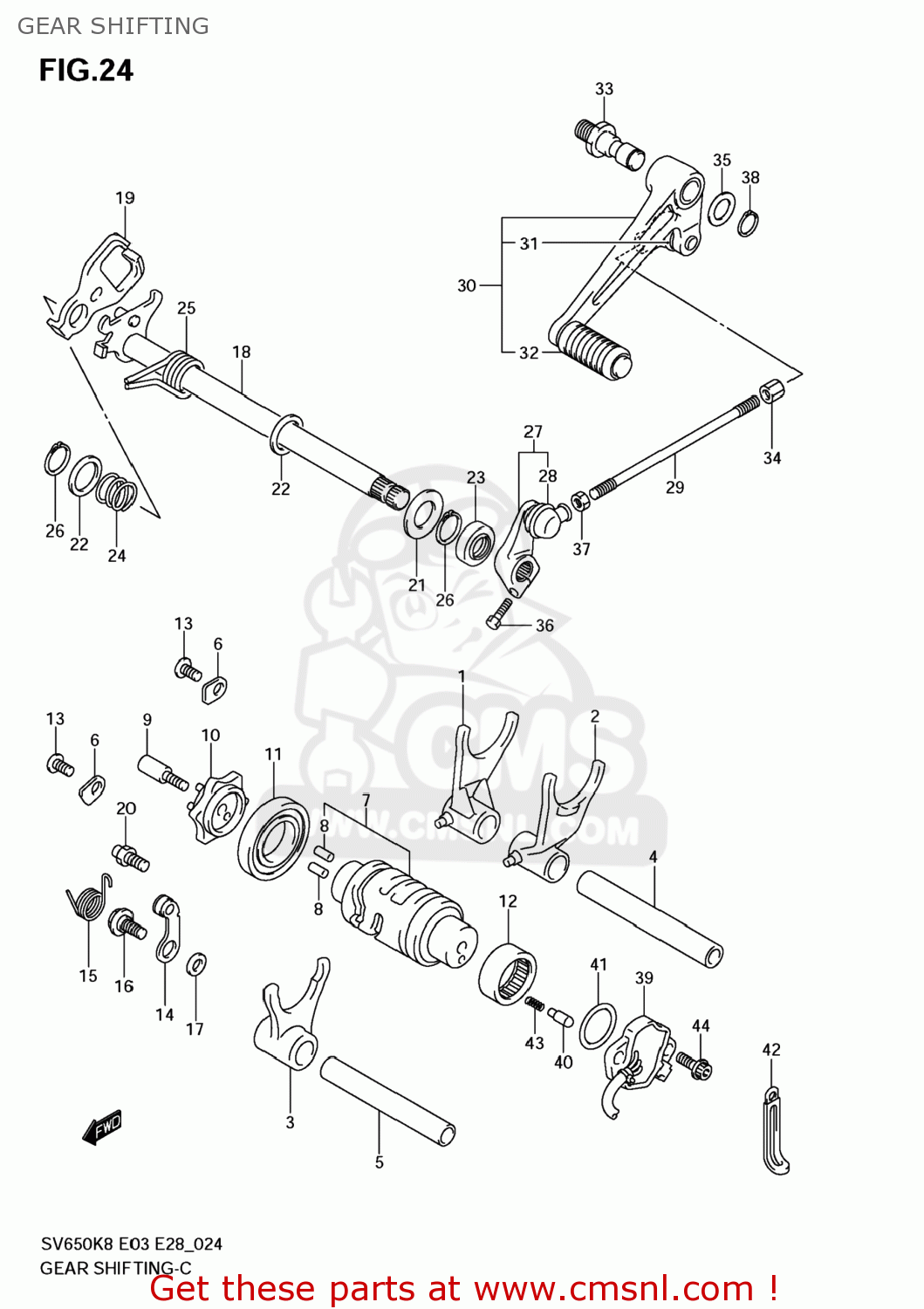

GEAR SHIFTING

ref

part #

description

quantity

1

2521142E10
ref: 1

FORK,GEAR SHIFT NO.1

€ 95.00

2

2522142E10
ref: 2

FORK,GEAR SHIFT NO.2

€ 95.00

3

2523142E10
ref: 3

FORK,GEAR SHIFT NO.3

€ 79.50

4

2541126D01
ref: 4

SHAFT,GEAR SHIFT FORK

€ 16.00

5

2541144B00
ref: 5

SHAFT,GEAR SHIFT FORK NO.1

€ 19.50

6

2474121A00
ref: 6

RETAINER

€ 2.00

7

2531019F00
ref: 7

CAM,GEAR SHIFT

€ 75.00

8

0422104089
ref: 8

PIN

€ 1.50

9

2531242F00
ref: 9
25312-42F01

BOLT,GEAR SHIF

€ 5.50

10

2538119F10
ref: 10

PLATE,GEAR SHIFT CAM

€ 43.50

11

0926225006
ref: 11

BEARING(25X47X8)

€ 24.00

12

0926325018
ref: 12

BEARING(25X32X12)

€ 17.50

13

021120612B
ref: 13

SCREW

€ 1.50

14

2535035F00
ref: 14

STOPPER,SHIFT CAM

€ 18.00

15

2535535F01
ref: 15

SPRING,SHIFT

€ 2.50

16

0911106041
ref: 16

BOLT(6X14.3)

€ 3.00

17

0821106141
ref: 17

WASHER

€ 2.50

18

2551019F10
ref: 18

SHAFT,GEAR SHIFT

€ 75.50

19

2551206G00
ref: 19

PLATE,GEAR SHIFT CAM DRIVE

€ 36.00

20

2567101011
ref: 20

STOPPER,GEAR SHIFT ARM

€ 3.00

21

0916014016
ref: 21

WASHER(14X29X0.8)

€ 1.50

22

0918114167
ref: 22

SHIM(14X22X1)

€ 3.50

23

0928314006
ref: 23

SEAL,OIL(14X22X6)

€ 6.50

24

0944017009
ref: 24

SPRING

€ 1.50

25

0944420001
ref: 25

SPRING

€ 5.00

26

083313114A
ref: 26

CIRCLIP

€ 2.00

27

2552017G10
ref: 27

ARM,GEAR SHIFT LINK

€ 52.00

28

2552647000
ref: 28

COVER,DUST

€ 3.50

29

2552521E50
ref: 29

ROD,GEAR SHIFT LINK

€ 12.00

30

2560017G00
ref: 30

GEAR SHIFTING LEVER

€ 68.00

31

2552647000
ref: 31

COVER,DUST

€ 3.50

32

2565220C00
ref: 32

RUBBER,GEAR SHIFT PEDAL

€ 8.00

33

2561703F10
ref: 33

SHAFT,GEAR SHIFT LEVER

€ 10.50

34

0914006025
ref: 34

NUT

€ 2.00

35

0916012011
ref: 35

WASHER(12.5X20X1)

€ 1.50

36

015000620B
ref: 36

BOLT

€ 1.50

37

0831000067
ref: 37

NUT

€ 2.50

38

083313112A
ref: 38

CIRCLIP

€ 2.00

39

3773020F00
ref: 39

BASE ASSY,GEAR SHIFT TERMINAL

€ 119.50

40

0920905011
ref: 40

PIN(5X15.5)

€ 2.00

41

0928026005
ref: 41

O RING(D:2.4,ID:26.2)

€ 2.50

42

0940408419
ref: 42

CLAMP(L:80)

€ 2.00

43

0944004010
ref: 43

SPRING

€ 1.50

44

071200516A
ref: 44

BOLT

€ 1.50
