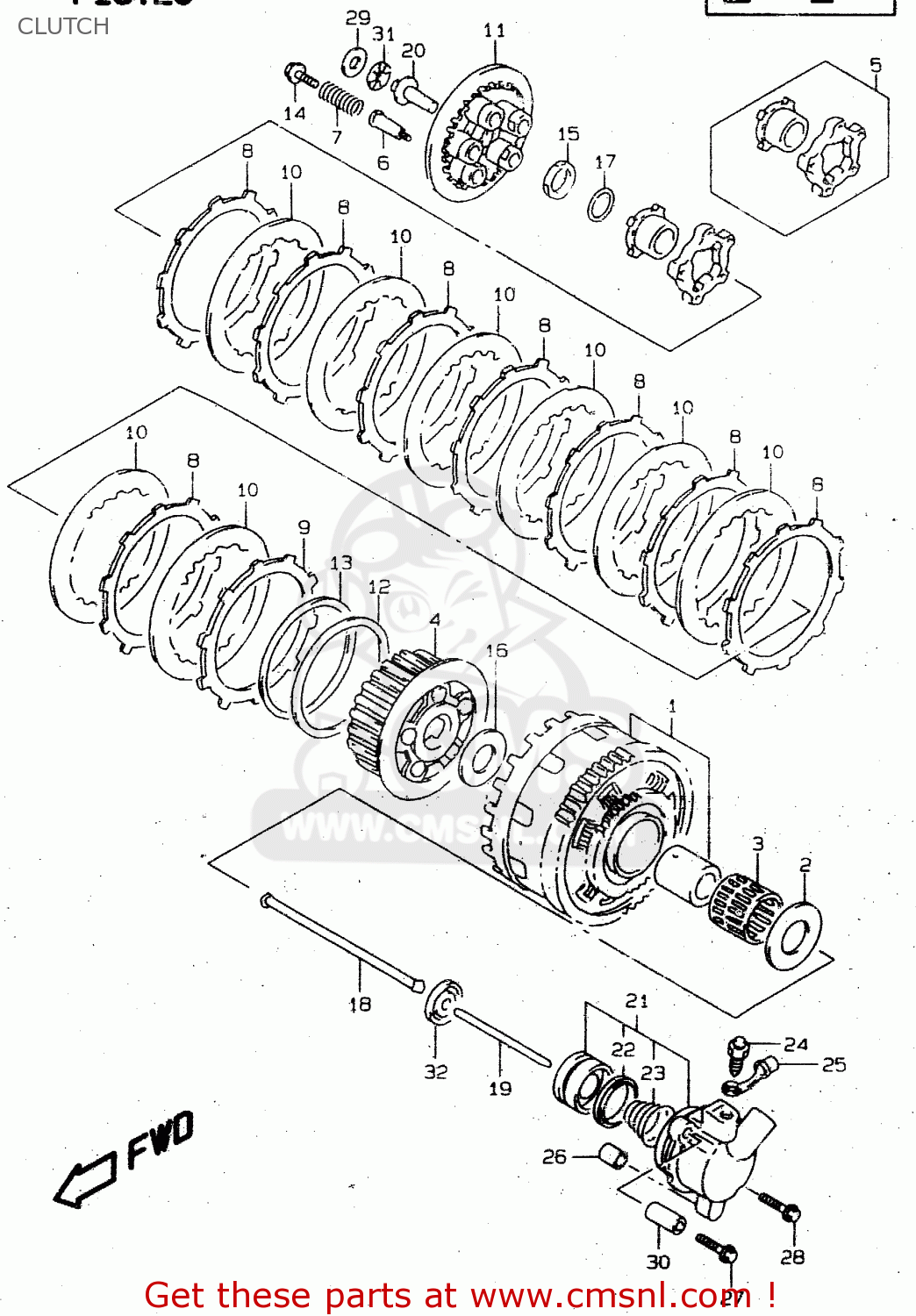

CLUTCH

ref

part #

description

quantity

1

2120002820
ref: 1

GEAR ASSY,PRI DRIVEN

€ 382.50

2

0916025071
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141002F10
ref: 4

HUB,CLUTCH SLEEVE

€ 145.50

5

2161002F12
ref: 5

CAM SET,CLUTCH

€ 174.00

6

2148102F10
ref: 6

BOLT,SPRING SUPPORT

€ 9.50

7

2141302F10
ref: 7

SPRING,CLUTCH

€ 7.50

8

2144102F10
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.00

9

2144202F10
ref: 9

PLATE,CLUTCH DRIVE NO (NAS)

€ 20.00

10

2145102F10
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 9.00

11

2146202F10
ref: 11

DISC,CLUTCH PRESSURE

€ 58.00

12

2147102F10
ref: 12

SEAT,WAVE WASHER

€ 16.50

13

2147202F10
ref: 13

WASHER,CLUTCH PLATE WAVE

€ 18.00

14

2148202F10
ref: 14

BOLT,CLUTCH SPRING

€ 3.50

15

0915924010
ref: 15

NUT

€ 11.00

16

0916025072
ref: 16
25X50X2.5

WASHER(25X50X2.5)

€ 9.00

17

0916424006
ref: 17
24.2X35X2

WASHER

€ 4.00

18

2311038B00
ref: 18

ROD,CLUTCH PUSH,R

€ 19.00

19

2311124A01
ref: 19

ROD,CLUTCH PUSH,L

€ 15.00

20

2312138B00
ref: 20

PIECE,CLUTCH PUSH

€ 25.00

21

2316002F10
ref: 21

CYLINDER,CLUTCH RELEASE

€ 134.00

22

2316310F00
ref: 22

CUP

€ 5.00

23

2316410F00
ref: 23

SPRING

€ 3.00

24

5912101A00
ref: 24

BLEEDER

€ 8.50

25

5912201A00
ref: 25

CAP,BLEEDER

€ 4.50

26

0422108149
ref: 26

PIN

€ 2.50

27

0713006653
ref: 27

BOLT

€ 4.00

28

0713006703
ref: 28

BOLT

€ 4.00

29

0916015045
ref: 29
15.5X28X1

WASHER(15.5X28X1)

€ 4.00

30

0918006322
ref: 30

SPACER(6.2X12X50)

€ 6.00

31

0926315003
ref: 31
15X28X2

BEARING(15X28X2)

€ 7.00

32

0928506015
ref: 32
6X34X5.5

SEAL,OIL(6X34X5.5)

€ 8.50
