HEADLAMP (E24)

TL1000R 1999 (X)

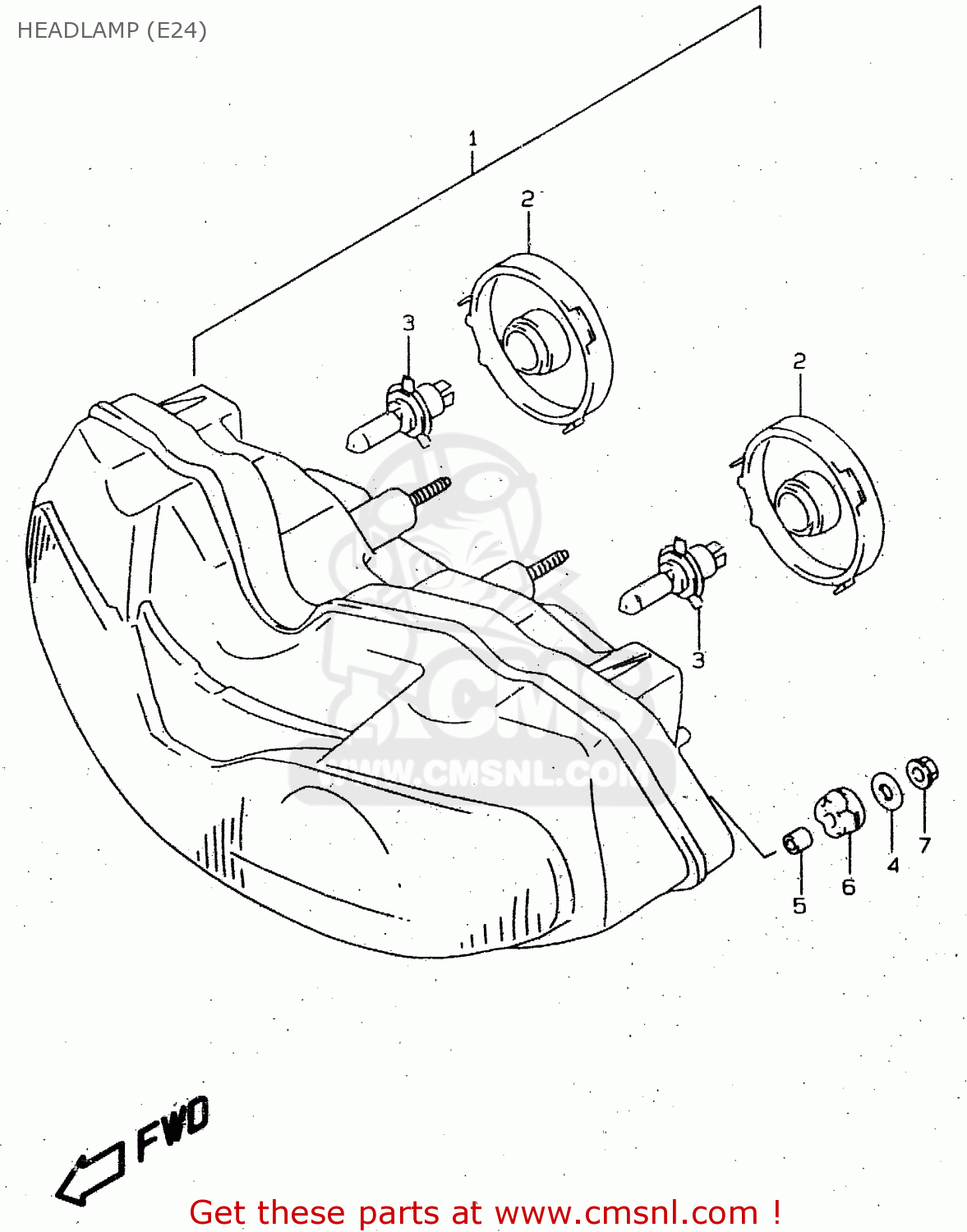

Headlamp (e24) diagram TL1000R 1999 (X)

HEADLAMP (E24) TL1000R 1999 (X)

HEADLAMP (E24) TL1000R 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3510002F80999
ref: 1

HEADLAMP ASSEMBLY

€ 171.00

2

3512502F00
ref: 2

COVER,SOCKET

€ 14.00

3

0947112185
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0916006088
ref: 4

WASHER(6.5X20X1.6)

€ 2.00

5

0918006268
ref: 5

SPACER(6.5X9X13.5)

€ 2.00

6

0932009015
ref: 6

CUSHION

€ 2.50

7

0831610063
ref: 7

NUT

€ 2.50
