CYLINDER

TL1000R 1999 (X)

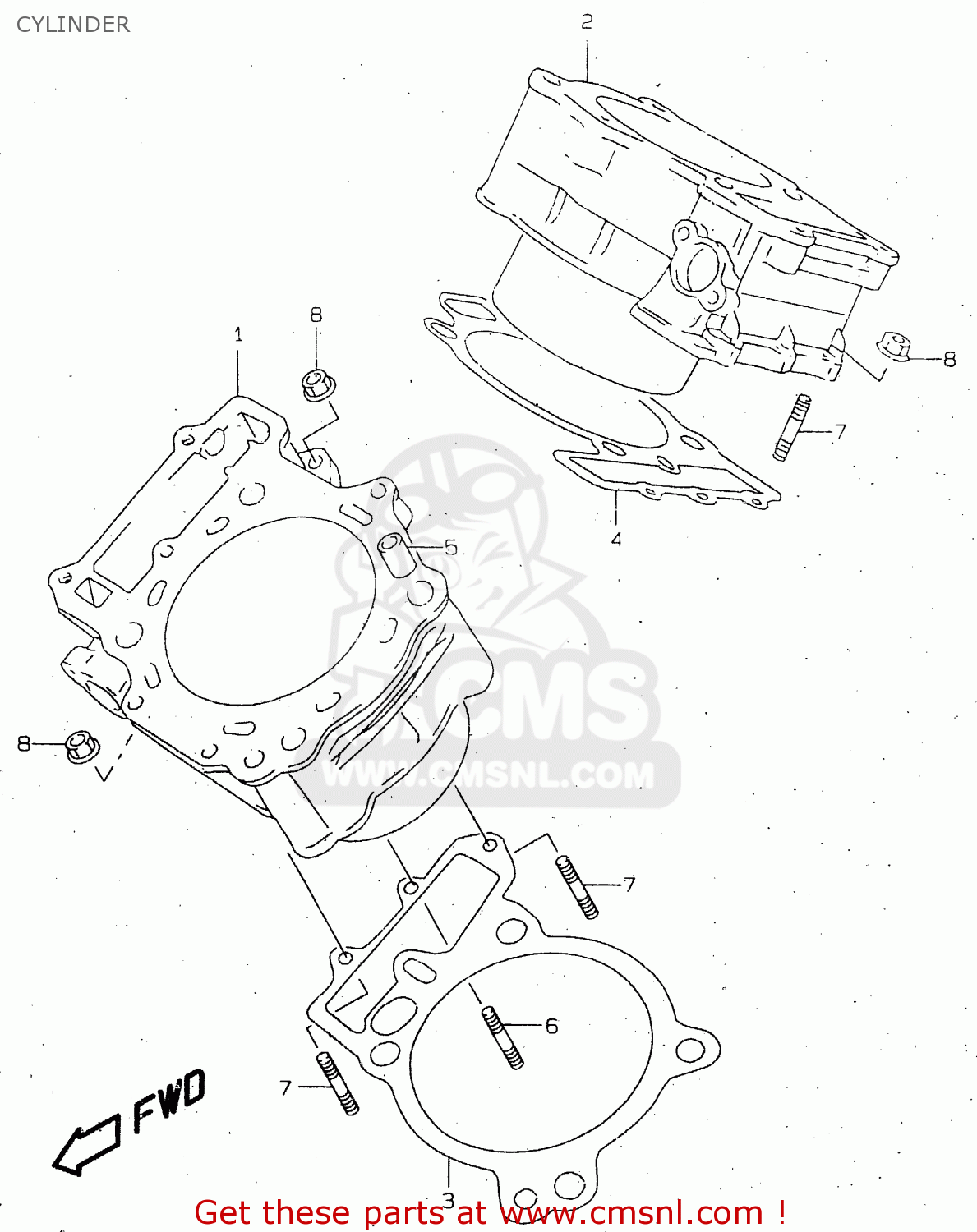

Cylinder diagram TL1000R 1999 (X)

CYLINDER TL1000R 1999 (X)

CYLINDER TL1000R 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

1121102F010F0
ref: 1

CYLINDER,FRONT

€ 1,113.50

2

1122102F010F0
ref: 2

CYLINDER,REAR

€ 663.00

3

1124102F01
ref: 3

GASKET,CYLINDER FR (NAS)

€ 19.50

4

1124202F01
ref: 4

GASKET,CYLINDER RR (NAS)

€ 19.50

5

0421113189
ref: 5

PIN

€ 2.50

6

0910806118
ref: 6

STUD BOLT (L:20)

€ 2.00

7

0142106203
ref: 7

STUD,M6X1X32

€ 2.50

8

0831610063
ref: 8

NUT

€ 2.50
