HEADLAMP

TL1000R 1999 (X)

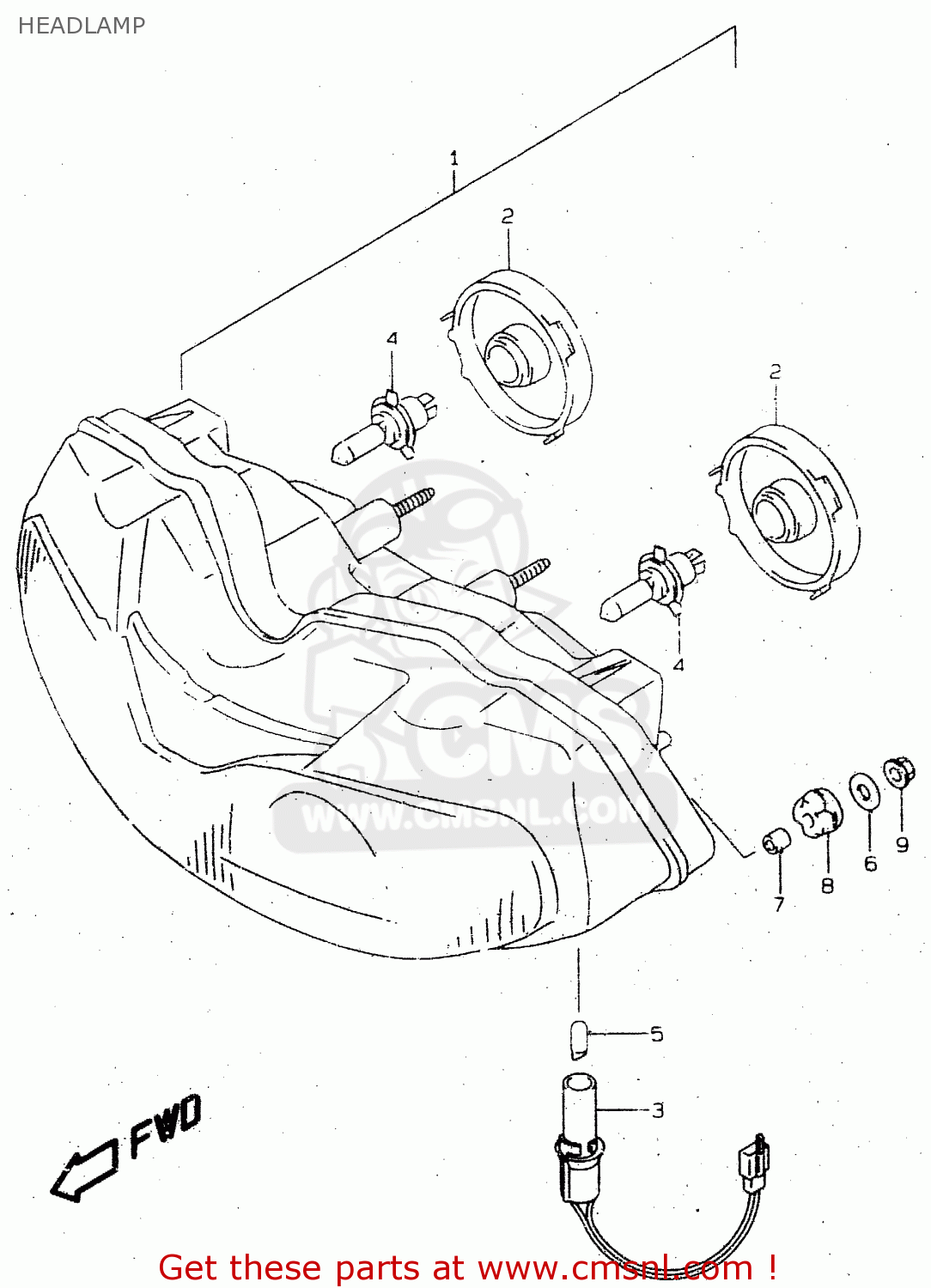

Headlamp diagram TL1000R 1999 (X)

HEADLAMP TL1000R 1999 (X)

HEADLAMP TL1000R 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3510002F70999
ref: 1

HEADLAMP ASSY

€ 388.50

2

3512502F00
ref: 2

COVER,SOCKET

€ 14.00

3

3611818E51
ref: 3

SOCKET ASSY

€ 15.00

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5

BULB(12V5W)

€ 1.50

6

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

7

0918006268
ref: 7

SPACER(6.5X9X13.5)

€ 2.00

8

0932009015
ref: 8

CUSHION

€ 2.50

9

0831610063
ref: 9

NUT

€ 2.50
