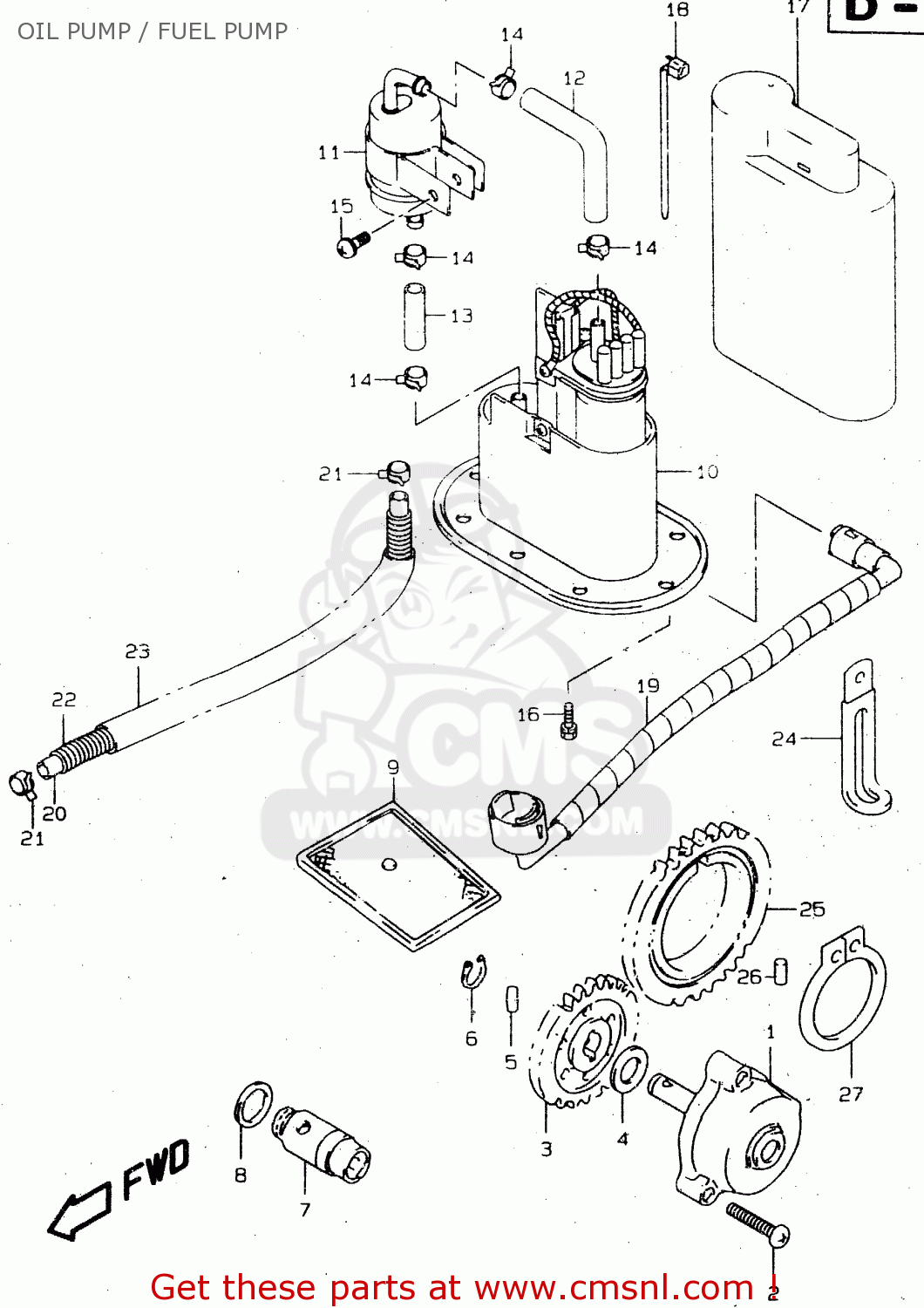

OIL PUMP / FUEL PUMP

ref

part #

description

quantity

1

1640002FB0
ref: 1

PUMP ASSY,ENGINE OIL

€ 135.50

2

0211206253
ref: 2

SCREW

€ 1.50

3

1633102F00
ref: 3

GEAR,OIL PUMP DRIVEN

€ 35.50

4

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

5

0926104009
ref: 5

PIN(4X15.8)

€ 1.50

6

0833131106
ref: 6

CIRCLIP,10MM

€ 2.00

7

1644033E00
ref: 7

VALVE ASSY,OIL RELIEF

€ 51.50

8

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9

1652032E00
ref: 9

STRAINER,ENGINE OIL

€ 11.50

10

1510002FA0
ref: 10

PUMP ASSEMBLY,FUEL

€ 1,087.00

11

1541002FA0
ref: 11

FILTER,FUEL

€ 47.50

12

1581233E50
ref: 12

HOSE,FUEL

€ 61.50

13

0935676145600
ref: 13
L:600->45

HOSE(7.6X14X600)

€ 30.50

14

0940113410
ref: 14

CLIP

€ 3.00

15

0211234083
ref: 15

SCREW

€ 2.00

16

0155005103
ref: 16

BOLT

€ 2.50

17

1519902FA0
ref: 17

COVER,FUEL PUMP

€ 45.00

18

0940714403
ref: 18

CLAMP(L:125)

€ 2.50

19

1581002FA0
ref: 19

HOSE,FUEL

€ 83.50

20

0935554115600
ref: 20
L:600->340

HOSE(5.4X11.4X600)

€ 20.00

21

0940111411
ref: 21

CLIP

€ 4.50

22

0944013037
ref: 22

(CA) SPRING

€ 10.00

23

1581902F00
ref: 23

PROTECTOR,FUEL RETURN NO,2

€ 5.00

24

0940406432
ref: 24

CLAMP(L:65)

€ 2.50

25

1632102F00
ref: 25

GEAR,ENG OIL PUMP DRIVE

€ 39.00

26

0926106002
ref: 26

PIN(6X6)

€ 1.50

27

0833131506
ref: 27

CIRCLIP

€ 4.50

all assemblies
