REAR CALIPER

TL1000R 1999 (X)

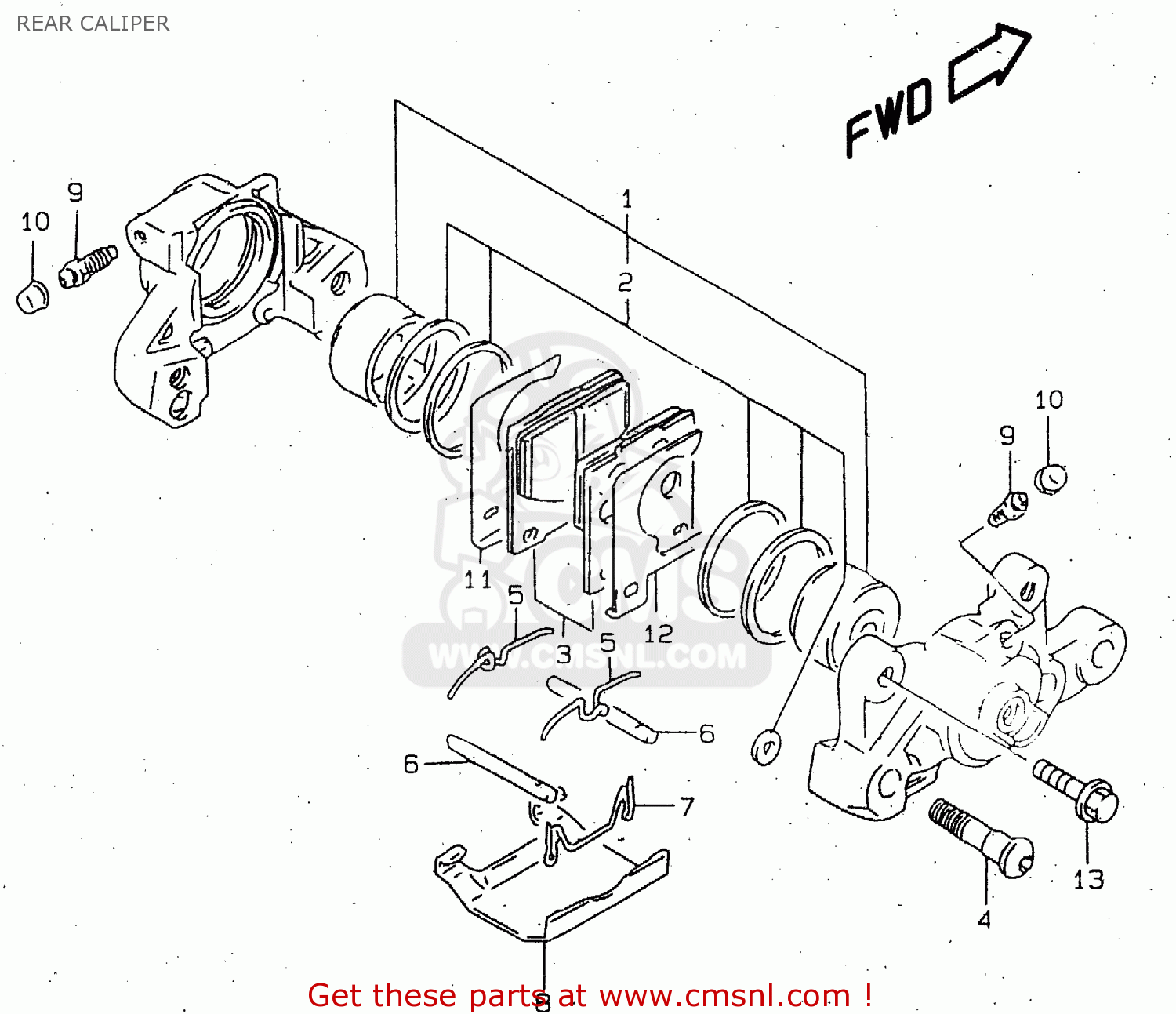

Rear caliper diagram TL1000R 1999 (X)

REAR CALIPER TL1000R 1999 (X)

REAR CALIPER TL1000R 1999 (X)

prices are in EUR

ref

part #

description

quantity

0

6910005CB0
ref: 0

CALIPER ASSEMBLY,REAR

€ 770.50

1

6910005850
ref: 1

PISTON SET

€ 122.50

2

6910032820
ref: 2

SEAL SET,PISTON

€ 26.00

3

6910005890
ref: 3

PAD SET (NAS)

€ 49.00

4

5914505C50
ref: 4

BOLT,HOUSING

€ 9.50

5

5914316700
ref: 5

SPRING

€ 7.50

6

6914146E01
ref: 6

PIN,PAD

€ 9.00

7

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

8

5915116701
ref: 8

COVER

€ 13.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5937120C00
ref: 11

SHIM,INNER

€ 7.50

12

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

13

0155008303
ref: 13

BOLT

€ 3.00
