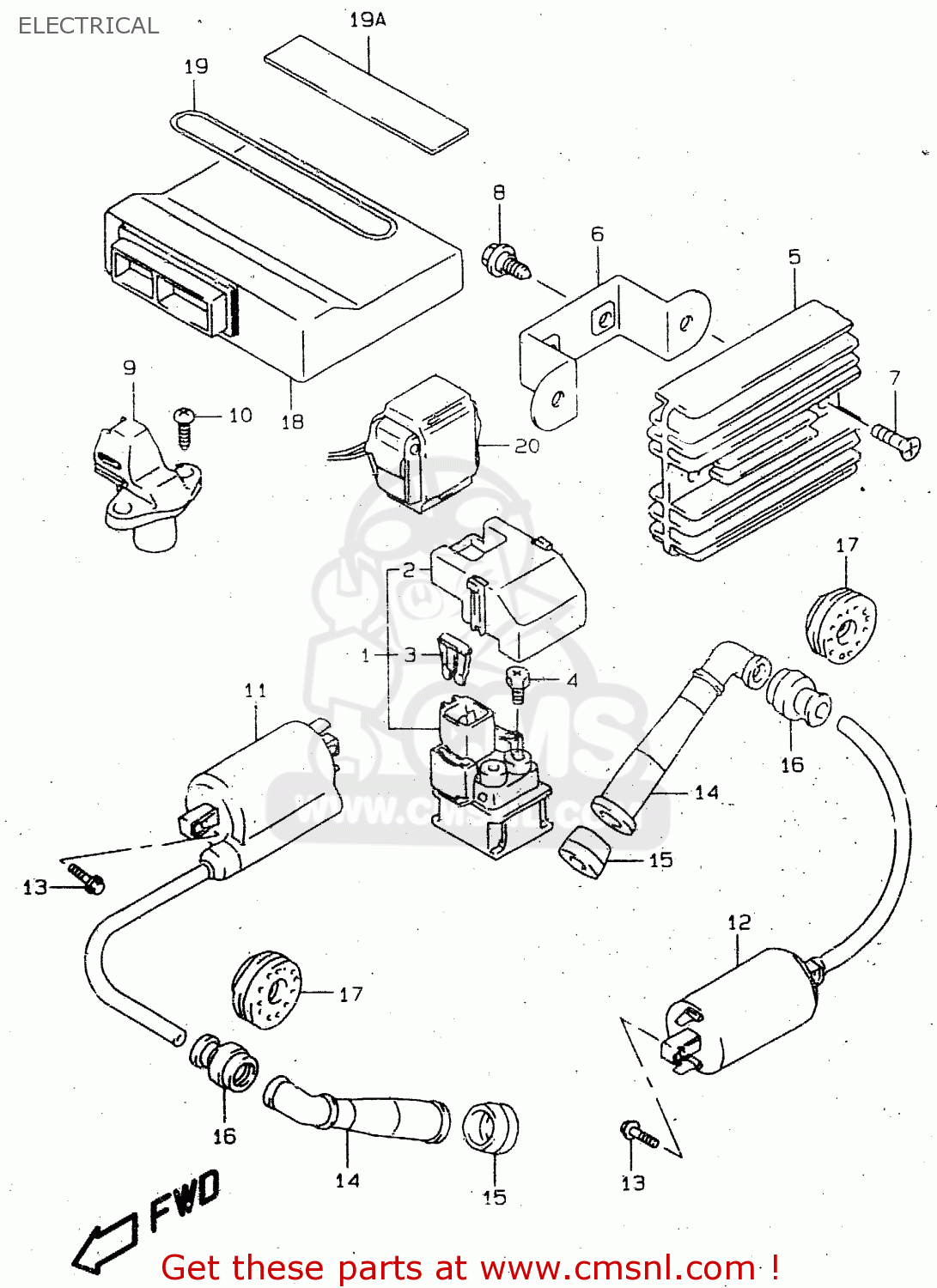

ELECTRICAL

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E20
ref: 2

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280002F00
ref: 5

RECTIFIER ASSY

€ 368.00

6

3283102F10
ref: 6

BRACKET,RECT FTG

€ 7.00

7

0913606093
ref: 7

SCREW (6X20)

€ 2.00

8

0911106066
ref: 8

BOLT(6X16)

€ 2.50

9

3216002F10
ref: 9

SENSOR ASSY,CAM POSITION

€ 127.50

10

0211206163
ref: 10

SCREW 6X16

€ 2.00

11

3341002F00
ref: 11

COIL ASSY,IGNITION

€ 112.50

12

3342038A11
ref: 12

COIL ASSY,IGNITION

€ 150.00

13

0216205203
ref: 13

SCREW, PRESSURE SENSOR

€ 2.00

14

3351048B10
ref: 14

CAP,SPARK PLUG

€ 29.50

15

3354123E01
ref: 15

SEAL,SPARK PLUG CAP

€ 7.00

16

3354238B00
ref: 16

SEAL,HIGH TENSION CORD

€ 4.50

17

3354302F00
ref: 17

COVER,SPARK PLUG CAP

€ 22.50

18

3292002FA0
ref: 18

CONTROL UNIT,FI

€ 1,198.50

18

3292002FB0
ref: 18
E4

CONTROL UNIT,FI

€ 1,055.50

18

3292002F00
ref: 18
E22

CONTROL UNIT,E

€ 1,042.50

18

3292002FE0
ref: 18
E18

CONTROL UNIT, FI

€ 1,295.50

19

3365112910
ref: 19

BAND,BATTERY

€ 6.00

19A

3365207D00
ref: 19A
CUT AS REQUIRED PROF

PROTECTOR(80X80X2)

€ 4.50

20

3396002F00
ref: 20

SENSOR ASSY,FUEL CUT

€ 85.00

all assemblies
