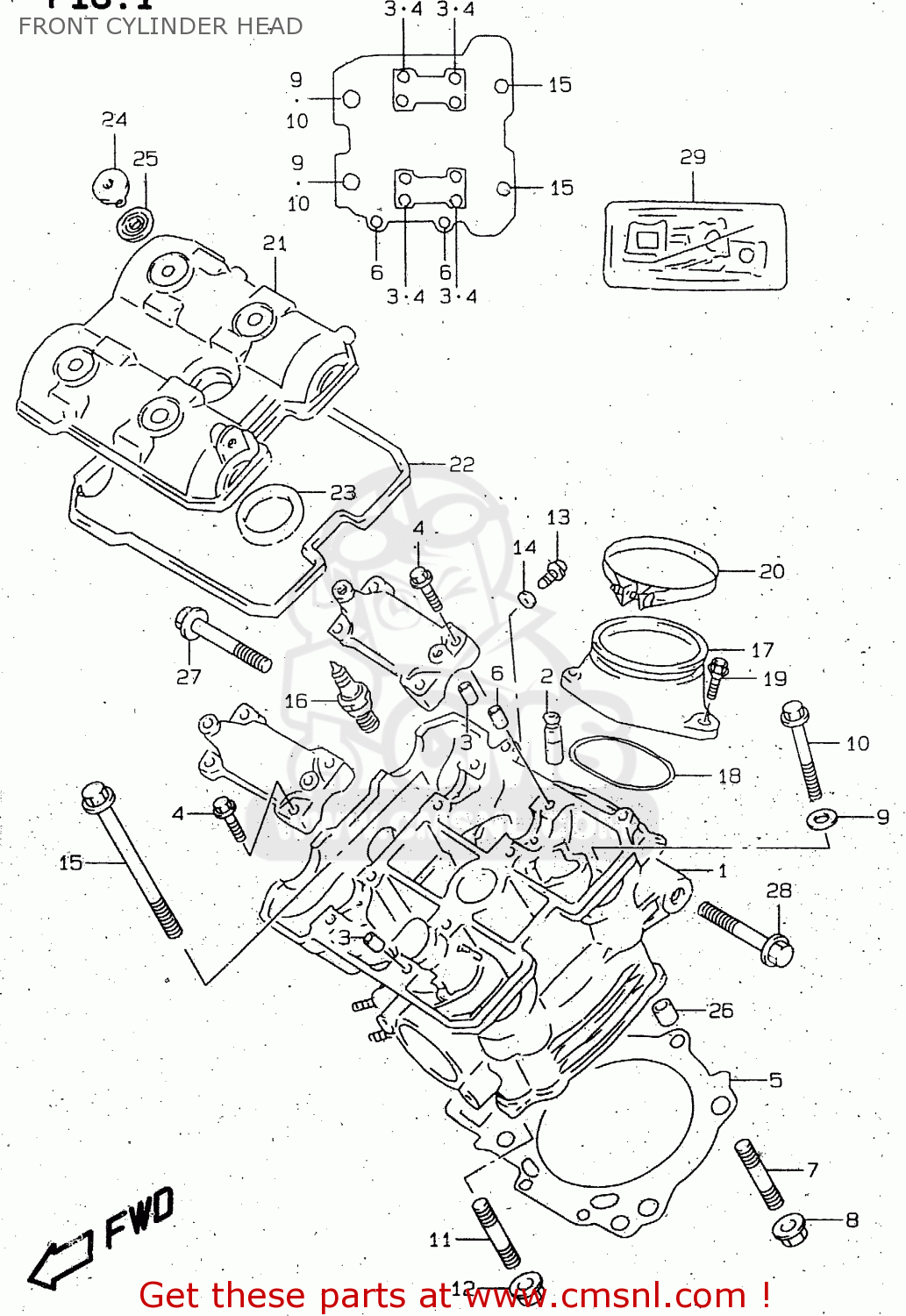

FRONT CYLINDER HEAD

ref

part #

description

quantity

1

1110002F21
ref: 1

HEAD ASSY,CYLINDER

€ 924.50

1

1110002F31
ref: 1
E18,E22

HEAD ASSY,CYLINDER

€ 1,066.50

2

1111532E70
ref: 2

GUIDE,VALVE

€ 18.50

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

1114102F01
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 42.00

6

0421113189
ref: 6

PIN

€ 2.50

7

0910808143
ref: 7

BOLT,STUD

€ 3.00

8

0831610083
ref: 8

NUT

€ 3.00

9

0916010082
ref: 9

WASHER(10.5X19X2)

€ 2.00

10

1116102F00
ref: 10

BOLT,CYLINDER HEAD(L:175)

€ 18.00

11

0910806096
ref: 11

BOLT,STUD

€ 2.50

12

0831610063
ref: 12

NUT

€ 2.50

13

0712006123
ref: 13

BOLT

€ 3.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0910306103
ref: 15

BOLT(6X70)

€ 2.50

16

0948200410
ref: 16

PLUG,SPARK(CR9EK)

€ 10.50

16

0948200411
ref: 16

PLUG,SPARK(U27ETR)

€ 8.50

16

0948200412
ref: 16
OPT

PLUG,SPARK(CR8EK)

€ 11.00

16

0948200413
ref: 16
OPT

PLUG,SPARK(U24ETR)

€ 11.00

16

0948200462
ref: 16
OPT

PLUG,SPARK(CR10EK)

€ 10.50

16

0948200463
ref: 16
OPT

PLUG,SPARK(U31ETR)

€ 10.50

17

1310102FA0
ref: 17

PIPE ASSY,INTAKE

€ 80.50

18

0928055005
ref: 18

O RING(D:2.4,ID:55.6)

€ 5.50

19

0912006010
ref: 19

SCREW

€ 3.00

20

0940270203
ref: 20

CLAMP

€ 6.00

21

1117102F00
ref: 21

COVER,CYLINDER HEAD FR

€ 167.50

22

1117302F00
ref: 22

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 29.00

23

1117817E00
ref: 23

GASKET,CYL HEAD COVER NO.2

€ 6.00

24

0910607009
ref: 24

BOLT(7X17.5)

€ 4.50

25

0916111008
ref: 25

WASHER(10.6X25.5X2.3)

€ 4.50

26

0920608001
ref: 26

PIN(6.2X8X11)

€ 2.00

27

0155010403
ref: 27

BOLT

€ 4.00

28

0155010403
ref: 28

BOLT

€ 4.00

29

1140102861
ref: 29

GASKET SET (NAS)

€ 259.50

all assemblies
