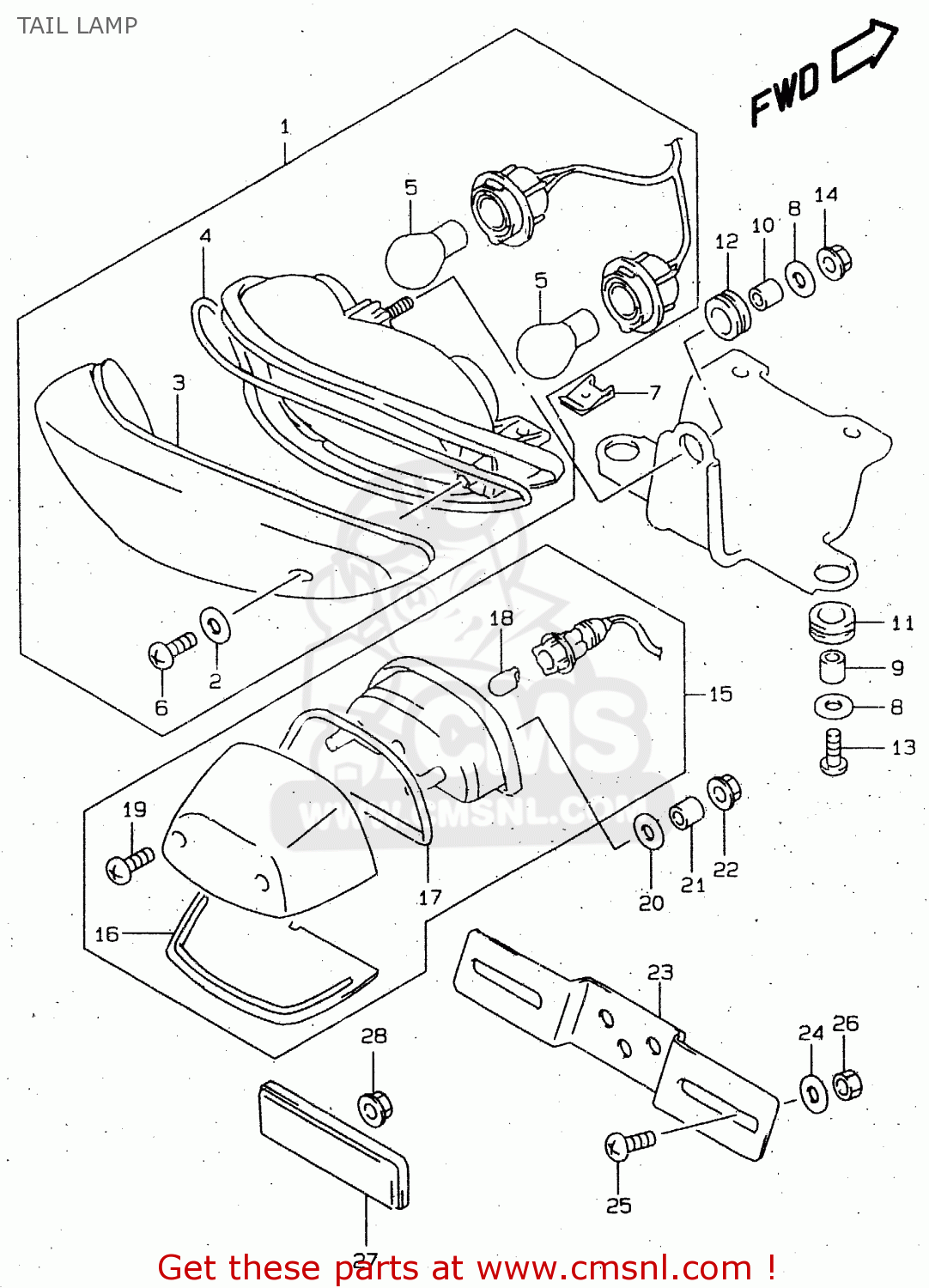

TAIL LAMP

ref

part #

description

quantity

1

3571002F00
ref: 1

LAMP ASSY,RR COMBINATION

€ 167.00

2

3562743010
ref: 2

GASKET (NAS)

€ 2.00

3

3571202F00
ref: 3

LENS

€ 21.50

4

3571302F00
ref: 4

GASKET (NAS)

€ 6.50

5

0947112083
ref: 5

BULB(12V21/5W)

€ 6.00

6

0321104207
ref: 6

SCREW

€ 1.50

7

0914805020
ref: 7

NUT

€ 2.00

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

0918006285
ref: 9

SPACER(6.5X10X9)

€ 2.50

10

0918006290
ref: 10

SPACER(6.5X10X12)

€ 2.50

11

0932009009
ref: 11

CUSHION

€ 5.00

12

0932009010
ref: 12

CUSHION

€ 2.50

13

0354105203
ref: 13

SCREW

€ 2.50

14

0831610063
ref: 14

NUT

€ 2.50

15

3591002F00
ref: 15

LAMP ASSY,LICENSE

€ 111.50

16

3591202F00
ref: 16

LENS

€ 10.00

17

3591302F00
ref: 17

GASKET (NAS)

€ 4.50

18

0947112081
ref: 18

BULB(12V5W)

€ 1.50

19

0321104163
ref: 19

SCREW

€ 1.50

20

0916006088
ref: 20

WASHER(6.5X20X1.6)

€ 2.00

21

0918005054
ref: 21

SPACER(5.5X9.5X11.5)

€ 2.00

22

0831610053
ref: 22

NUT

€ 2.50

23

3592700A10
ref: 23

BRACKET,LICENSE PLATE

€ 6.00

24

0916006088
ref: 24

WASHER(6.5X20X1.6)

€ 2.00

25

0214206203
ref: 25

SCREW

€ 2.00

26

0831610063
ref: 26

NUT

€ 2.50

27

3597007F00
ref: 27

REFLECTOR ASSEMBLY,REAR

€ 20.50

28

0831610053
ref: 28

NUT

€ 2.50

all assemblies
