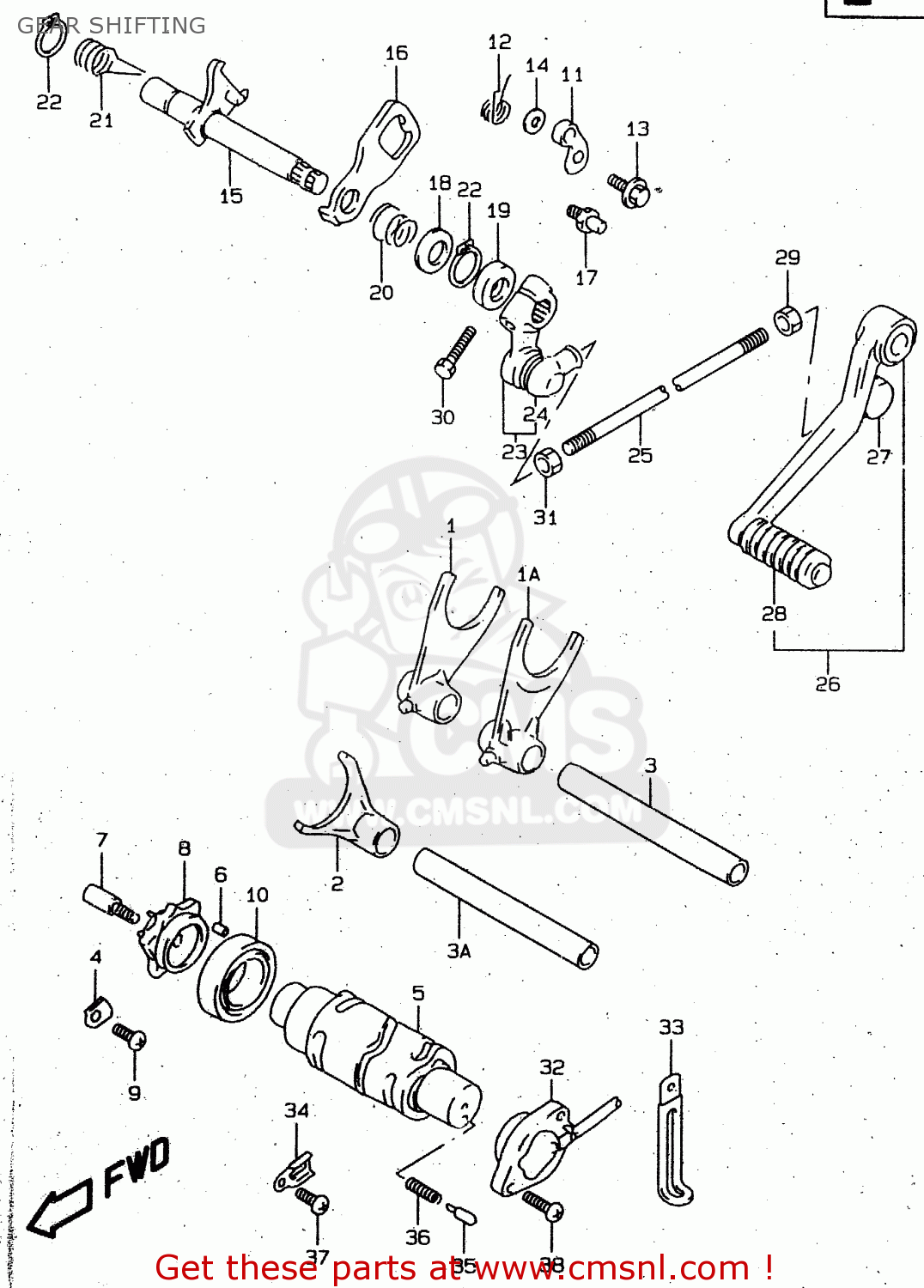

GEAR SHIFTING

ref

part #

description

quantity

1

2521117E01
ref: 1

FORK,GEAR SHIFT

€ 64.50

1A

2521117E10
ref: 1A

FORK,GEAR SHIFT NO.1

€ 99.00

2

2523117E11
ref: 2

FORK,GEAR SHIFT NO.3

€ 108.50

3

2541102F20
ref: 3

SHAFT,GEAR SHIFT FORK

€ 16.00

3A

2541102F10
ref: 3A

SHAFT,GEAR SHIFT FORK NO.2

€ 15.00

4

2474121A00
ref: 4

RETAINER

€ 2.00

5

2531002F10
ref: 5

CAM,GEAR SHIFT

€ 198.00

6

0422104089
ref: 6

PIN

€ 1.50

7

2531212C00
ref: 7

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

8

2538113E10
ref: 8

PLATE,GEAR SHIFT CAM

€ 40.00

9

0211206123
ref: 9

SCREW

€ 1.50

10

0811369050
ref: 10

BEARING

€ 36.00

11

2535026D01
ref: 11

STOPPER,GEAR SHIFT CAM

€ 8.50

12

2535513E00
ref: 12

SPRING,SHIFT CAM STOPPER

€ 4.00

13

0911106041
ref: 13

BOLT(6X14.3)

€ 3.00

14

0821106141
ref: 14

WASHER

€ 2.50

15

2551002F11
ref: 15

SHAFT,GEAR SHIFT

€ 92.00

16

2551213E11
ref: 16

PLATE,GEAR SHIFT CAM DRIVE

€ 18.00

17

2567101000
ref: 17

STOPPER,GEAR SHIFT CAM

€ 3.00

18

0918114167
ref: 18
14X22X1.0

SHIM(14X22X1)

€ 3.50

19

0928314006
ref: 19
14X22X6.0

SEAL,OIL(14X22X6)

€ 6.50

20

0944017009
ref: 20

SPRING

€ 1.50

21

0944420001
ref: 21

SPRING

€ 5.00

22

0833131146
ref: 22

CIRCLIP

€ 2.00

23

2552019C02
ref: 23

ARM,GEAR SHIFT LINK

€ 53.50

24

2552647000
ref: 24

COVER,DUST

€ 3.50

25

2552519D20
ref: 25

ROD,GEAR SHIFT LINK

€ 9.50

26

2560033E00
ref: 26

LEVER ASSY,GEAR SHIFT

€ 106.00

27

2552647000
ref: 27

COVER,DUST

€ 3.50

28

2565220C00
ref: 28

RUBBER,GEAR SHIFT PEDAL

€ 8.00

29

0914006011
ref: 29

NUT

€ 1.50

30

0150006253
ref: 30

BOLT

€ 2.50

31

0831000067
ref: 31

NUT

€ 2.50

32

3773002F10
ref: 32

BASE ASSY,GEAR SHIFT TERMINAL

€ 130.00

33

0940406429
ref: 33

CLAMP(L:45)

€ 2.50

34

3149745000
ref: 34

CLAMP,GENERATOR LEAD WIRE

€ 1.50

35

0920905011
ref: 35

PIN(5X15.5)

€ 2.00

36

0944004010
ref: 36

SPRING

€ 1.50

37

0211205103
ref: 37

SCREW

€ 2.00

38

0211205163
ref: 38

SCREW

€ 2.00
