HEADLAMP (E4,E18,E22,E25,E34)

TL1000R 2000 (Y)

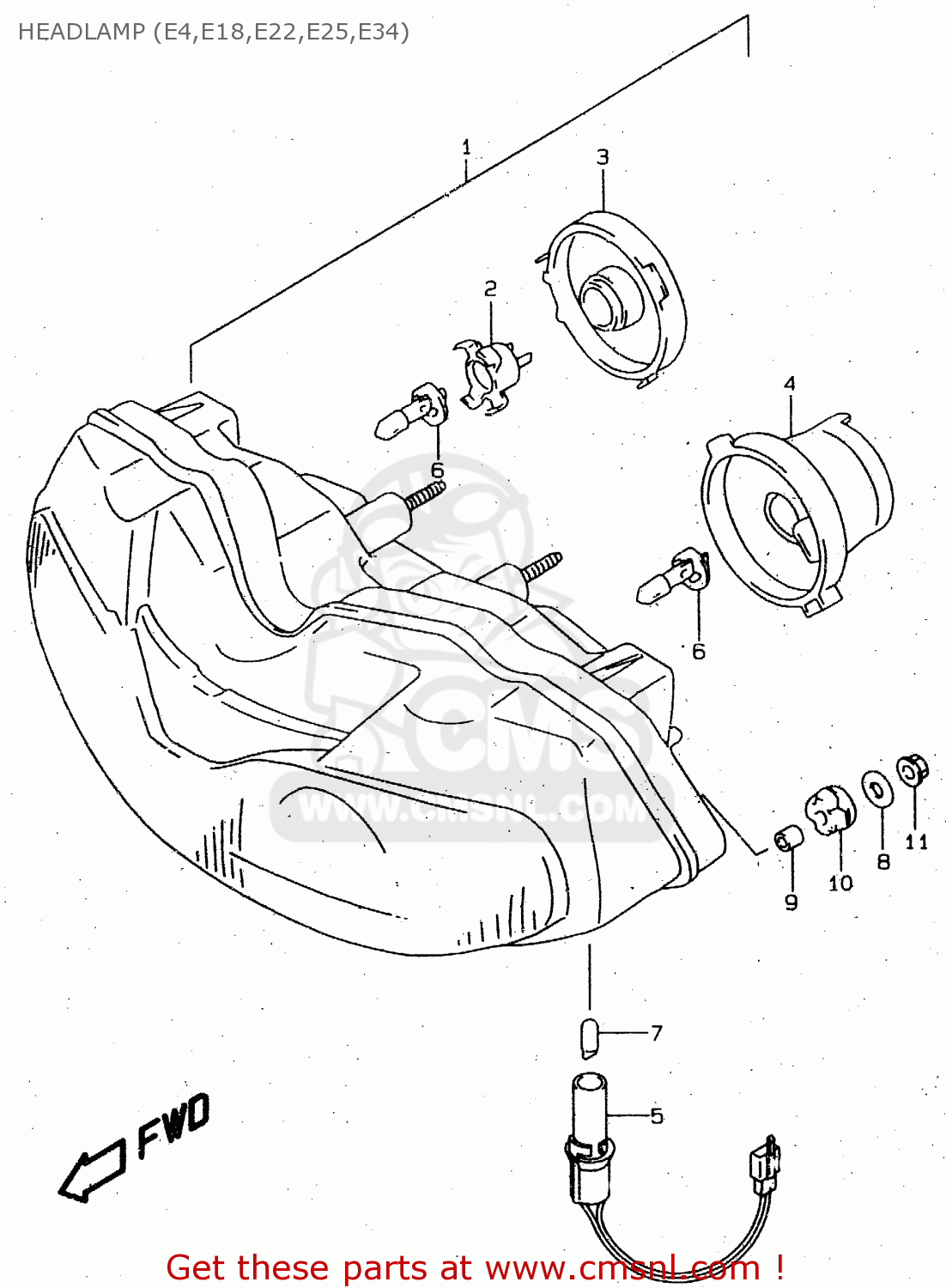

Headlamp (e4,e18,e22,e25,e34) diagram TL1000R 2000 (Y)

prices are in EUR

ref

part #

description

quantity

HEADLAMP ASSY

€ 0.00

3517518E50
ref: 2

ADAPTER ASSY

€ 21.00

3512502F00
ref: 3

COVER,SOCKET

€ 14.00

3611802F00
ref: 4

SOCKET & CORD ASSY

€ 46.50

3611818E51
ref: 5

SOCKET ASSY

€ 15.00

0947112122
ref: 6
PURCHASE LOCALLY

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

0947112081
ref: 7

BULB(12V5W)

€ 1.50

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

0918006268
ref: 9

SPACER(6.5X9X13.5)

€ 2.00

0932009015
ref: 10

CUSHION

€ 2.50

0831610063
ref: 11

NUT

€ 2.50
