OIL COOLER

TL1000R 2000 (Y)

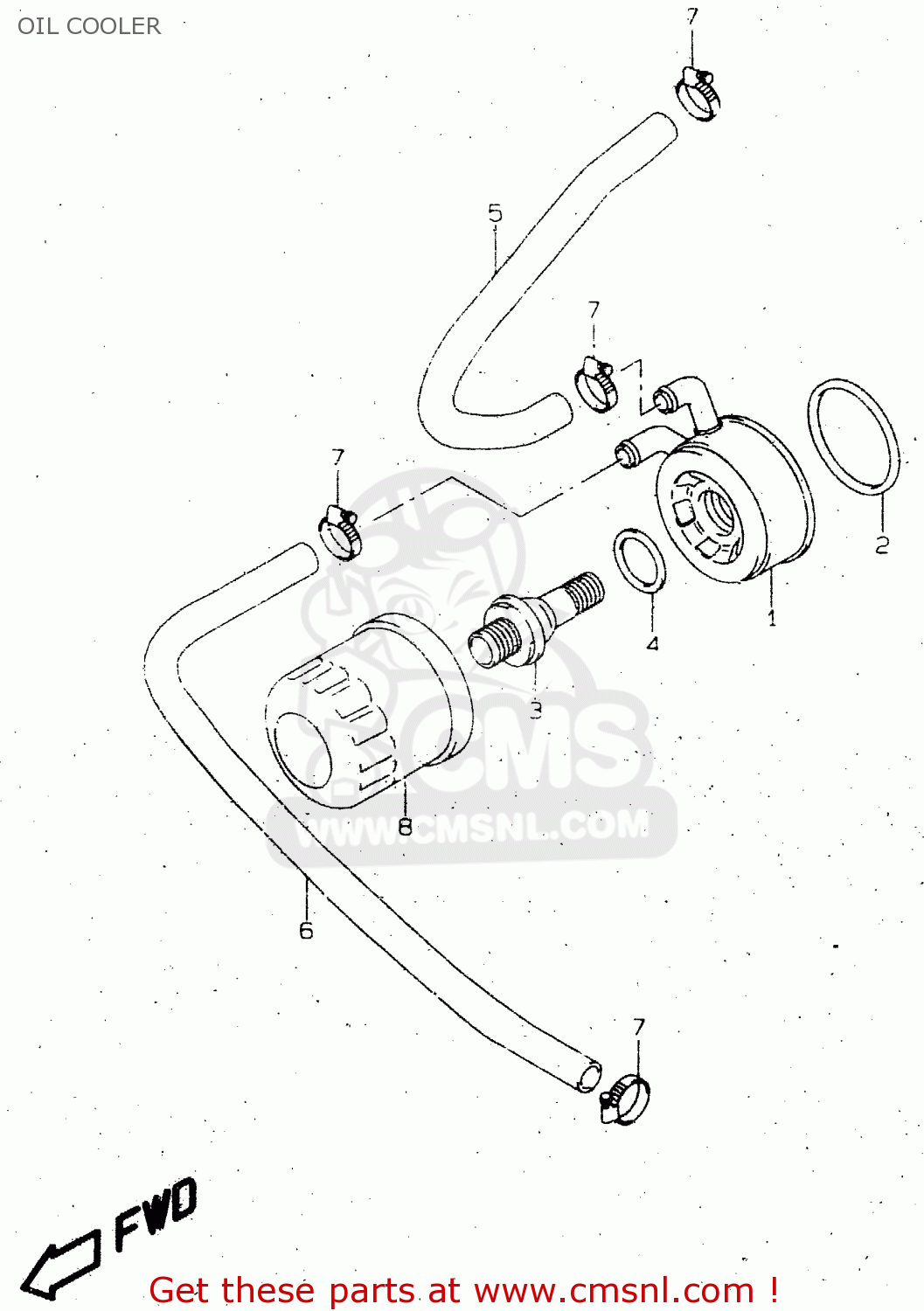

Oil cooler diagram TL1000R 2000 (Y)

OIL COOLER TL1000R 2000 (Y)

OIL COOLER TL1000R 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1660002FA0
ref: 1

COOLER ASSY,OIL

€ 471.50

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659102F00
ref: 3

BOLT,OIL COOLER UNION

€ 31.00

4

0918125160
ref: 4

SHIM(25X34X0.7)

€ 3.00

5

1646102FA0
ref: 5

HOSE,OIL COOLER INLET

€ 16.50

6

1647102FA0
ref: 6

HOSE,OIL COOLER OUTLET

€ 23.00

7

0940222511
ref: 7

CLAMP

€ 6.00

8

1651034E00
ref: 8

FILTER ASSEMBLY,ENGINE OIL

€ 12.50
