STEERING STEM

TL1000R 2000 (Y)

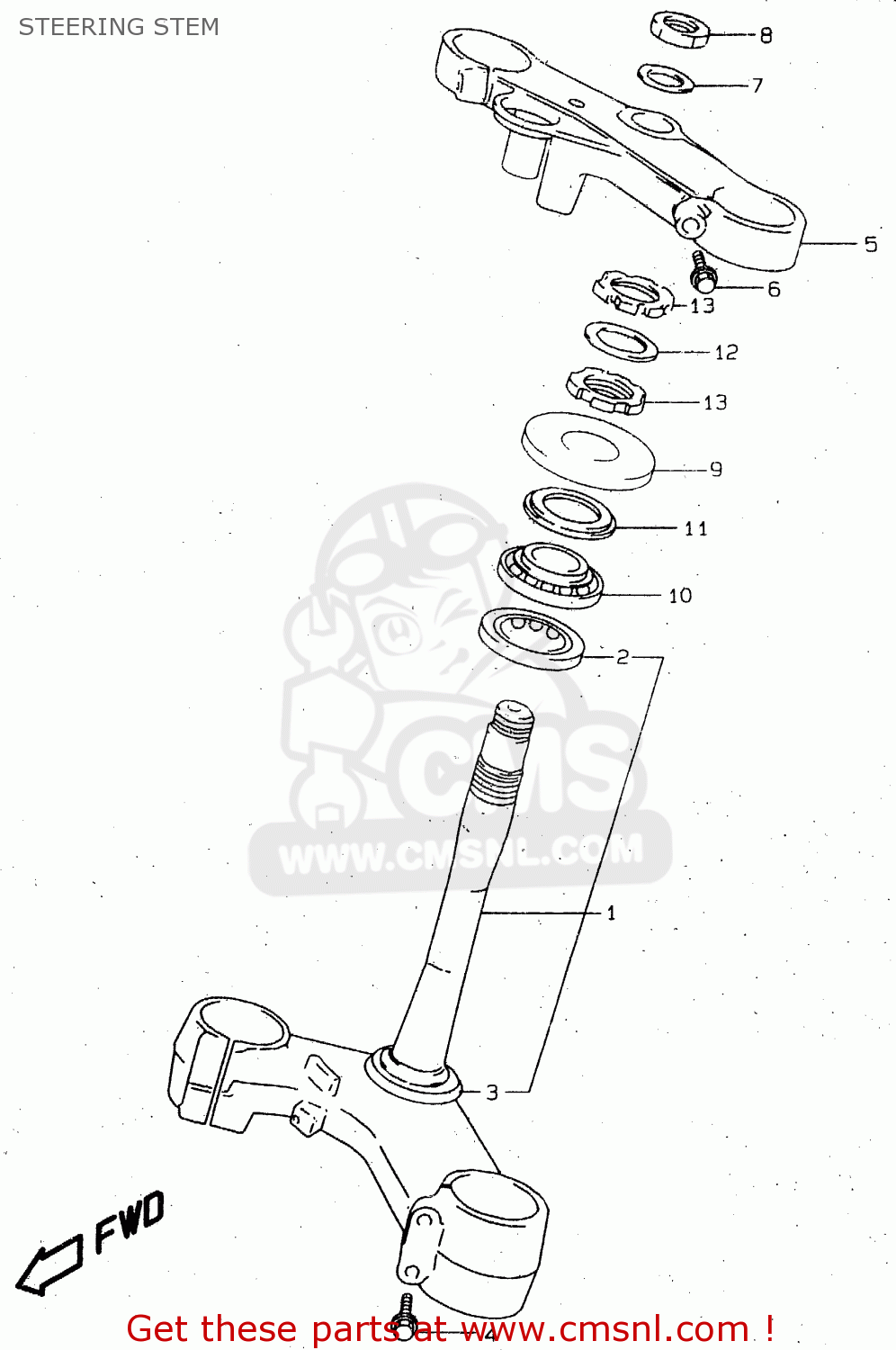

Steering stem diagram TL1000R 2000 (Y)

prices are in EUR

ref

part #

description

quantity

5141002FA0
ref: 1

STEM,STEERING

€ 749.50

0926730010
ref: 2

BEARING(30X55X17)

€ 46.50

5164412C00
ref: 3

SEAL,STEERING LWR

€ 5.50

0155008407
ref: 4

BOLT

€ 3.50

5131102FA0
ref: 5

HEAD,STEERING STEM

€ 384.00

0155008357
ref: 6

BOLT

€ 3.50

5135627C00
ref: 7

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

5135302F00
ref: 8

NUT

€ 26.50

5164412C00
ref: 9

SEAL,STEERING LWR

€ 5.50

0926730010
ref: 10

BEARING(30X55X17)

€ 46.50

5164302FA0
ref: 11

COVER,STEERING UPR

€ 8.50

5164133E00
ref: 12

WASHER,STEERING STEM

€ 3.00

5163133E00
ref: 13

NUT,STEERING STEM

€ 12.00
