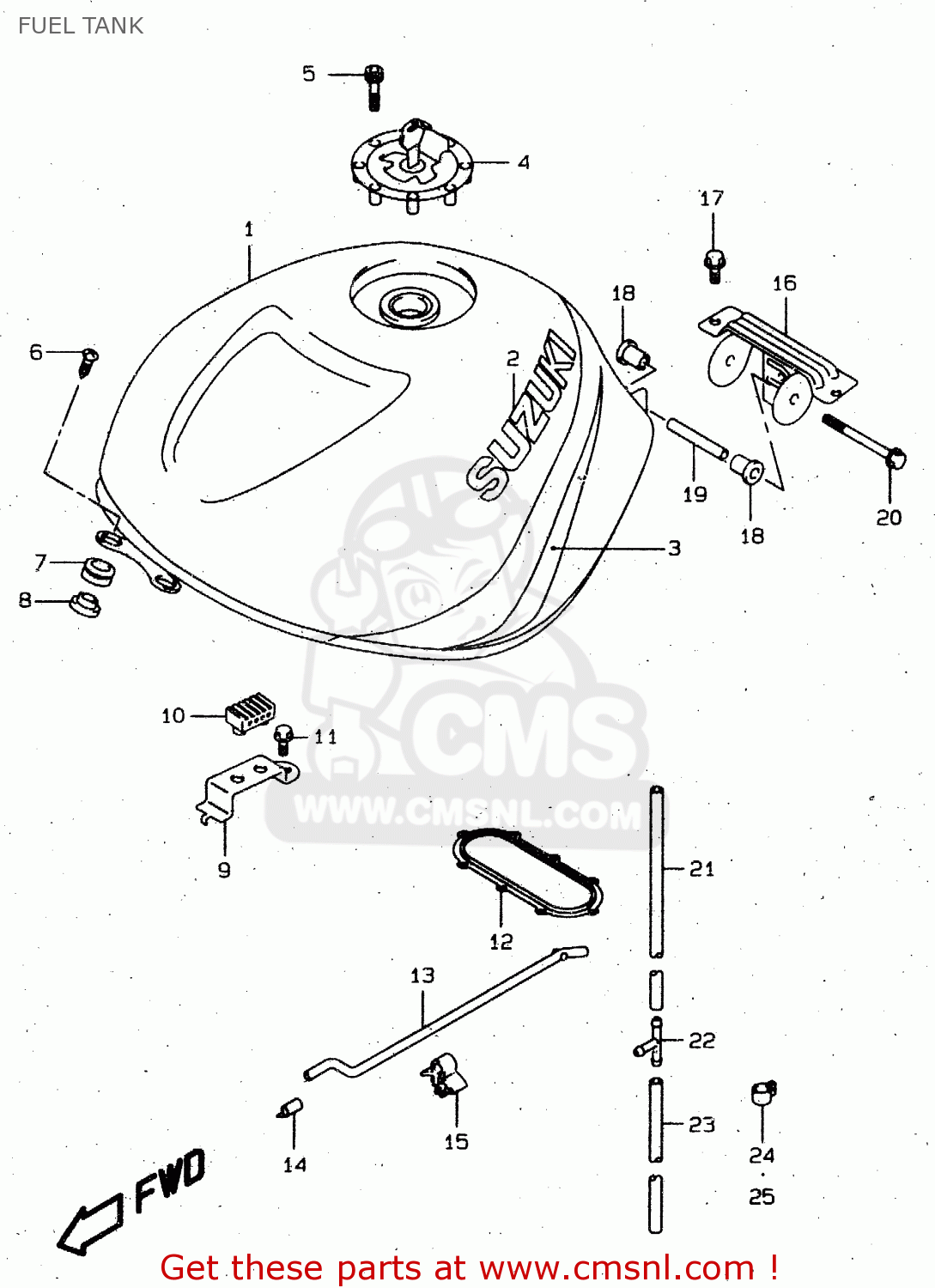

FUEL TANK

ref

part #

description

quantity

1

4410002FA0L99
ref: 1

TANK ASSEMBLY,FUEL

€ 795.50

1

4410002FC028V
ref: 1

TANK ASSY,FUEL(RED)

€ 502.50

1

4410002FC0163
ref: 1

TANK ASSY,FUEL(YELLOW)

€ 438.00

2

6811112C000JW
ref: 2
FOR L99

EMBLEM,FUEL TANK

€ 21.00

2

6811112C0020G
ref: 2
FOR 28V,163

EMBLEM,FUEL TANK

€ 19.50

3

6811002F101LE
ref: 3
FOR L99

TAPE SET,FUEL TANK(BLUE)

€ 36.00

4

4420033870
ref: 4

CAP SET,FUEL TANK

€ 253.50

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

0913906029
ref: 6

SCREW(6X25)

€ 5.00

7

0932009009
ref: 7

CUSHION

€ 5.00

8

0916906062
ref: 8

WASHER

€ 3.00

9

4453102FA0
ref: 9

BRACKET,FUEL TANK SIDE CUSHION

€ 8.50

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

0155006163
ref: 11

BOLT

€ 2.50

12

4459602FB0
ref: 12

PACKING,FUEL PUMP

€ 51.50

13

4457433E01
ref: 13

STAY,FUEL TANK

€ 13.50

14

0925105006
ref: 14

CAP,OD:11

€ 5.50

15

0940305310
ref: 15

CLAMP

€ 4.50

16

4455002FA1
ref: 16

BRACKET,FUEL TANK RR

€ 27.00

17

0155008163
ref: 17

BOLT

€ 3.00

18

4454102F00
ref: 18

CUSHION,FUEL TANK RR

€ 27.50

19

4456133E10
ref: 19

SPACER,FUEL TANK RR

€ 19.00

20

0155008953
ref: 20

BOLT

€ 3.50

21

4442302F01
ref: 21

HOSE,FUEL TANK DRAIN

€ 12.00

22

0936708005
ref: 22

3 WAY

€ 4.00

23

0935270103600
ref: 23

HOSE(7X10.2X600)

€ 8.00

24

0940314408
ref: 24

CLAMP

€ 6.00

25

0940324302
ref: 25

CLAMP

€ 0.00
