CAM CHAIN
TL1000S 2001 (K1) USA (E03)

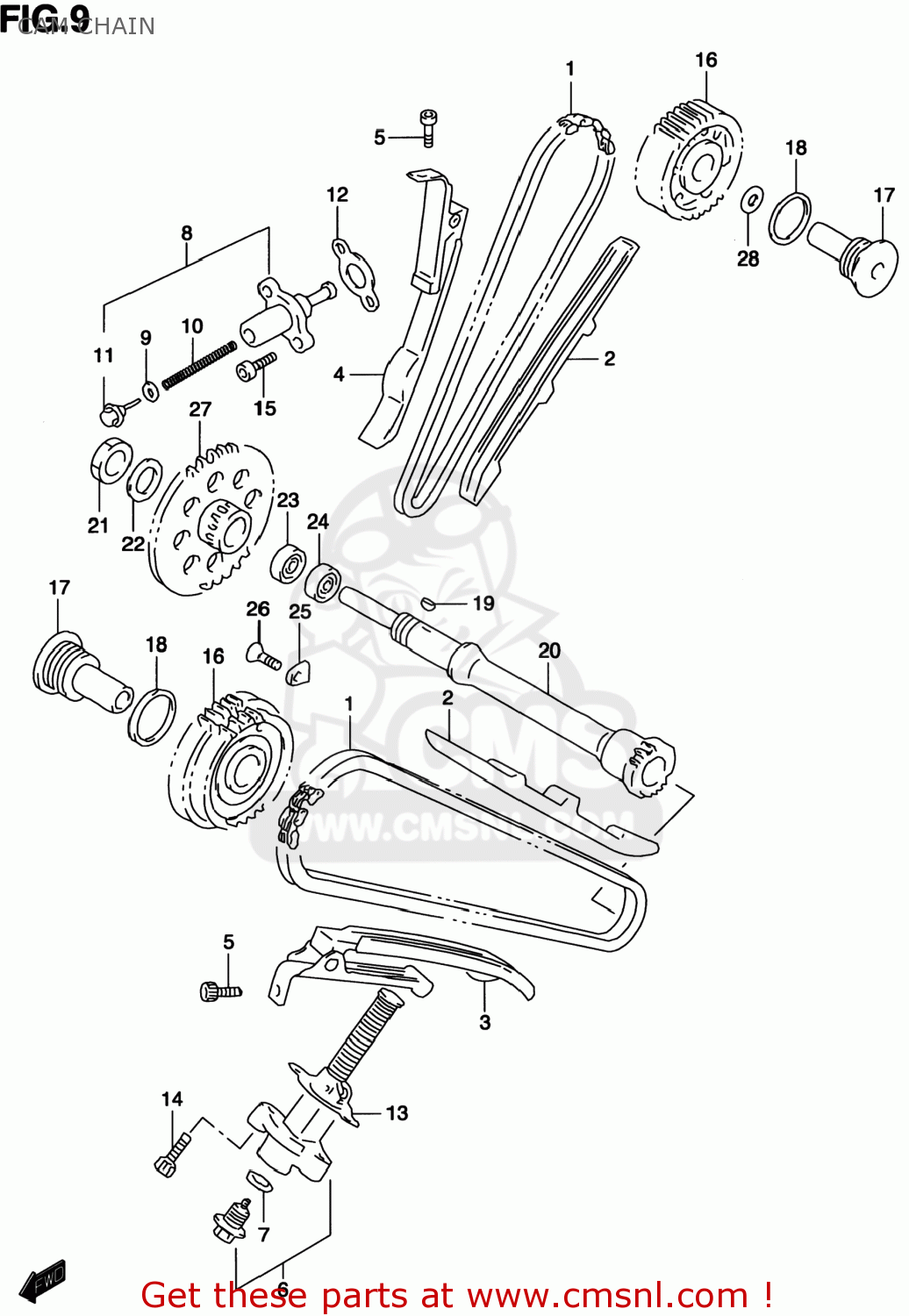

Cam chain diagram TL1000S 2001 (K1) USA (E03)
CAM CHAIN TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276002F00
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 108.00
2
1277102F00
ref: 2
GUIDE,CAM CHAIN
€ 42.00
3-1
1281002F00
ref: 3-1
12810-02F10
TENSIONER COMP,CAM CHAIN
€ 45.00
3-2
1281002F10
ref: 3-2
TENSIONER,CAM CHAIN FR
€ 45.00
4-1
1281502F00
ref: 4-1
12815-02F10
TENSIONER COMP,CAM CHAIN
€ 50.50
4-2
1281502F10
ref: 4-2
TENSIONER,CAM CHAIN RR
€ 50.50
5-1
0713006163
ref: 5-1
07130-0616B
BOLT,OIL FILLE
€ 3.00
5-2
0712006123
ref: 5-2
07120-0612B
BOLT
€ 3.50
6
1283224A01
ref: 6
ADJUSTER ASSY,RR TENSIONER
€ 134.50
7
0916812018
ref: 7
GASKET(12X21X2) (NAS)
€ 2.00
8
1283030A01
ref: 8
ADJUSTER ASSY,TENSIONER
€ 54.50
9
1283202A00
ref: 9
O RING
€ 2.00
10
1283330A01
ref: 10
SPRING
€ 1.50
11
1283402A00
ref: 11
PLUG,ADJUSTER
€ 8.00
12
1283719B10
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.00
13
1283724A10
ref: 13
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
14
0713006253
ref: 14
07130-0625B
BOLT,CL.COVER
€ 3.00
15
0713006203
ref: 15
07130-0620B
BOLT,CRKCASE,R
€ 3.00
16-1
1275002F00
ref: 16-1
12750-02F10
GEAR COMP,CAM CHAIN ID
€ 91.00
16-1
1275002F00
ref: 16-1
12750-02F10
GEAR COMP,CAM CHAIN ID
€ 91.00
16-2
1275002F10
ref: 16-2
GEAR,CAM CHAIN IDLER NO.2
€ 99.00
16-2
1275002F10
ref: 16-2
GEAR,CAM CHAIN IDLER NO.2
€ 99.00
17
1275502F01
ref: 17
SHAFT,IDLER NO.2
€ 34.00
18
0916826001
ref: 18
GASKET(26.5X30.5X1) (NAS)
€ 4.50
19
0942104004
ref: 19
KEY
€ 3.50
20
1271602F00
ref: 20
SHAFT,IDLER
€ 110.00
21
0914016005
ref: 21
NUT
€ 4.50
22
0918116212
ref: 22
SHIM(16X26X1.5)
€ 2.00
23
0811363030
ref: 23
BEARING
€ 15.50
24-1
0811360050
ref: 24-1
BEARING
€ 16.50
24-1
0811360050
ref: 24-1
BEARING
€ 16.50
24-2
0926225123
ref: 24-2
BEARING(25X47X10)
€ 32.50
24-2
0926225123
ref: 24-2
BEARING(25X47X10)
€ 32.50
25
2474120A00
ref: 25
RETAINER,COUNTER BEARING,R
€ 2.00
26
0212206123
ref: 26
02122-0612A
SCREW
€ 3.00
27-1
1273102F00
ref: 27-1
12731-02F10
SPROCKET,IDLER NO.1
€ 69.50
27-2
1273102F10
ref: 27-2
SPROCKET,IDLER NO.1
€ 69.50
28-1
0918115164
ref: 28-1
SHIM(15X24X0.9)
€ 3.00
28-2
0918115166
ref: 28-2
SHIM(15X24X1)
€ 4.00
28-3
0918115172
ref: 28-3
SHIM(15X24X1.1)
€ 3.00
28-4
0918115176
ref: 28-4
SHIM(15X24X1.2)
€ 3.00
28-5
0918115181
ref: 28-5
SHIM(15X24X1.3)
€ 3.00
28-6
0918115182
ref: 28-6
SHIM(15X24X1.4)
€ 3.00
