REAR FENDER

TL1000S 2001 (K1) USA (E03)

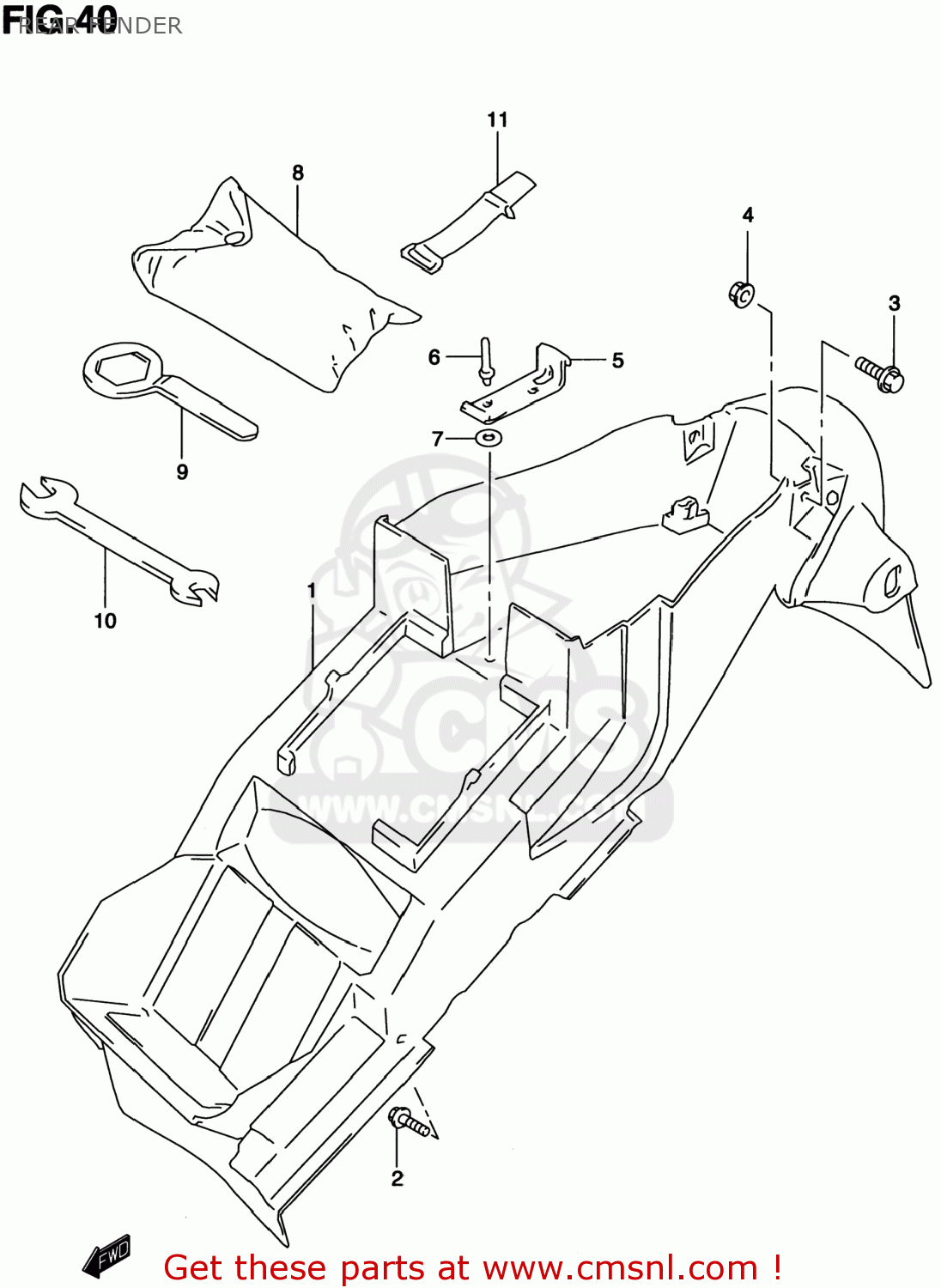

Rear fender diagram TL1000S 2001 (K1) USA (E03)

REAR FENDER TL1000S 2001 (K1) USA (E03)

REAR FENDER TL1000S 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311102F00
ref: 1-1

FENDER,RR

€ 92.50

1-2

6311102F10
ref: 1-2

FENDER,RR

€ 0.00

2

0911106061
ref: 2
09111-06094

BOLT 6X16.5

€ 2.50

3-1

0911606144
ref: 3-1
09116-06165

BOLT 6X16

€ 2.50

3-2

0911606165
ref: 3-2

BOLT(6X16)

€ 2.50

4

0831610063
ref: 4
08316-1006B

NUT

€ 2.50

5

6346602F00
ref: 5

HOLDER,TOOL

€ 7.50

6-1

0922904020
ref: 6-1

RIVET

€ 2.50

6-2

0922904020
ref: 6-2

RIVET

€ 2.50

7-1

0832201043
ref: 7-1
08322-0104A

WASHER

€ 5.00

7-2

0832201043
ref: 7-2
08322-0104A

WASHER

€ 5.00

8-1

0980021008
ref: 8-1

TOOL ASSY

€ 74.50

8-2

0980021039
ref: 8-2

TOOL ASSY

€ 73.00

9

0981700034
ref: 9

RING SPANNER(36)

€ 16.50

10

0981300027
ref: 10

OPEN SPANNER(8X10)

€ 3.00

11

4743502F01
ref: 11

BAND,TOOL

€ 7.00
