REAR CYLINDER HEAD
TL1000S 2001 (K1) USA (E03)

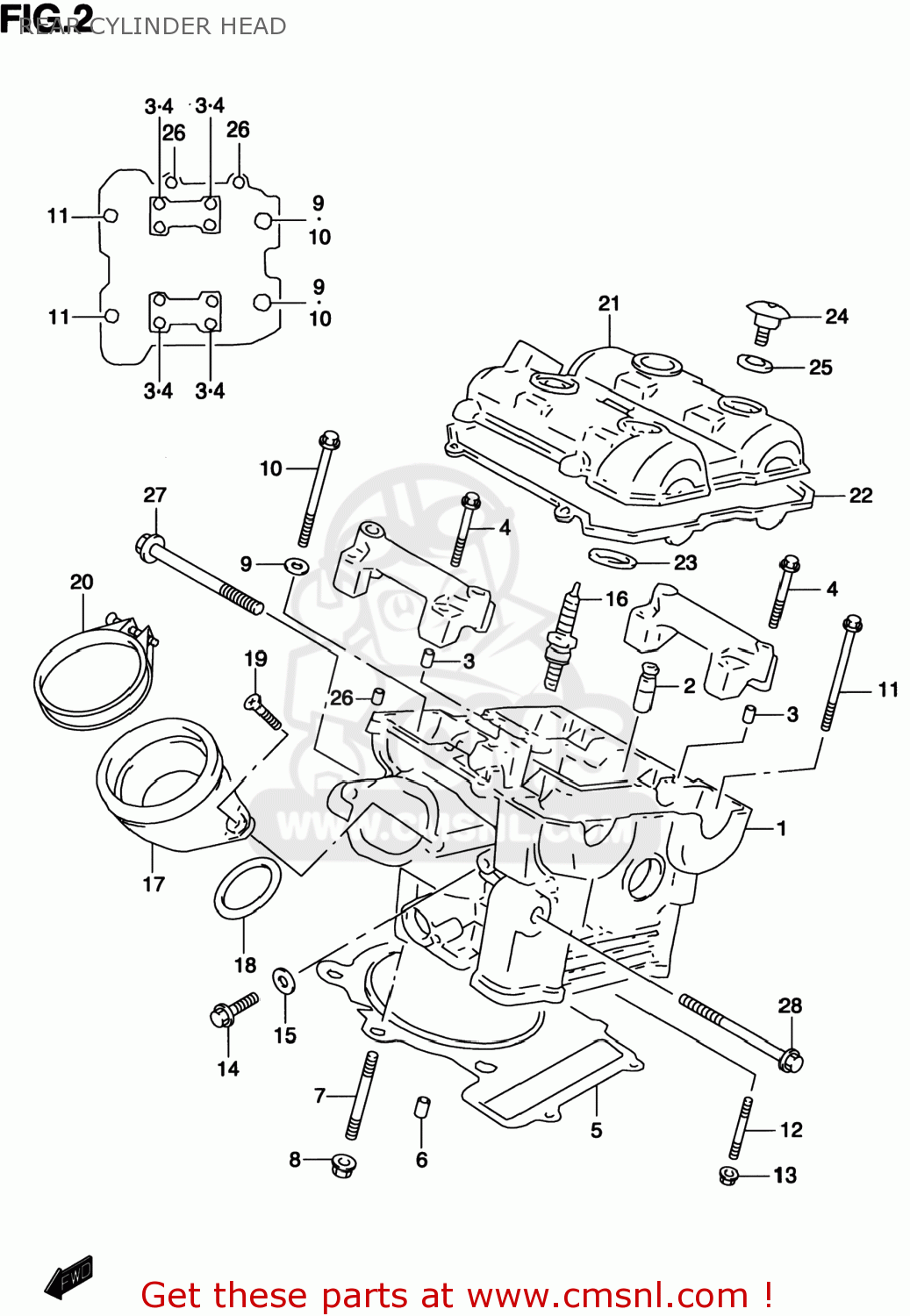

Rear cylinder head diagram TL1000S 2001 (K1) USA (E03)
REAR CYLINDER HEAD TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110002F00
ref: 1-1
11100-02F01
HEAD ASSEMBLY,CYLINDER
€ 988.00
1-2
1110002F30
ref: 1-2
11100-02F31
HEAD ASSEMBLY,CYLINDER
€ 1,066.50
1-3
1110002F31
ref: 1-3
HEAD ASSY,CYLINDER
€ 1,066.50
2
1111532E70
ref: 2
GUIDE,VALVE
€ 18.50
3
0920608001
ref: 3
PIN(6.2X8X11)
€ 2.00
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5-1
1114102F00
ref: 5-1
11141-02F01
GASKET,CYLINDER HEAD,FRONT (NAS)
€ 42.00
5-2
1114102F01
ref: 5-2
GASKET,CYLINDER HEAD (NAS)
€ 42.00
6
0421113189
ref: 6
PIN
€ 2.50
7
0910808143
ref: 7
BOLT,STUD
€ 3.00
8
0831610083
ref: 8
08316-1008B
NUT
€ 3.00
9
0916010082
ref: 9
WASHER(10.5X19X2)
€ 2.00
10-1
0910310276
ref: 10-1
BOLT(10X175)
€ 13.50
10-2
1116102F00
ref: 10-2
BOLT,CYLINDER HEAD(L:175)
€ 18.00
11
0910306103
ref: 11
BOLT(6X70)
€ 2.50
12
0910806096
ref: 12
BOLT,STUD
€ 2.50
13
0831610063
ref: 13
08316-1006B
NUT
€ 2.50
14
0712006123
ref: 14
07120-0612B
BOLT
€ 3.50
15
0916806023
ref: 15
GASKET(5.8X13X1.2) (NAS)
€ 2.00
16-1
0948200410
ref: 16-1
PLUG,SPARK(CR9EK)
€ 10.50
16-10
0948200463
ref: 16-10
PLUG,SPARK(U31ETR)
€ 10.50
16-2
0948200411
ref: 16-2
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
16-3
0948200412
ref: 16-3
PLUG,SPARK(CR8EK)
€ 11.00
16-4
0948200413
ref: 16-4
PLUG,SPARK(U24ETR)
€ 11.00
16-5
0948200412
ref: 16-5
PLUG,SPARK(CR8EK)
€ 11.00
16-6
0948200413
ref: 16-6
PLUG,SPARK(U24ETR)
€ 11.00
16-7
0948200410
ref: 16-7
PLUG,SPARK(CR9EK)
€ 10.50
16-8
0948200411
ref: 16-8
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
16-9
0948200462
ref: 16-9
PLUG,SPARK(CR10EK)
€ 10.50
17
1310102F00
ref: 17
PIPE ASSY,INTAKE
€ 55.00
18
0928055005
ref: 18
O RING(D:2.4,ID:55.6)
€ 5.50
19
0912006010
ref: 19
09120-06010-XC0
SCREW
€ 3.00
20
0940270203
ref: 20
09402-70902
CLAMP
€ 6.00
21-1
1117202F00
ref: 21-1
11172-02F02
COVER,CYLINDER HEAD,REAR
€ 159.00
21-2
1117002F11
ref: 21-2
COVER,CYLINDER HEAD RR
€ 179.50
22
1117302F00
ref: 22
GASKET,CYL HEAD COVER NO.1 (NAS)
€ 29.00
23
1117817E00
ref: 23
GASKET,CYL HEAD COVER NO.2
€ 6.00
24
0910607009
ref: 24
BOLT(7X17.5)
€ 4.50
25
0916111008
ref: 25
WASHER(10.6X25.5X2.3)
€ 4.50
26
0920608001
ref: 26
PIN(6.2X8X11)
€ 2.00
27
0155010807
ref: 27
BOLT
€ 3.50
28
0155010707
ref: 28
BOLT
€ 3.50
