FRONT DAMPER (MODEL V)
TL1000S 2001 (K1) USA (E03)

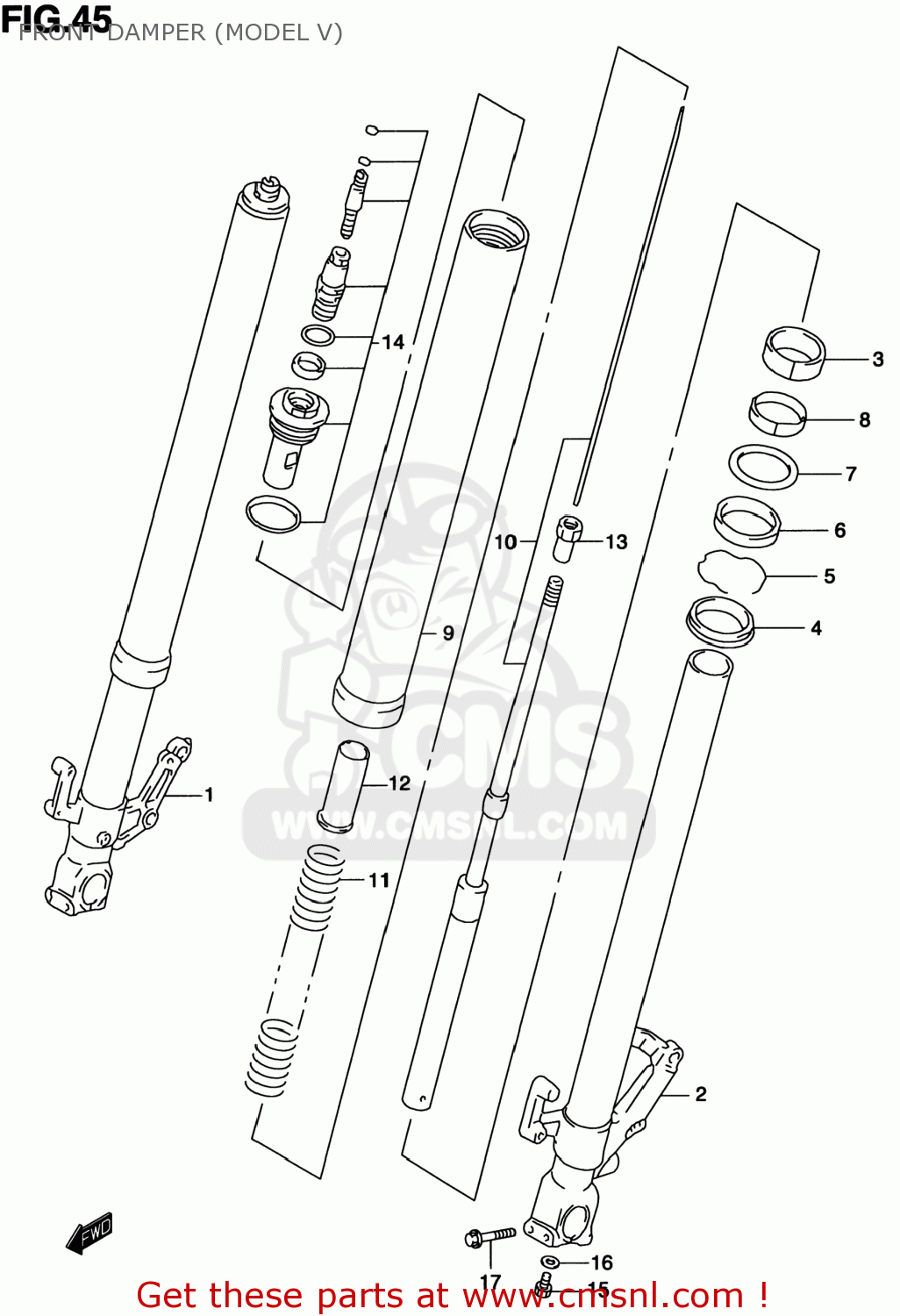

Front damper (model v) diagram TL1000S 2001 (K1) USA (E03)
FRONT DAMPER (MODEL V) TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110302F00
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 1,406.50
5110402F00
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 1,406.50
1
5111002F00
ref: 1
TUBE,INNER,R
€ 467.00
2
5112002F00
ref: 2
TUBE,INNER,L
€ 489.50
3
5112140C00
ref: 3
PISTON
€ 11.50
4
5117346E20
ref: 4
SEAL,DUST
€ 19.50
5
5115614200
ref: 5
RING,STOPPER
€ 4.50
6
5115346E20
ref: 6
SEAL,OIL
€ 15.50
7
5115814200
ref: 7
WASHER
€ 4.00
8
5116702F00
ref: 8
METAL,SLIDE
€ 20.50
9
5113002F00
ref: 9
TUBE,OUTER
€ 491.50
10
5114602F00
ref: 10
CYLINDER
€ 386.00
11
5117102F00
ref: 11
SPRING,FRONT
€ 72.50
12
5117602F00
ref: 12
SPACER
€ 18.00
13
5112927C00
ref: 13
NUT,PISTON ROD
€ 19.50
14
5135102F00
ref: 14
CAP,FORK
€ 191.50
15
5114740C00
ref: 15
BOLT,OIL LOCK PIECE,12X22
€ 24.50
16
5114840300
ref: 16
GASKET,CYLINDER (NAS)
€ 2.50
17
0155008457
ref: 17
BOLT
€ 4.00
