FRAME COVER (MODEL V/W)
TL1000S 2001 (K1) USA (E03)

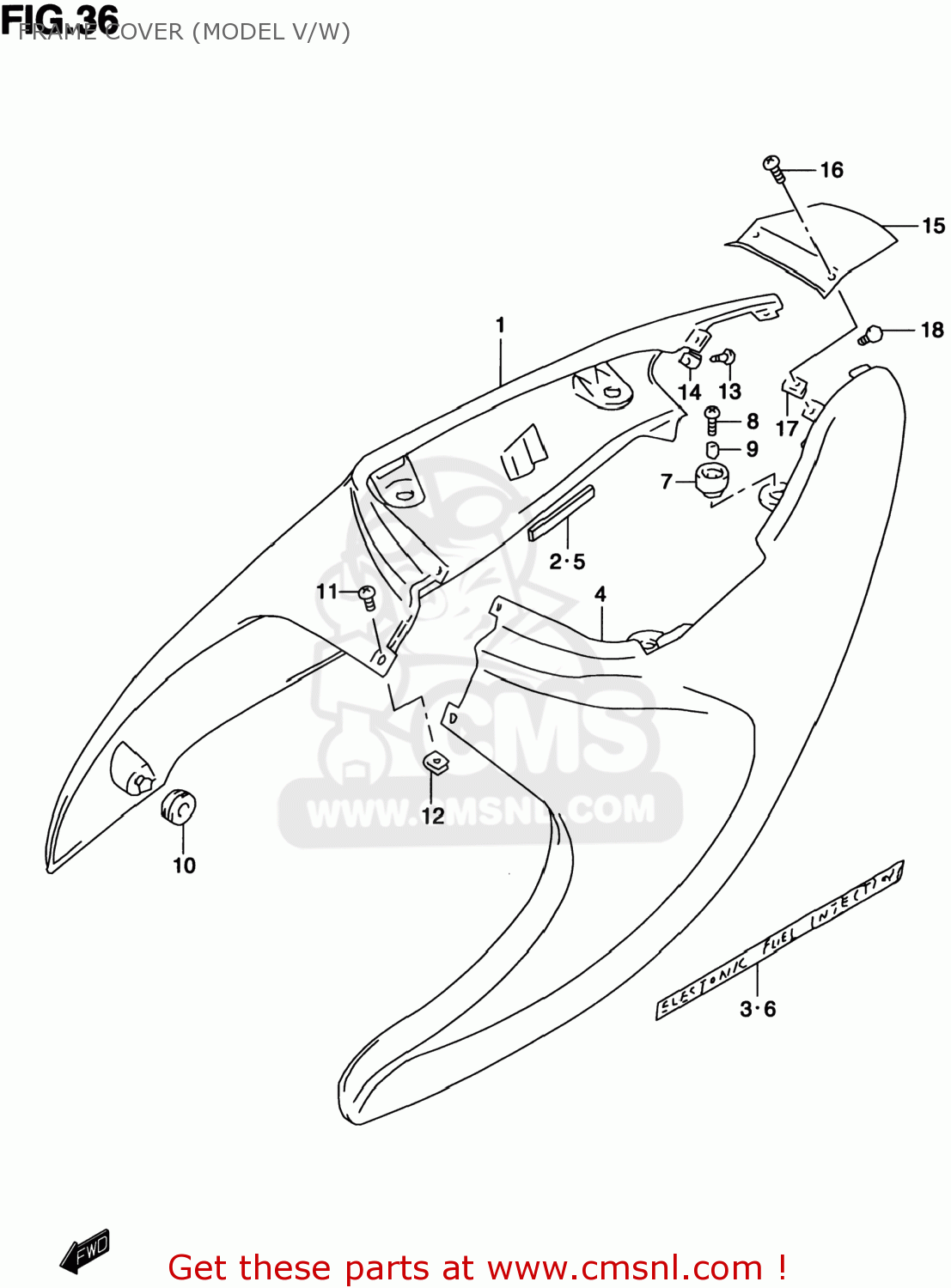

Frame cover (model v/w) diagram TL1000S 2001 (K1) USA (E03)
FRAME COVER (MODEL V/W) TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711002F0028V
ref: 1-1
COVER,FRAME,R(RED)
€ 146.00
1-2
4711002F001UH
ref: 1-2
COVER,FRAME,R(GREEN)
€ 135.00
1-3
4711002F0033J
ref: 1-3
47110-02F00-2AX
COVER,FRAME,R(BLACK)
€ 132.00
1-4
4711002F003AX
ref: 1-4
COVER,FRAME,R(RED)
€ 154.50
1-5
4711002F002AX
ref: 1-5
COVER COMP,FRAME,RIGHT
€ 132.00
2
4716102F00
ref: 2
CUSHION,FRAME COVER
€ 4.00
3-1
6813102F00H3Y
ref: 3-1
EMBLEM,FRAME COVER
€ 9.00
3-2
6813102F00H3Z
ref: 3-2
EMBLEM,FRAME COVER
€ 7.00
3-3
6813102F003EE
ref: 3-3
EMBLEM,FRAME COVER
€ 7.00
3-4
6813102F00K1C
ref: 3-4
EMBLEM,FRAME COVER
€ 10.00
3-5
6813102F00G7U
ref: 3-5
EMBLEM,FRAME COVER
€ 8.00
4-1
4721002F0028V
ref: 4-1
COVER,FRAME,L(RED)
€ 135.00
4-2
4721002F001UH
ref: 4-2
COVER,FRAME,LEFT (GREEN)
€ 134.00
4-3
4721002F0033J
ref: 4-3
47210-02F00-2AX
COVER,FRAME,LEFT (BLACK)
€ 127.50
4-4
4721002F003AX
ref: 4-4
COVER,FRAME,L(RED)
€ 142.50
4-5
4721002F002AX
ref: 4-5
COVER,FRAME,L(BLACK)
€ 127.50
5
4716102F00
ref: 5
CUSHION,FRAME COVER
€ 4.00
6-1
6813102F00H3Y
ref: 6-1
EMBLEM,FRAME COVER
€ 9.00
6-2
6813102F00H3Z
ref: 6-2
EMBLEM,FRAME COVER
€ 7.00
6-3
6813102F003EE
ref: 6-3
EMBLEM,FRAME COVER
€ 7.00
6-4
6813102F00K1C
ref: 6-4
EMBLEM,FRAME COVER
€ 10.00
6-5
6813102F00G7U
ref: 6-5
EMBLEM,FRAME COVER
€ 8.00
7
0932010045
ref: 7
CUSHION
€ 3.50
8
0913606105
ref: 8
SCREW(6X20)
€ 2.00
9
0918006286
ref: 9
SPACER(6.5X10X9.4)
€ 2.50
10
0932008018
ref: 10
CUSHION
€ 4.00
11
0324115123
ref: 11
03241-1512B
SCREW
€ 2.50
12
0914805038
ref: 12
NUT
€ 2.50
13
0913605034
ref: 13
SCREW(5X16)
€ 2.00
14
0914805038
ref: 14
NUT
€ 2.50
15-1
4731102F0028V
ref: 15-1
COVER,FRAME CTR
€ 34.00
15-2
4731102F001UH
ref: 15-2
COVER,FRAME,CENTER
€ 35.50
15-3
4731102F0033J
ref: 15-3
COVER,FRAME CTR
€ 28.50
16
0324115123
ref: 16
03241-1512B
SCREW
€ 2.50
17
0914805038
ref: 17
NUT
€ 2.50
18
4712902F00
ref: 18
CUSHION
€ 7.50
