TL1000S 2001 (K1) USA (E03)

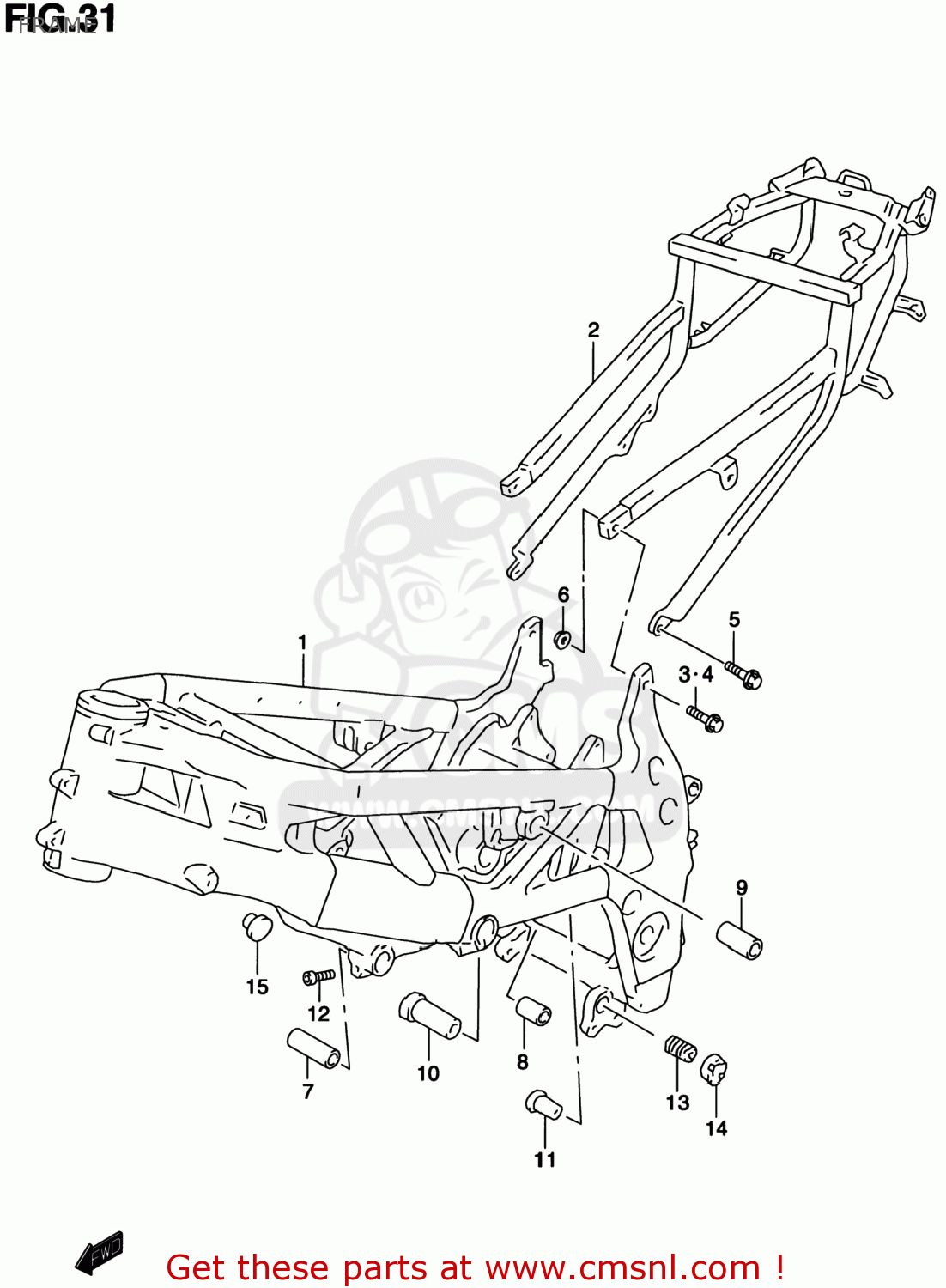

Frame diagram TL1000S 2001 (K1) USA (E03)
FRAME TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110002F00
ref: 1-1
41100-02F03
FRAME COMP
€ 1,705.50
1-2
4110002F03
ref: 1-2
FRAME
€ 1,705.50
2
4120002F00
ref: 2
RAIL,SEAT
€ 1,255.00
3-1
5919933E00
ref: 3-1
09103-10296
BOLT,SEAT RAIL
€ 6.00
3-2
0910310296
ref: 3-2
BOLT(10X30)
€ 6.00
4
0910310284
ref: 4
BOLT(10X45)
€ 5.00
5
0910310296
ref: 5
BOLT(10X30)
€ 6.00
6
0831931107
ref: 6
NUT
€ 3.00
7
4119802F00
ref: 7
SPACER,ENG HEAD MTG FR,L
€ 31.50
8
4194102F00
ref: 8
SPACER,ENG HEAD MTG RR,R
€ 20.00
9
4194202F00
ref: 9
SPACER,ENG HEAD MTG RR,L
€ 17.00
10
4193202F00
ref: 10
SPACER,CRANK CASE MTG FR,L
€ 41.50
11
4191133E00
ref: 11
41911-40F01
SPACER,ENGINE MOUNTING
€ 16.50
12
0713008307
ref: 12
BOLT
€ 4.50
13-1
4192133E10
ref: 13-1
41921-33E11
BOLT,CRANKCASE ADJUST
€ 46.00
13-2
4192133E11
ref: 13-2
BOLT,CRANKCASE ADJUST
€ 46.00
14
4192233E10
ref: 14
NUT,CRANKCASE ADJUST
€ 14.50
15
0925006001
ref: 15
09250-06005
CAP
€ 2.00
