REAR CALIPER

TL1000S 2001 (K1) USA (E03)

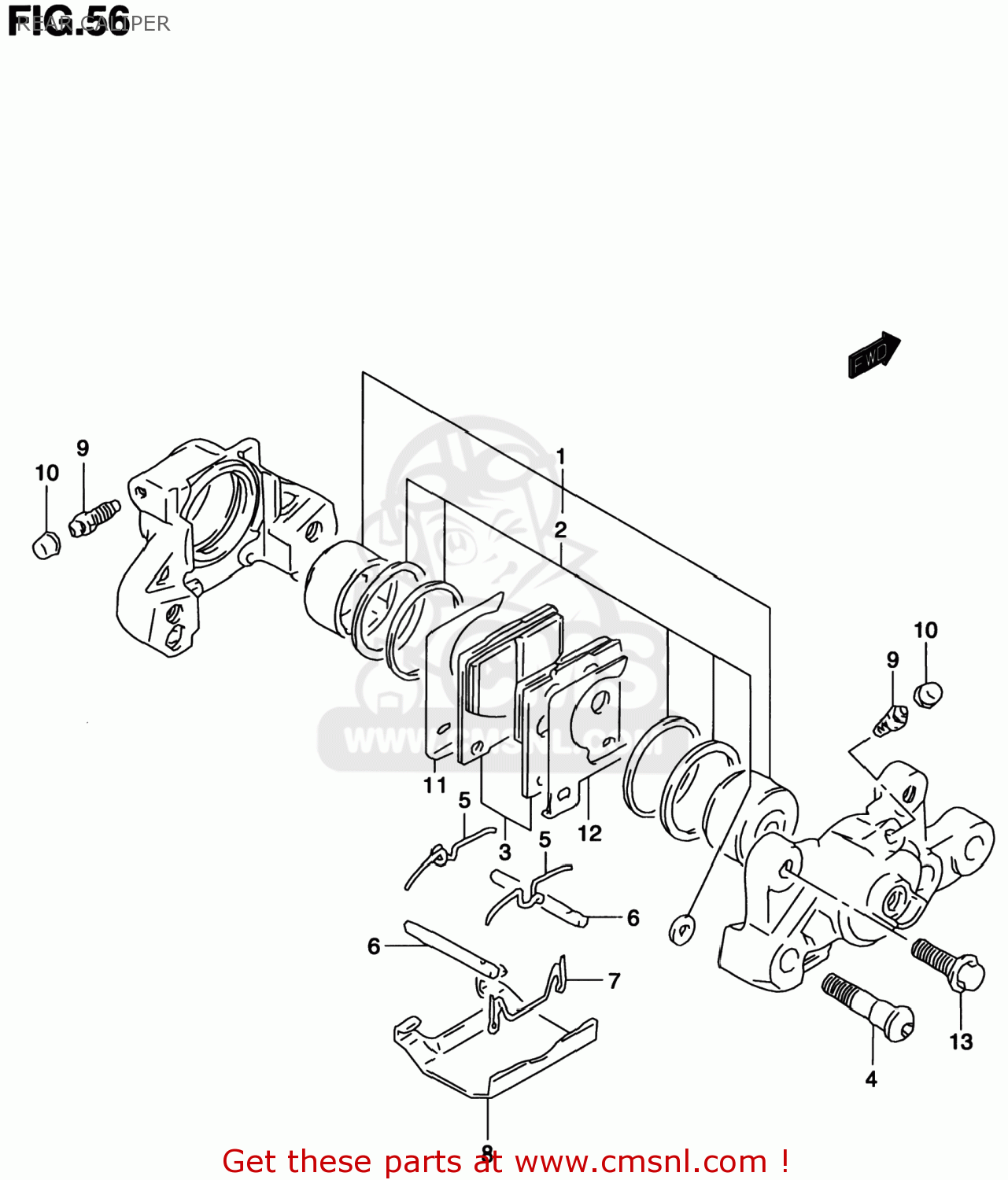

Rear caliper diagram TL1000S 2001 (K1) USA (E03)

REAR CALIPER TL1000S 2001 (K1) USA (E03)

REAR CALIPER TL1000S 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910005C62
ref:
69100-05CG0-999

CALIPER ASSEMBLY,REAR

€ 770.50

1

6910005850
ref: 1
69100-05851

PISTON SET

€ 122.50

2

6910032820
ref: 2
69101-05840

SEAL SET,PISTON

€ 26.00

3

6910005860
ref: 3
69102-05810

PAD SET (NAS)

€ 56.00

4

5914505C50
ref: 4

BOLT,HOUSING

€ 9.50

5

5914316700
ref: 5

SPRING

€ 7.50

6

6914146E01
ref: 6

PIN,PAD

€ 9.00

7

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

8

5915116701
ref: 8

COVER

€ 13.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5937120C00
ref: 11

SHIM,INNER

€ 7.50

12

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

13

0155008303
ref: 13
01550-0830A

BOLT

€ 3.00
