TURNSIGNAL LAMP
TL1000S 2001 (K1) USA (E03)

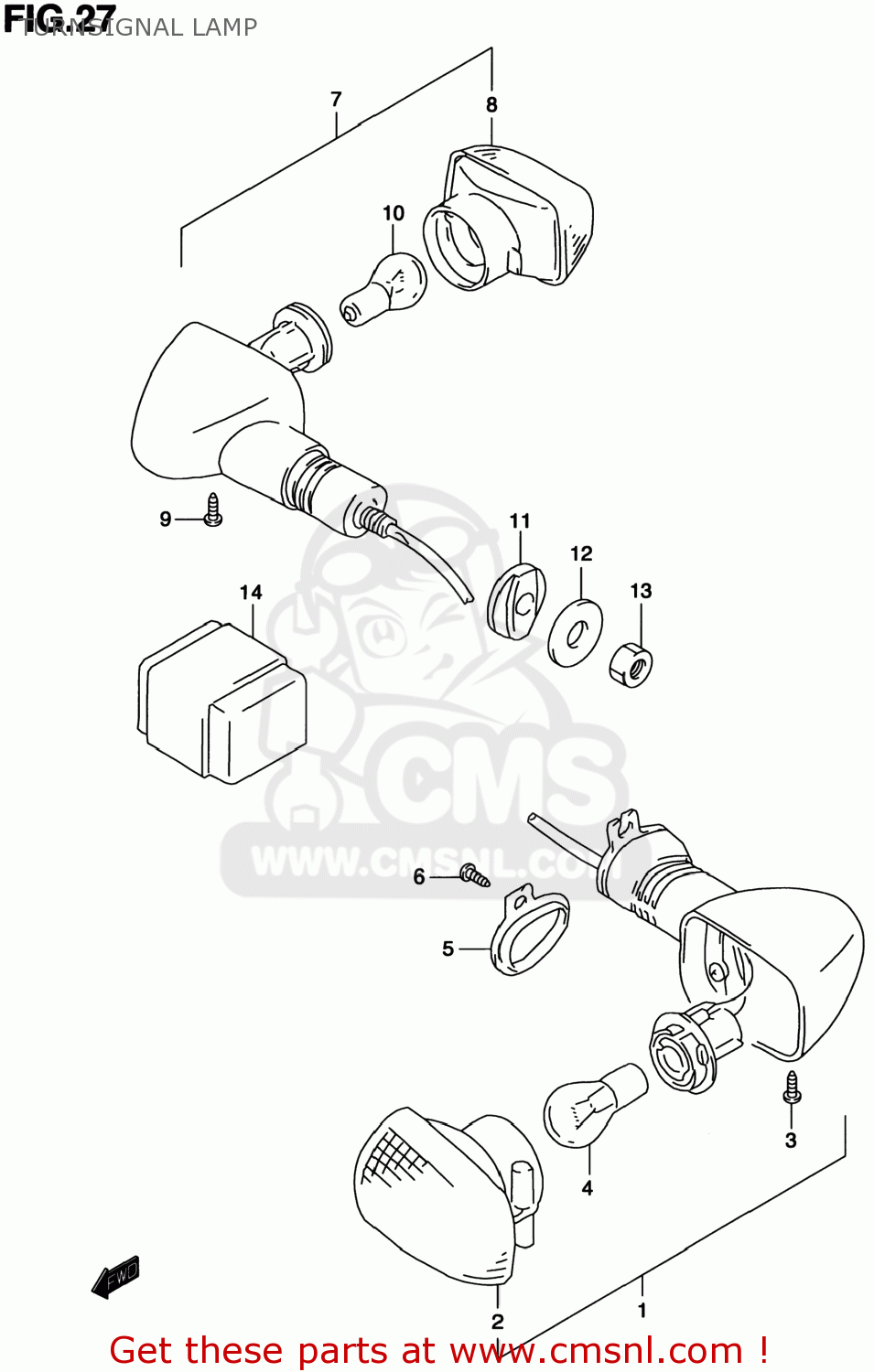

Turnsignal lamp diagram TL1000S 2001 (K1) USA (E03)
TURNSIGNAL LAMP TL1000S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560133E30
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
€ 84.00
1-2
3560233E30
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
€ 84.00
2
3561033E00
ref: 2
LAMP UNIT
€ 31.00
3
0324204123
ref: 3
03242-0412B
SCREW
€ 2.00
4
0947112045
ref: 4
BULB(12V21W)
€ 5.00
5
3562933E00
ref: 5
PLATE,FR TURNSIGNAL LAMP
€ 25.50
6
0351105103
ref: 6
03511-0510A
SCREW
€ 2.00
7-1
3560333E30
ref: 7-1
LAMP ASSY,RR TURNSIGNAL,R
€ 70.50
7-2
3560433E30
ref: 7-2
LAMP ASSY,RR TURNSIGNAL,L
€ 70.50
8
3561033E00
ref: 8
LAMP UNIT
€ 31.00
9
0324204123
ref: 9
03242-0412B
SCREW
€ 2.00
10
0947112045
ref: 10
BULB(12V21W)
€ 5.00
11
3569517C00
ref: 11
SPACER,RR TURNSIGNAL
€ 3.00
12
0916010501
ref: 12
WASHER(10.5X30X2.3)
€ 2.50
13
0831000103
ref: 13
08310-0010A
NUT
€ 2.00
14
3861026E00
ref: 14
RELAY ASSY
€ 47.00
