STEERING STEM (MODEL W/X/Y/K1)

TL1000S 2001 (K1) USA (E03)

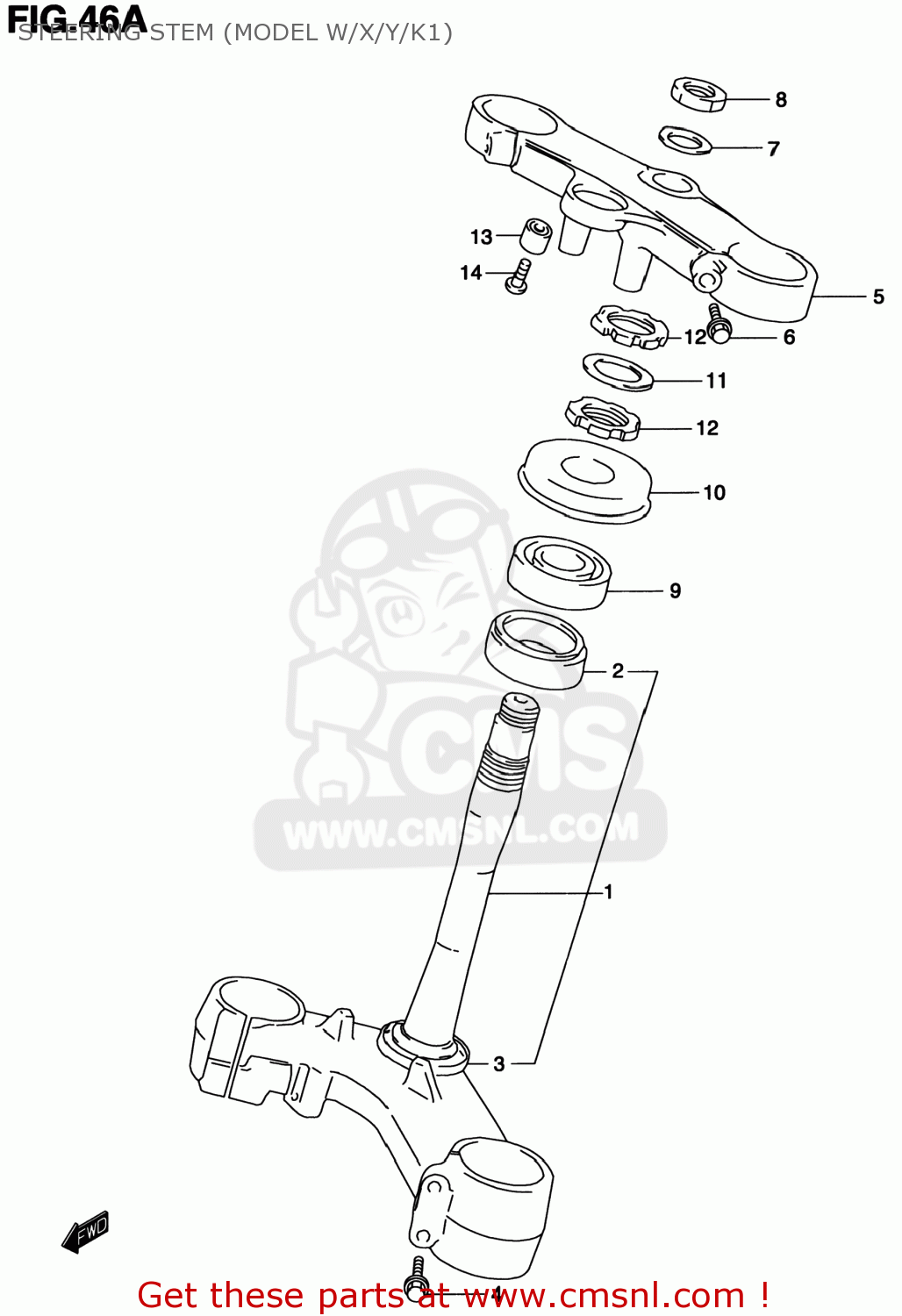

Steering stem (model w/x/y/k1) diagram TL1000S 2001 (K1) USA (E03)

STEERING STEM (MODEL W/X/Y/K1) TL1000S 2001 (K1) USA (E03)

STEERING STEM (MODEL W/X/Y/K1) TL1000S 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141002F00
ref: 1

STEM,STEERING

€ 716.50

2

0926730010
ref: 2

BEARING(30X55X17)

€ 46.50

3

5164412C00
ref: 3

SEAL,STEERING LWR

€ 5.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5131102F10
ref: 5

HEAD,STEERING STEM

€ 345.50

6

0155008357
ref: 6

BOLT

€ 3.50

7

5135627C00
ref: 7

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

8

5135302F00
ref: 8

NUT

€ 26.50

9

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

10

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

11

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

12

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

13

5627802F00
ref: 13

BALANCER,BRACKET UPR

€ 18.50

14

0214206303
ref: 14
02142-0630B

SCREW

€ 2.00
