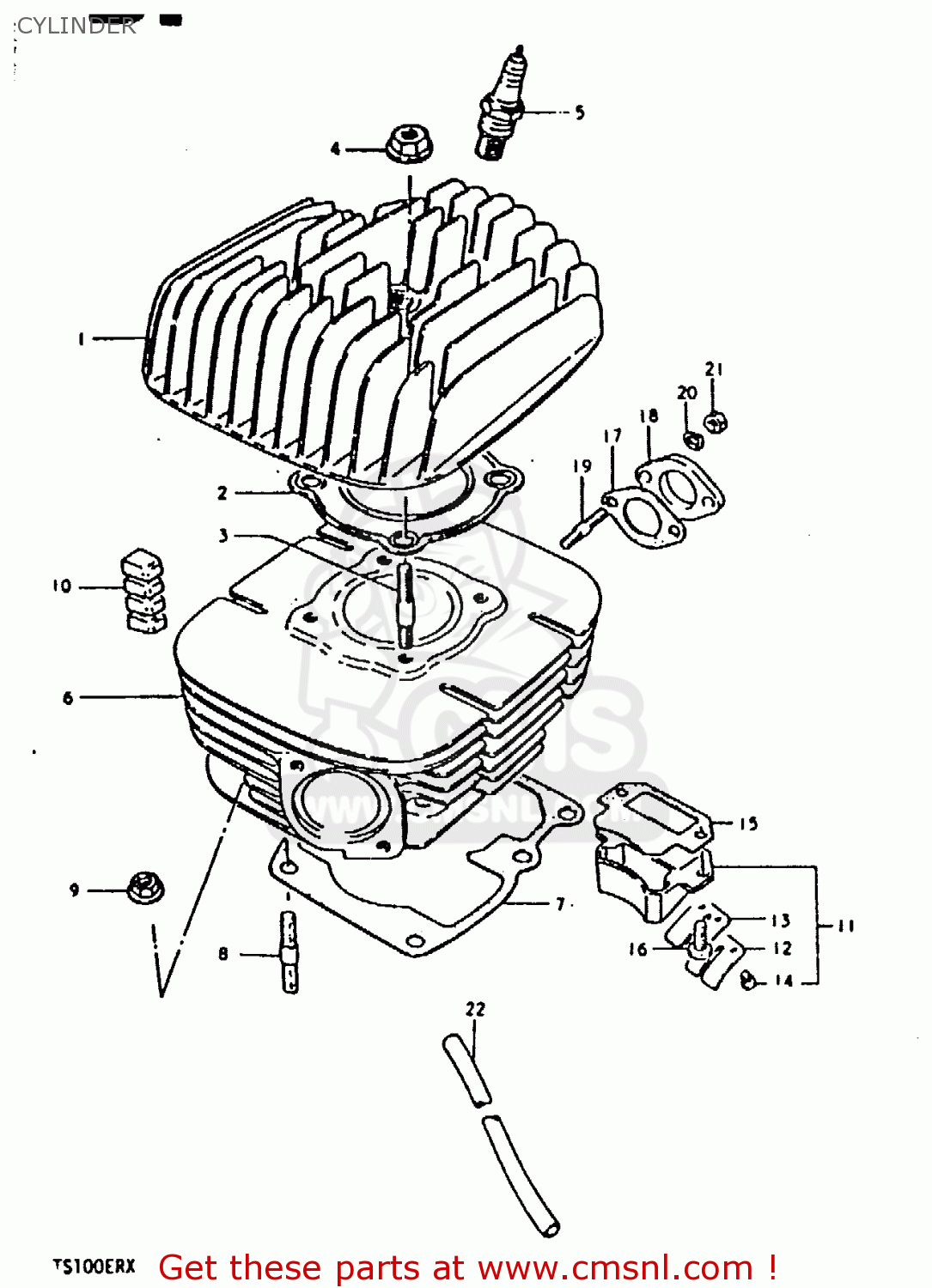

CYLINDER

ref

part #

description

quantity

1

1111148103
ref: 1

HEAD,CYLINDER

€ 79.50

2

1114148120
ref: 2

GASKET,CYLINDER HEAD (MCA)

€ 14.50

3

0142108358
ref: 3

STUD BOLT

€ 2.00

4

0831616088
ref: 4

NUT

€ 2.50

5-1

0948200225
ref: 5-1

SPARK PLUG

€ 3.00

5-2

0948200196
ref: 5-2

SPARK PLUG W24ES-U

€ 3.50

6

1121048101
ref: 6

CYLINDER

€ 2.50

7

1124141300
ref: 7

GASKET,CYLINDER (MCA)

€ 6.00

8

0142108258
ref: 8

STUD 8X25

€ 2.50

9

0831616088
ref: 9

NUT

€ 2.50

10

1125148000
ref: 10

PAD,CYLINDER

€ 6.50

11

1315048011
ref: 11

VALVE ASSEMBLY,REED

€ 133.50

12

1315248010
ref: 12

STOPPER,REED VALVE

€ 6.50

13

1315341110
ref: 13

VALVE,REED

€ 8.00

14

1315419011
ref: 14

SCREW,REED VALVE

€ 1.50

15

1315641100
ref: 15

GASKET,REED VALVE (MCA)

€ 4.50

16

0211206208
ref: 16

SCREW

€ 2.00

17

1312511000
ref: 17

GASKET,CARBURETOR (MCA)

€ 3.00

18

1312948000
ref: 18

INSULATOR,CARBURETOR

€ 9.50

19

0142108308
ref: 19

STUD BOLT

€ 2.00

20

0832121088
ref: 20

LOCK WASHER

€ 2.00

21

0831012088
ref: 21

NUT

€ 2.00

22

0934403019
ref: 22

HOSE

€ 6.50
