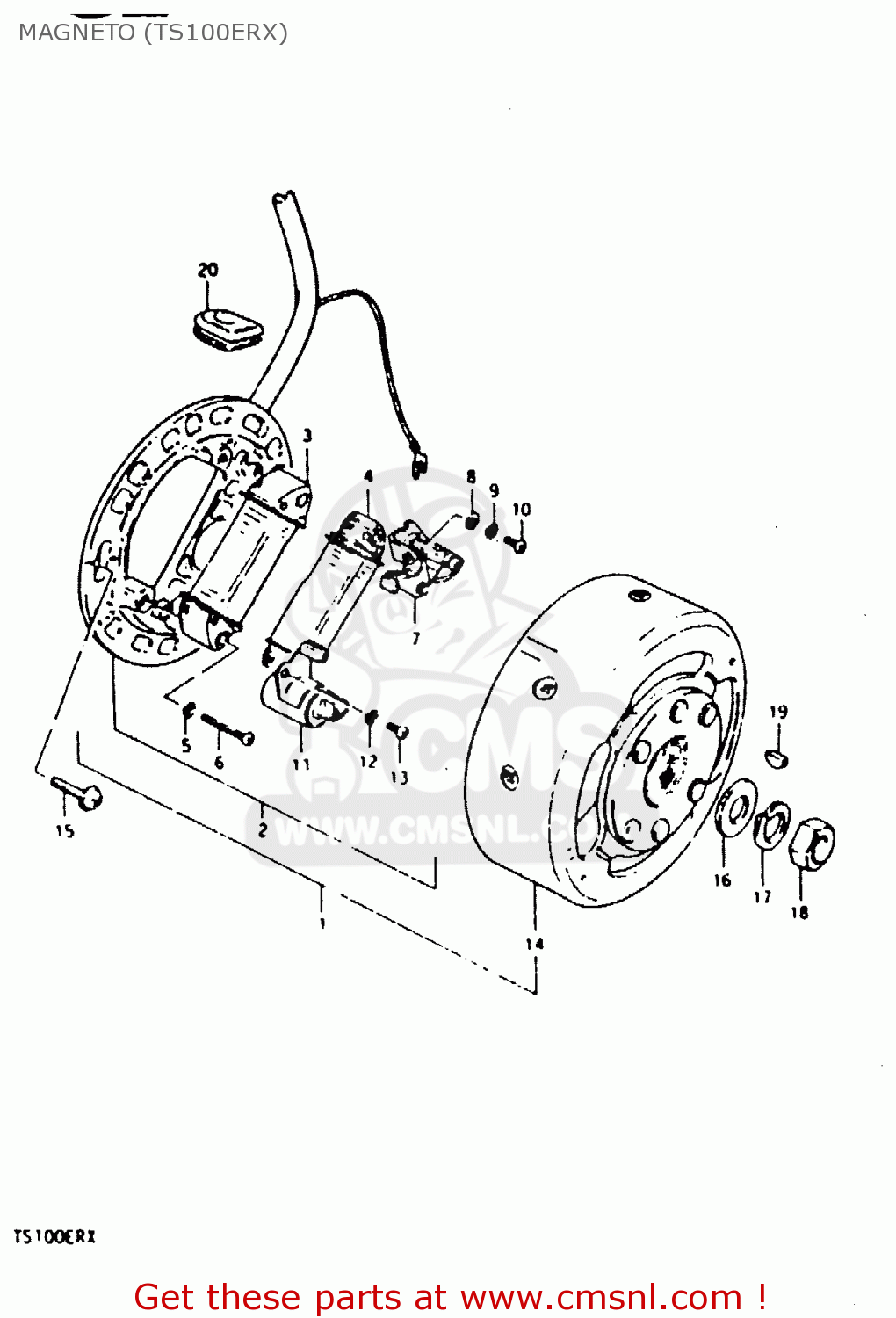

MAGNETO (TS100ERX)

ref

part #

description

quantity

1

3210048030
ref: 1

MAGNETO ASSY

€ 138.50

2

3210148030
ref: 2

STARTER ASSY

€ 138.50

3

3212026410
ref: 3

COIL, LIGHTING

€ 29.00

4

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

5

0832121048
ref: 5

LOCK WASHER

€ 2.00

6

0211204308
ref: 6

SCREW (4X30)

€ 1.50

7

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

8

0832221048
ref: 8

WASHER

€ 2.00

9

0832121048
ref: 9

LOCK WASHER

€ 2.00

10

0912504001
ref: 10

SCREW(4X10)

€ 4.50

11

3234126410
ref: 11

CONDENSER

€ 14.50

12

0832121048
ref: 12

LOCK WASHER

€ 2.00

13

0211204088
ref: 13

SCREW

€ 1.50

14

3210248030
ref: 14

ROTOR

€ 211.50

15

0913905011
ref: 15

SCREW(5X14)

€ 3.00

16

0832221108
ref: 16

WASHER

€ 2.50

17

0832121108
ref: 17

LOCK WASHER

€ 2.00

18

0914010003
ref: 18

NUT (10MM)

€ 3.50

19

0834131039
ref: 19

KEY

€ 2.00

20

0930909007
ref: 20

GROMMET

€ 2.50
