FRONT FORK
TS100ER 1980 (T) (E01 E02 E09 E24 E30)

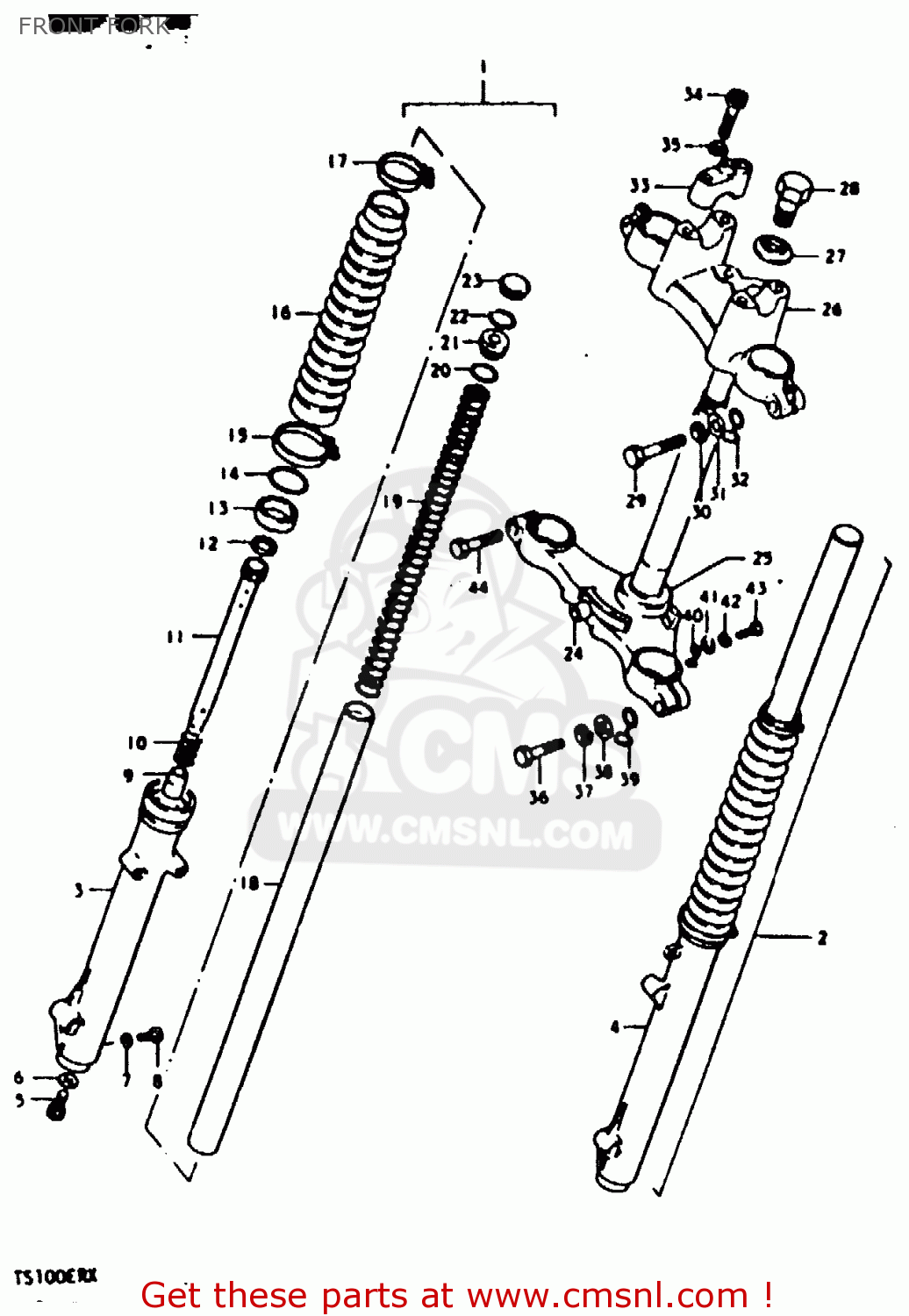

Front fork diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)
FRONT FORK TS100ER 1980 (T) (E01 E02 E09 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
0
5110048530291
ref: 0
MODEL T
DAMPER SET
€ 0.00
0
511004853008C
ref: 0
MODEL X
FORK ASSY, FRONT (CHAMPAGNE GOLD)
€ 0.00
1
5110348530
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 0.00
2
5110448530
ref: 2
DAMPER ASSEMBLY,LEFT
€ 0.00
3
5113148530
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 0.00
4
5114148530
ref: 4
TUBE,FORK,LEFT,OUTER
€ 0.00
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
GASKET (NAS)
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
€ 4.00
8
0910006011
ref: 8
BOLT(6X8)
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
€ 8.50
10
5117748000
ref: 10
SPRING,FORK REBOUND
€ 6.00
11
5114648000
ref: 11
CYLINDER,FRONT FORK
€ 50.00
12
5119648000
ref: 12
RING
€ 5.50
13
5115308030
ref: 13
OIL SEAL,FRONT FORK
€ 11.00
14
5115636030
ref: 14
CIRCLIP,FORK OIL SEAL
€ 2.50
15
0940250306
ref: 15
CLAMP
€ 6.00
16
5157148530
ref: 16
BOOT
€ 34.00
17
5157548530
ref: 17
BAND,FRONT FORK COVER BOOT
€ 3.00
18
5111048530
ref: 18
TUBE,FORK,INNER
€ 0.00
19
5117148530
ref: 19
SPRING,FRONT FORK
€ 0.00
20
5118133131
ref: 20
O RING
€ 5.00
21
5117548500
ref: 21
SEAT,SPRING
€ 9.00
22
5116948500
ref: 22
RING,STOPPER
€ 2.00
23
5118948530
ref: 23
CAP,FRONT FORK
€ 10.00
24
5141048530291
ref: 24
STEM,STEERING
€ 0.00
25
5162133001
ref: 25
RACE,STEERING OUTER LWR
€ 10.00
26-1
5131148530291
ref: 26-1
MODEL T
HEAD,STEERING STEM
€ 0.00
26-2
513114853008C
ref: 26-2
MODEL X
HEAD, STEERING STEM (CHAMPAGNE GOLD)
€ 0.00
27
5135646030
ref: 27
WASHER(10.5X30X2.3)
€ 5.00
28
5135246030
ref: 28
BOLT
€ 6.00
29
5145127431
ref: 29
BOLT
€ 4.50
30
0832121108
ref: 30
LOCK WASHER
€ 2.00
31
0832221108
ref: 31
WASHER
€ 2.50
32
5145548500
ref: 32
CLIP
€ 0.00
33-1
5621148500291
ref: 33-1
MODEL T
HOLDER,HANDLEBAR
€ 20.50
33-2
562114850008C
ref: 33-2
MODEL X
HOLDER, HANDLE (CHAMPAGNE GOLD)
€ 20.50
34
0910608004
ref: 34
BOLT 8X35
€ 4.00
35
0832121088
ref: 35
LOCK WASHER
€ 2.00
36
0110412458
ref: 36
BOLT
€ 5.50
37
0832121128
ref: 37
WASHER,LOCK 12
€ 2.50
38
0832211128
ref: 38
WASHER
€ 2.00
39
5145548510
ref: 39
CLIP
€ 7.00
40
5145248500
ref: 40
CLIP
€ 6.00
41
0832221068
ref: 41
WASHER
€ 2.00
42
0832121068
ref: 42
LOCK WASHER
€ 2.50
43
0211206128
ref: 43
SCREW 6X12
€ 2.00
44
0110412408
ref: 44
BOLT
€ 3.00
