TS100ER 1980 (T) (E01 E02 E09 E24 E30)

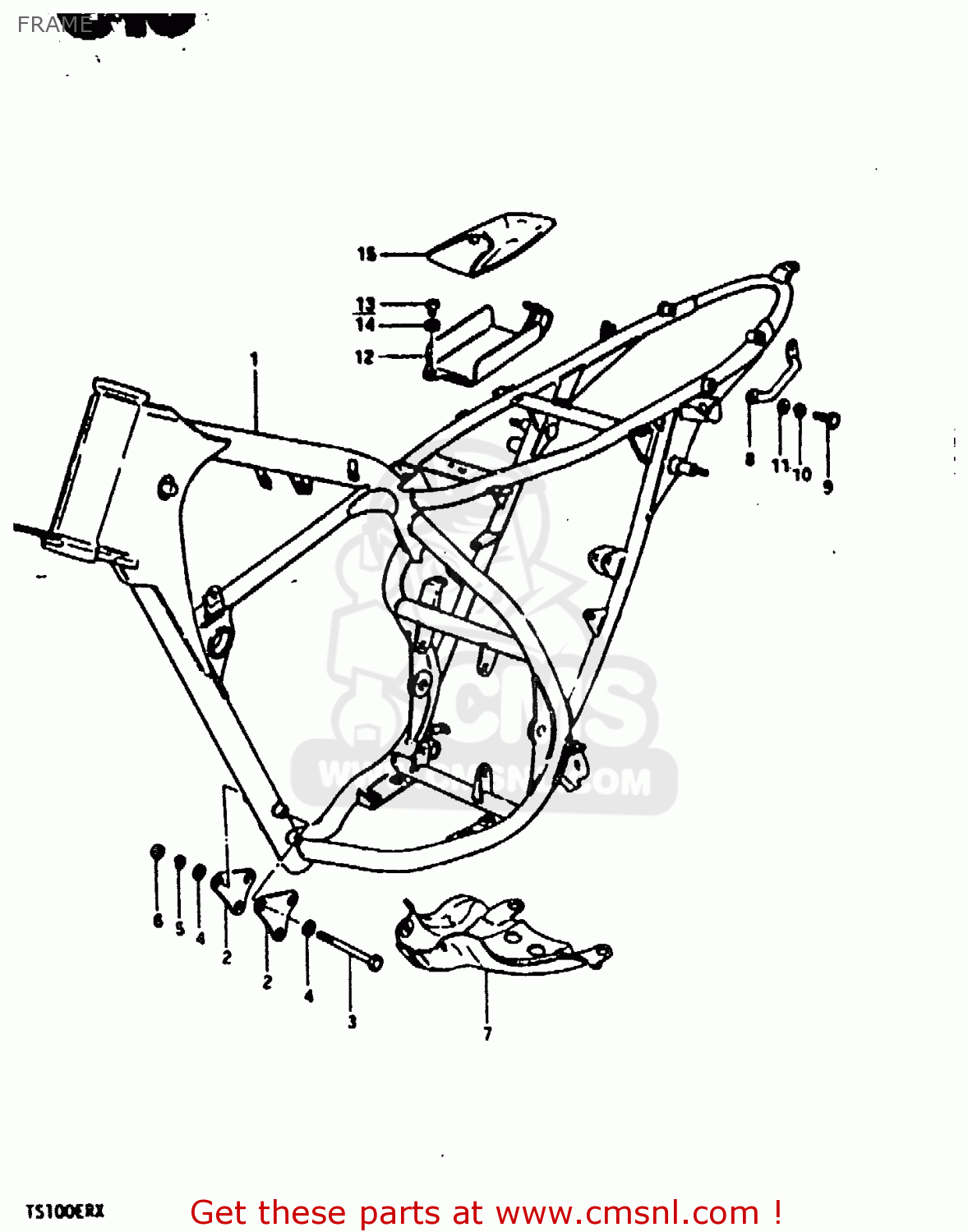

Frame diagram TS100ER 1980 (T) (E01 E02 E09 E24 E30)
FRAME TS100ER 1980 (T) (E01 E02 E09 E24 E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110048501019
ref: 1-1
FRAME
€ 664.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
4199148000
ref: 2-1
PLATE,ENG MTG
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0110708758
ref: 3
BOLT,8X75
€ 3.00
4
0832211088
ref: 4
WASHER
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
€ 2.00
6
0831012088
ref: 6
NUT
€ 2.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
4161148500
ref: 8
GRIP,FRAME HANDLE
€ 35.50
9
0110708168
ref: 9
BOLT
€ 2.00
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0832211088
ref: 11
WASHER
€ 2.00
12
4155029301
ref: 12
HOLDER,TOOL
€ 0.00
13
0211206108
ref: 13
SCREW
€ 1.50
14
0832221068
ref: 14
WASHER
€ 2.00
15
0980000203
ref: 15
*
TOOL SET
€ 47.50
